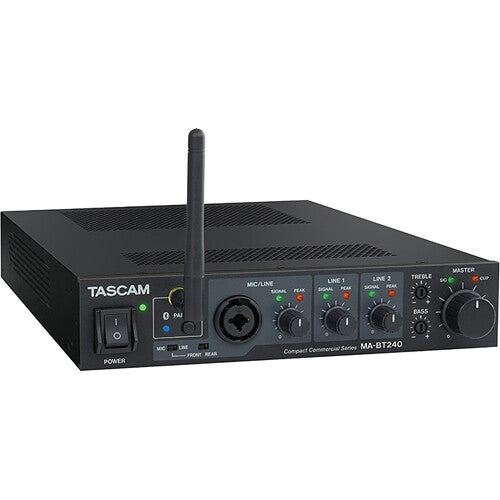

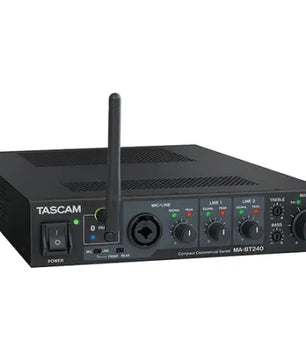

Tascam MA-BT240

Compact Bluetooth Mixer and Amplifier for Commercial Spaces

The TASCAM MA-BT240 is a versatile audio mixer and amplifier, ideal for commercial installations such as schools, restaurants, waiting rooms, and meeting spaces. With its powerful 120W per channel in 2-channel mode or 240W in single-channel mode, it offers reliable performance for both low- and high-impedance speaker systems. Its built-in Bluetooth receiver and compact half-rack design make it easy to integrate into any setup.

TASCAM MA-BT240 Competitive Differences

• High and Low-Impedance Compatibility: Supports 70V/100V high-impedance systems as well as 4-ohm and 8-ohm low-impedance speakers, making it ideal for various audio needs.
• Built-In Bluetooth Receiver: Stream audio wirelessly with stable Bluetooth 5.1 connectivity, allowing seamless integration with modern devices.
• Class-D Amplification: Delivers efficient power with 120W on two channels or 240W on one channel, suitable for moderate-sized commercial spaces.
• Integrated Mixer with Mic/Line Inputs: Includes switchable mic/line input with ducking function, plus two RCA line inputs, allowing easy control of multiple audio sources.
• Space-Saving Design: 1 RU half-rack size is perfect for tight installation spaces and can be rack-mounted using optional accessories.

TASCAM MA-BT240 Description

The TASCAM MA-BT240 offers a powerful solution for commercial audio needs, combining a mixer and amplifier into a compact, user-friendly device. It features a 120W x 2-channel mode for low-impedance systems (4 or 8 ohms) and a 240W single-channel mode for 70V or 100V high-impedance systems, providing flexibility in audio distribution for various applications. With built-in Bluetooth, it allows for easy wireless streaming from mobile devices, and the front-panel antenna ensures a stable connection. This mixer-amplifier comes equipped with a front-panel combo XLR-1/4" input for microphones or line-level sources, along with a ducking feature that automatically lowers background music during announcements. Additional RCA inputs allow connection of external audio sources like media players. The MA-BT240's output includes a high-pass filter and treble/bass EQ controls, enabling users to fine-tune the audio to suit different room acoustics. Its compact design makes it ideal for installation in AV racks, while also fitting neatly on desktops.

MA-BT240 Features

• 120W x 2 channels at 4/8 ohms or 240W x 1 channel at 70V/100V
• Bluetooth 5.1 for wireless audio streaming
• Mic/line input with ducking function for announcements
• Two stereo RCA line inputs for additional audio sources
• High-pass filter and 2-band EQ (bass/treble) on output
• Front-panel mixing controls with signal and peak indicators
• Compact 1 RU half-rack design, rack-mountable with optional kits
• Includes power cable and block cables for easy setup

MA-BT240 Specifications

• Audio I/O: 1 x Combo XLR-1/4" mic/line input, 1 x 4-pin balanced line/mic input, 2 x stereo RCA line inputs
• Output Power: 2 x 120W at 4/8 ohms, 1 x 240W at 70V/100V
• RCA Line Output: +6 dBV max (unbalanced)
• Bluetooth: Version 5.1, range up to 32.8' (10 m)
• Frequency Response: 20 Hz to 20 kHz (Line In to Speaker Out, EQ flat)
• Power Source: 100-120 VAC, 50/60 Hz
• Power Consumption: 58 W (1/8 power), 18 W (idle)
• Dimensions: 8.4" W x 1.7" H x 11.7" D (21.4 cm x 4.4 cm x 29.8 cm)
• Weight: 5.5 lbs (2.5 kg)
• Package Weight: 7.56 lbs
• Box Dimensions: 17.1" L x 11.8" W x 4.3" H

What's In The Box

• TASCAM MA-BT240 Mixer/Amplifier
• Power Cable
• Block Cables
