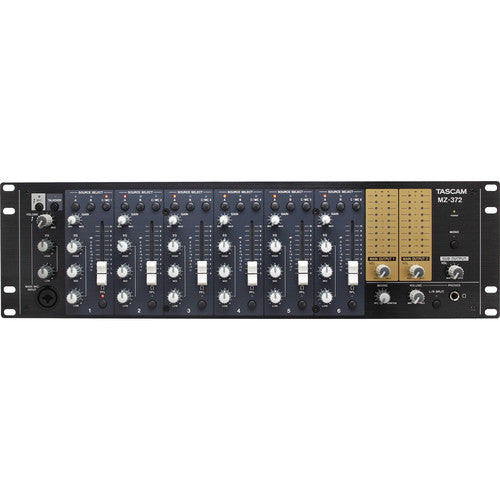

Tascam MZ-372 | 6-Channel Multi-Zone Mixer with 19 Input Sources & Redundant Outputs

Versatile Multi-Zone Mixer for Professional Installations

The TASCAM MZ-372 is a robust multi-channel, multi-zone mixer designed for commercial and professional audio installations in spaces like hotels, restaurants, meeting rooms, schools, and houses of worship. Offering up to 19 input sources and flexible audio routing capabilities, it enables seamless management of music, spoken word, and other audio content. The intuitive front panel controls, including volume sliders, source selection buttons, and EQ adjustments, make it easy to fine-tune the audio output for any environment.

TASCAM MZ-372 Competitive Differences

• 19 Total Input Sources: Includes 12 stereo RCA inputs, 6 mic/line XLR inputs, and a dedicated front-panel combo XLR-1/4" mic input for versatile audio connectivity.
• Two Redundant Zone Outputs: Each output offers balanced XLR and unbalanced RCA connectors, providing flexibility for audio distribution across different zones.
• Phono Preamp Support: Channels 2 and 3 feature switchable phono preamps, making the MZ-372 ideal for installations that require turntable connections.
• Talkover Function for Announcements: Automatically reduces background audio when the microphone is in use, ensuring clear communication during announcements.
• Compact 3 RU Rackmount Design: Saves space while delivering comprehensive audio control, ideal for integrators and AV professionals.

TASCAM MZ-372 Description

The TASCAM MZ-372 is a highly adaptable mixer, engineered for applications requiring independent audio routing and control. With its six input channels, each offering two sets of stereo RCA inputs and a switchable mic/line XLR input, this mixer is capable of handling various audio sources. The unit's front panel features intuitive volume sliders, A/B/C source select switches, gain trim controls, and 3-band EQ for each channel, making adjustments straightforward even for non-technical users. In addition to its versatile input options, the MZ-372 provides two main output channels, each equipped with balanced XLR and unbalanced RCA connectors, ensuring compatibility with a wide range of audio systems. A front-panel combo XLR-1/4" mic input includes a 2-band EQ and a Talkover function, making it easy to manage announcements without disrupting the overall audio flow. The MZ-372 also offers a dedicated monitor output and subwoofer output, allowing precise control over booth monitoring and low-frequency content.

MZ-372 Features

• 6 input channels with dual stereo RCA inputs and mic/line XLR connectors
• 19 total input sources for comprehensive audio management
• 2 redundant zone outputs with XLR balanced and RCA unbalanced connectors
• Phono preamp support on Channels 2 and 3 for turntable connections
• Front mic input with 2-band EQ and automatic Talkover function
• 3-band EQ and gain trim for each input channel
• Dedicated monitor and subwoofer outputs for enhanced audio control
• Compact 3 RU rackmount size for easy installation in AV racks
• Includes power supply and AC adapter

MZ-372 Specifications

• Mic Inputs: 6 x XLR 3-pin (Switchable mic/line), 1 x Combo XLR-1/4" mic input
• Line Inputs: 12 x 2RCA TS pairs, 3 switchable to phono
• Zone Outputs: 4 x XLR 3-pin (Balanced), 2 x 2RCA TS (Unbalanced)
• Monitor Output: 1 x 2RCA TS
• Subwoofer Output: 1 x 2RCA TS
• Headphone Output: 1 x 1/4" TRS
• Power Source: AC Adapter (Included), 100-240 VAC, 50/60 Hz
• Power Consumption: 35 W
• Dimensions: 19" W x 5.2" H x 3.7" D (482 mm x 132 mm x 93.2 mm)
• Weight: 7.1 lbs (3.2 kg)
• Package Weight: 8.25 lbs
• Box Dimensions: 20.4" L x 8.5" W x 5.7" H

What's In The Box

• TASCAM MZ-372 Mixer
• Power Supply and AC Adapter
