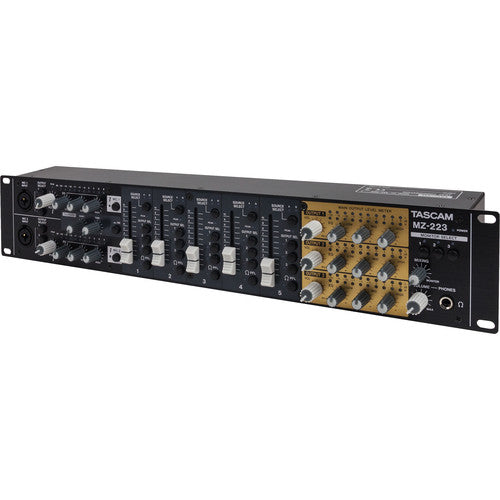

Tascam MZ-223 | Multi-Zone Mixer with 5 Input Channels & 3 Zone Outputs

Industrial-Grade Multi-Zone Audio Mixer for Professional Installations

The TASCAM MZ-223 is a powerful multi-channel, multi-zone mixer ideal for professional audio installations in moderate-sized venues like hotels, restaurants, meeting rooms, schools, and houses of worship. With its ability to independently route audio to three different zones, it is perfect for managing various audio sources such as music, microphones, and even turntables with ease.

TASCAM MZ-223 Competitive Differences

• Five Input Channels with Dual RCA Inputs: Each input channel is equipped with two sets of stereo RCA inputs, making it easy to connect various audio sources.
• Three Independent Zone Outputs: Offers both balanced XLR and unbalanced RCA connectors, ensuring flexible output options for professional audio setups.
• Phono Preamp Support: Channels 1 and 2 include switchable phono preamps for connecting turntables directly.
• Talkover Function: Automatically reduces the volume of background music when a microphone is in use, providing clear audio for announcements.
• 2 RU Rackmount Design: Compact and easy to install in standard AV racks, saving valuable space while delivering high-quality sound control.

TASCAM MZ-223 Description

The TASCAM MZ-223 is an industrial-grade audio mixer, designed to offer precise control over audio distribution in commercial and professional environments. It features three independent main outputs that allow audio to be directed to different zones, each with separate volume and 3-band EQ controls for optimal sound management. This mixer is particularly well-suited for environments where customized audio routing is essential, such as hotels, restaurants, or conference rooms. With five input channels, each equipped with two sets of stereo RCA pairs, the MZ-223 is capable of connecting a variety of audio sources, including AV equipment, music players, and turntables. The front panel provides intuitive control with volume sliders, A/B source selection, and output routing buttons, making it simple to operate even for users with minimal technical experience. Dual microphone inputs with combo XLR-1/4" connectors and dedicated EQ further enhance the MZ-223’s versatility, making it perfect for paging, announcements, and presentations.

MZ-223 Features

• 5 input channels with dual stereo RCA pairs for versatile connectivity
• 3 independent zone outputs with XLR balanced and unbalanced RCA connectors
• Phono preamp support on Channels 1 and 2 for direct turntable connection
• Dual microphone inputs with 3-band EQ and volume control
• Talkover function for automatic background music attenuation during announcements
• 3-band EQ for each output channel for precise audio adjustments
• Compact 2 RU rackmount size for easy installation
• Front-panel volume sliders and source selection buttons for intuitive control
• Dedicated headphone output for monitoring
• Includes power supply and AC adapter

MZ-223 Specifications

• Mic Inputs: 2 x Combo XLR-1/4" 3-Pin
• Line Inputs: 10 x 2RCA TS (Unbalanced)
• Zone Outputs: 6 x XLR 3-Pin (Balanced), 3 x 2RCA TS (Unbalanced)
• Monitor Output: 1 x 2RCA TS
• Headphone Output: 1 x 1/4" TRS
• Power Source: AC Adapter (Included), 100-240 VAC, 50/60 Hz
• Power Consumption: 35 W
• Dimensions: 19" W x 5.2" H x 3.5" D (48.3 cm x 13.2 cm x 8.9 cm)
• Weight: 5.5 lbs (2.5 kg)
• Package Weight: 6.8 lbs
• Box Dimensions: 20.3" L x 6.5" W x 5.9" H

What's In The Box

• TASCAM MZ-223 Mixer
• Power Supply and AC Adapter
