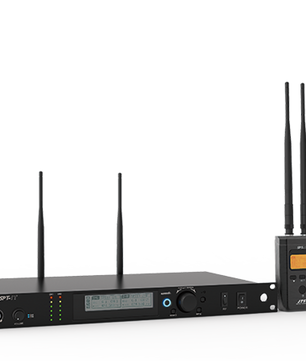

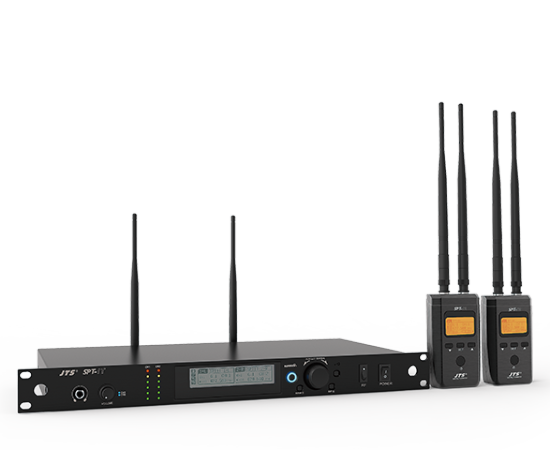

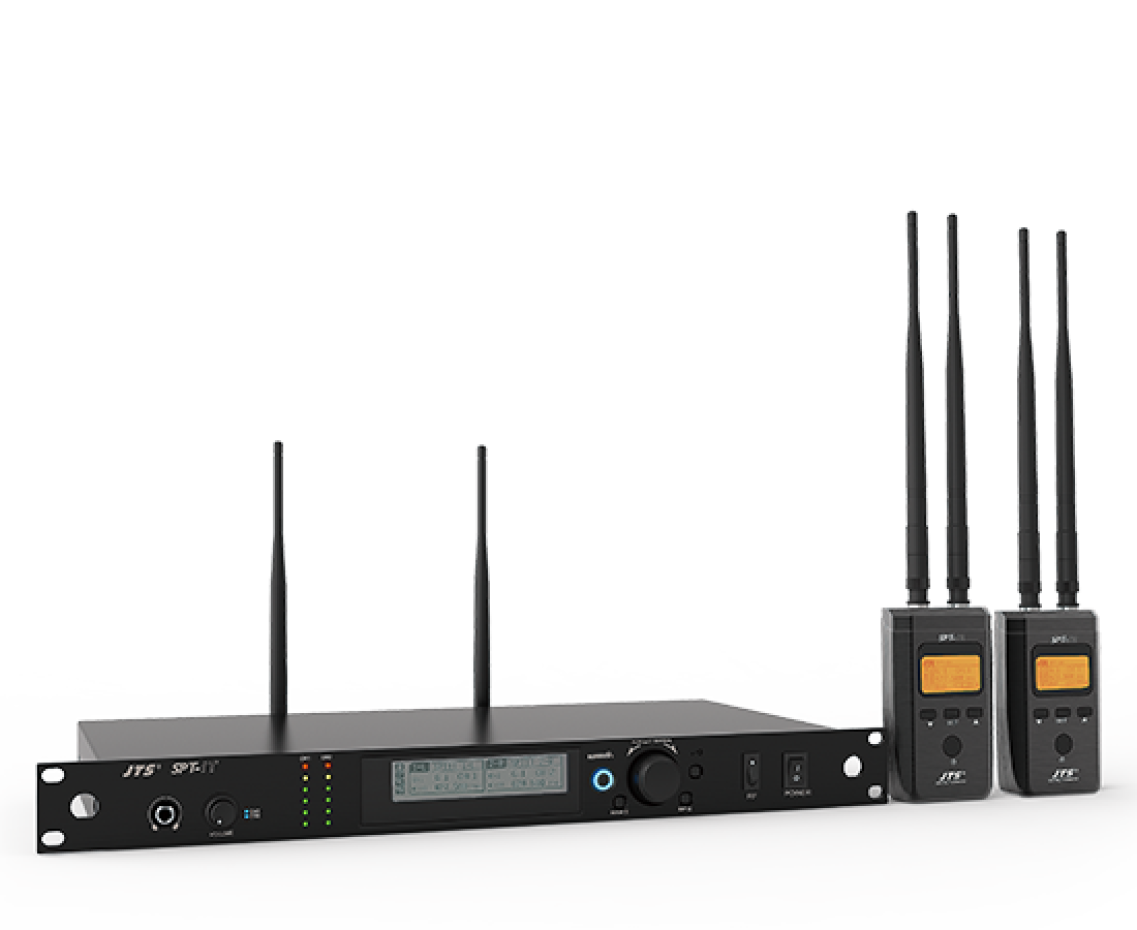

JTS SPT-1R/SPT-1T System (470-506 MHz) | Wireless Audio Transmitter Pack

JTS SPT-1R/SPT-1T System (470-506 MHz) | Wireless Audio Transmitter Pack

$1,467.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

SPT-1R/SPT-1T System
Dual-Channel UHF Transmission and True Diversity Reception
With UHF true diversity technology, receiver 36 MHz switching bandwidth and 6 preset groups of up to 1441 selectable channels, the SPT-1R/1T wireless audio system is your perfect partner for mission critical applications.

Hot Features :

* Obviate Audio Delay/Latency
* Eliminate Complex Cable Runs
* Fast Setup/Teardown with Great Installation Flexibility
* Independent Audio Channel Control

Your best and state-of-the-art wireless solution that eliminates the need for speaker cabling and audio latency without any compromise in sound quality.

SPECIFICATIONS

SPT-1R
Frequency Oscillation Phase-Locked Loop, PLL
Carrier Frequency 470~960 MHz
Number of Channels 2 Channels
Frequency Matching 2.4GHz RF
Antenna Selection True Diversity
Signal to Noise Ratio (S/N) >106dB(A)
Total Harmonic Distortion (T.H.D) <0.5%@1KHz
Reception Sensitivity -95dBm,S/N>80dB
Mirror Rejection Ratio >80 dB
General Frequency Response 50Hz~18KHz±2dB
Antenna Connector BNC Female
Display LCD
Functions Displayed Group, Channel, Frequency, Antenna A/B, AF Indication, RF Indication, Remoset ID, Delay Time (distance)
Controls Power Switch, Group, Channel, Frequency, Reception Sensitivity, Key Lock, Delay Time, Display Settings, Language
Audio Output Level (MAX) Mini XLR Jack：+10dBu(Line)、-10dBu(MIC)
Audio Output Impedance 600Ω
Mute Noise Mute and Pilot Tone
Output Port Balanced Mini XLR
Power DCV INPUT 12V/0.5A
Dimensions 365mm(L) x 70mm(W) x 30mm(H)
Remark Specifications provided above may be slightly different from the product without further notice.

SPT-1T
Frequency Oscillation Phase-Locked Loop, PLL
Carrier Frequency 470~960 MHz
Frequency Matching 2.4GHz RF
RF Power Output 10mW/50mW (according to local regulations)
RF Stability <±10KHz＠Fc
Modulation Frequency Deviation ±48KHz
Spurious Emissions <-50dBc
LCD Display Group, Channel, Frequency, Mute, Remoset ID, Volume
Controls Power, Group, Channel, Frequency, Transmitted Power, Key Lock
Dimension 200mm(L) x 480mm(W) x 46mm(H)
Remark Specifications provided above may be slightly different from the product without further notice.
