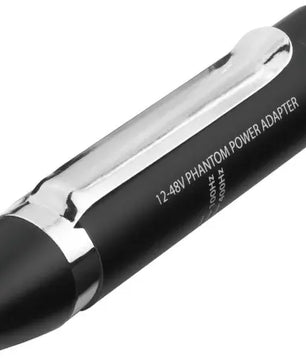

Compact Phantom Power Adapter for Miniature Condenser Microphones

The JTS MA-500 is a reliable phantom power adapter designed for miniature condenser microphones. It ensures consistent performance by supplying power through a 4-pin mini XLR connector. This adapter is compatible with JTS CM series microphones and select CX series models, making it ideal for studio, broadcast, and live sound applications.

JTS MA-500 Competitive Differences

Compatible with CM and select CX series condenser microphones.
Supports 12V to 48V phantom power from various devices.
Compact and lightweight at only 40 grams for easy portability.
Low-cut filter with two settings for reduced background noise.
Integrated PAD switch (-10dB) for managing high sound pressure levels.

JTS MA-500 Description

The JTS MA-500 phantom power adapter enhances the versatility of your miniature condenser microphones. Its 4-pin mini XLR input and standard XLR output provide seamless integration into professional audio setups. With its wide frequency response from 30 Hz to 20 kHz and ultra-low total harmonic distortion (THD) of less than 0.045% at 1 kHz, the MA-500 ensures clear and natural sound transmission. The integrated PAD switch prevents signal overload, while the low-cut filter reduces unwanted low-frequency noise, making it perfect for demanding recording environments.

MA-500 Features

4-pin Mini XLR microphone input
XLR male output
Supports phantom power from 12V to 48V
-10dB PAD for managing loud signals
Low-cut filter at 100Hz (-6dB) and 400Hz (-4dB)
Wide frequency response: 30 Hz to 20,000 Hz
Impedance: 220Ω
Signal-to-noise ratio (S/N): >95 dB
Total Harmonic Distortion (T.H.D.): <0.045% @ 1kHz -50dB

MA-500 Specifications

Microphone Input: 4P Mini XLR (Male)
Output: XLR (Male)
Phantom Power: 12~48V
PAD: -10dB
Low Cut Filter:
- 100 Hz (-6dB)
- 400 Hz (-4dB)
Frequency Response: 30 Hz – 20,000 Hz
Impedance: 220Ω
Total Harmonic Distortion (T.H.D.): <0.045% @ 1kHz -50dB
Signal-to-Noise Ratio (S/N): >95 dB
Weight: 40 grams (1.41 oz)
Dimensions: Ø20mm x 84.5mm (H) (Ø0.79in x 3.33in)
