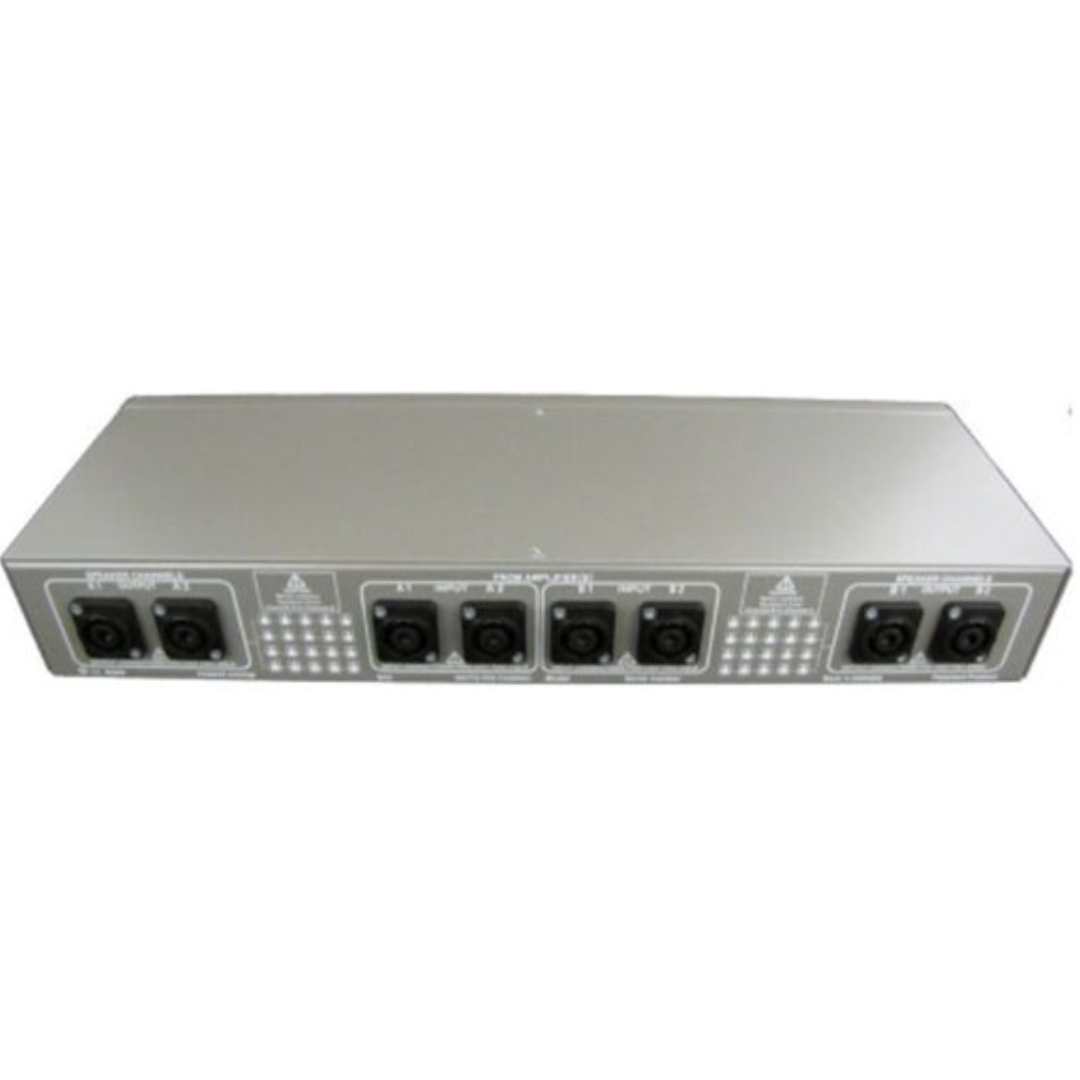

Zero Ohm ZOHM-2K-4 | 2000W/Channel 4-Ch Passive Interface | Parallel Speaker Load at Sub-1Ω

Zero Ohm ZOHM-2K-4 | 2000W/Channel 4-Ch Passive Interface | Parallel Speaker Load at Sub-1Ω

$1,964.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Passive Loudspeaker Distribution System

The Zero Ohm ZOHM-2K-4 is a 4-channel passive interface designed to connect any amplifier to multiple loudspeakers — regardless of impedance — without concern for load balancing or cable length. It eliminates the need for traditional transformer-based systems while preserving full-range audio fidelity and safe, reliable distribution at ultra-low impedances.

Zero Ohm ZOHM-2K-4 Competitive Differences

Four 2000W channels with ultra-low impedance tolerance
Operates without transformers — supports sub-1Ω speaker loads

Zero Ohm ZOHM-2K-4 Description

Also known as the “2K-4 Renegade,” the ZOHM-2K-4 provides powerful, flexible, and scalable speaker distribution without the typical load limitations found in traditional audio systems. It enables parallel wiring of multiple loudspeakers across four independent channels, all while maintaining phase consistency and delivering clean, full-range audio from 20Hz to 20kHz. Whether you're designing a complex multi-zone audio installation or need long-distance coverage without transformers, the ZOHM-2K-4 is purpose-built to handle it — compatible with speaker loads as low as 0.1 ohm and supporting 2, 4, 8, or 16 ohm systems. Built in a rugged 2RU chassis with Neutrik NL4 connectors, it integrates seamlessly into pro audio racks for touring, installation, or fixed venue use. The Zero Ohm ZOHM-2K-4 is an ideal solution for integrators working in stadiums, arenas, houses of worship, and other environments requiring distributed sound with minimal infrastructure and maximum audio integrity.

Model Features

4-channel passive system with 2000W per channel handling
Zero Ohm functionality — safely supports sub-1Ω parallel loads
No need for 70V/100V transformers or impedance matching
Compatible with 2Ω, 4Ω, 8Ω, and 16Ω speaker systems
Full-range frequency response: 20Hz – 20kHz
Maintains output phase alignment across all amplifiers

Model Specifications

Max Power Handling: 2000W per channel
Frequency Response: 20Hz – 20kHz
Min. Output Impedance: 0.1 Ohms
Input Connectors: Neutrik NL4
Input Pin-Outs:
- Ch 1 Input 1A: Pin 1+ / 1−
- Ch 2 Input 2A: Pin 2+ / 2−
- Ch 3 Input 1B: Pin 2+ / 2−
- Ch 4 Input 2B: Pin 1+ / 1−
Output Pin-Outs:
- Ch 1 Output 1A: Pin 1+ / 1−
- Ch 2 Output 2A: Pin 2+ / 2−
- Ch 3 Output 1B: Pin 2+ / 2−
- Ch 4 Output 2B: Pin 1+ / 1−
Dimensions (H x W x D): 65.1 x 479.4 x 149.2 mm (with rack ears)
Weight: 5 kg
Shipping Weight: 5.5 kg
Country of Origin: Canada

What's In The Box

Main unit
Rack ears (pre-installed)
Quick start guide
