15-inch / 1-inch - 1000 Watts
Introducing Yorkville Sound's new line of high quality & affordable powered cabinets. The YXL Series is poised to uphold Yorkville's reputation for great sound, reliability and durability.
Features
1000 Watts (Peak) 500 Watts (Program)
15-inch woofer with 2.5-inch voice coil
3 Channels plus Master level
1-inch compression driver
90° x 40° HF dispersion
Polypropelene cabinet construction
Bluetooth streaming
3 performance modes (Concert, Club, Monitor)
Overview

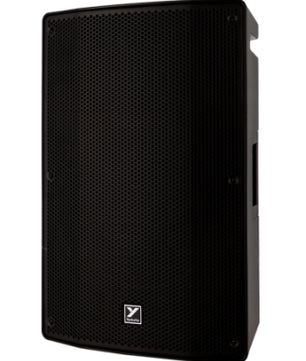

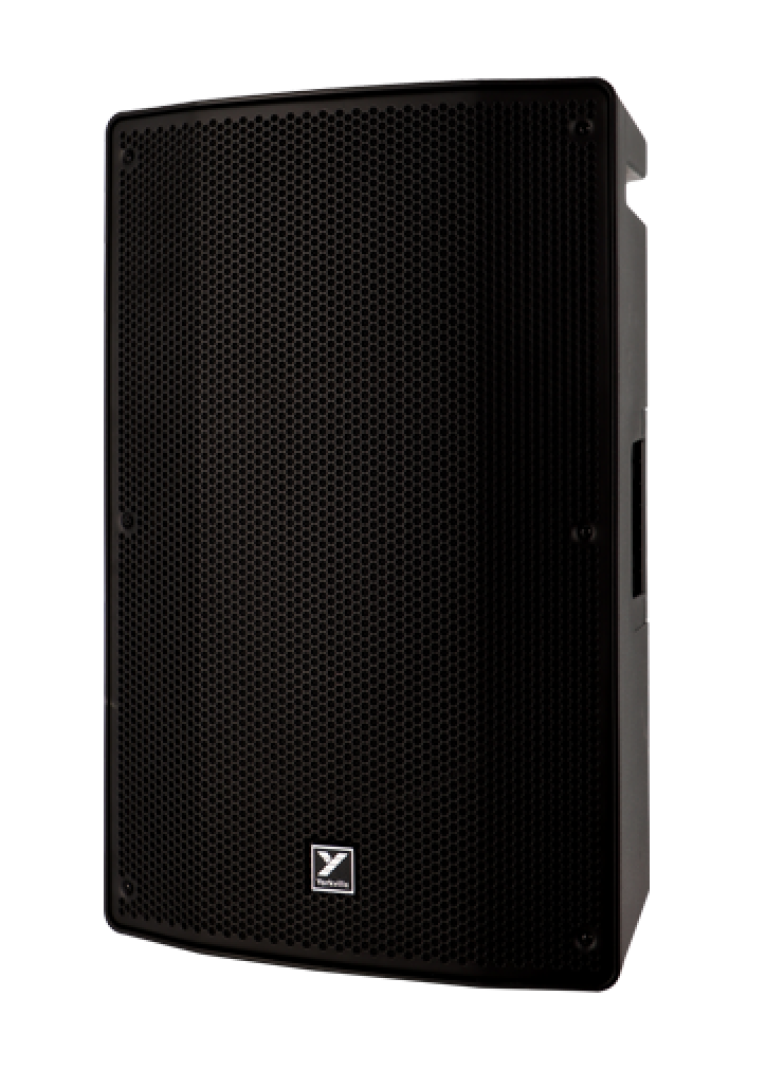

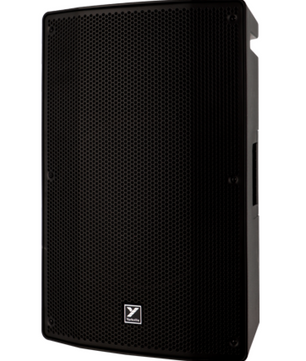

The YXL cabinets use a single driver and 90 x 60 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.
Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.
Specifications
| System Type |
Active Loudspeaker |
| Active or Passive |
Active |
| Power Rating (Watts) |
500 Watts Program (1000 Watts Peak) |
| Max SPL (dB) |
127dB Continuous |
| Frequency Response (Hz +/- 3dB) |
45 - 16k (Hz +/-3dB) |
| Dispersion (°H x °V) |
90 x 40 |
| Crossover Frequency (Hz) |
1.6kHz |
| HF Horn |
Integrated into Baffle |
| LF Driver(s) |
15-inch (2.5-inch voice coil) |
| LF Power Rating(Watts) |
450 Watts Program (900 Watts Peak) |
| HF Power Amplifier (Watts) |
50 Watts Program (100 Watts Peak) |
| HF Amplifier Type |
Class A/B |
| LF Amplifier Type |
Class D |
| Cooling Scheme |
Speed controlled fan |
| Power Cable |
Yes |
| Power Switch |
Yes |

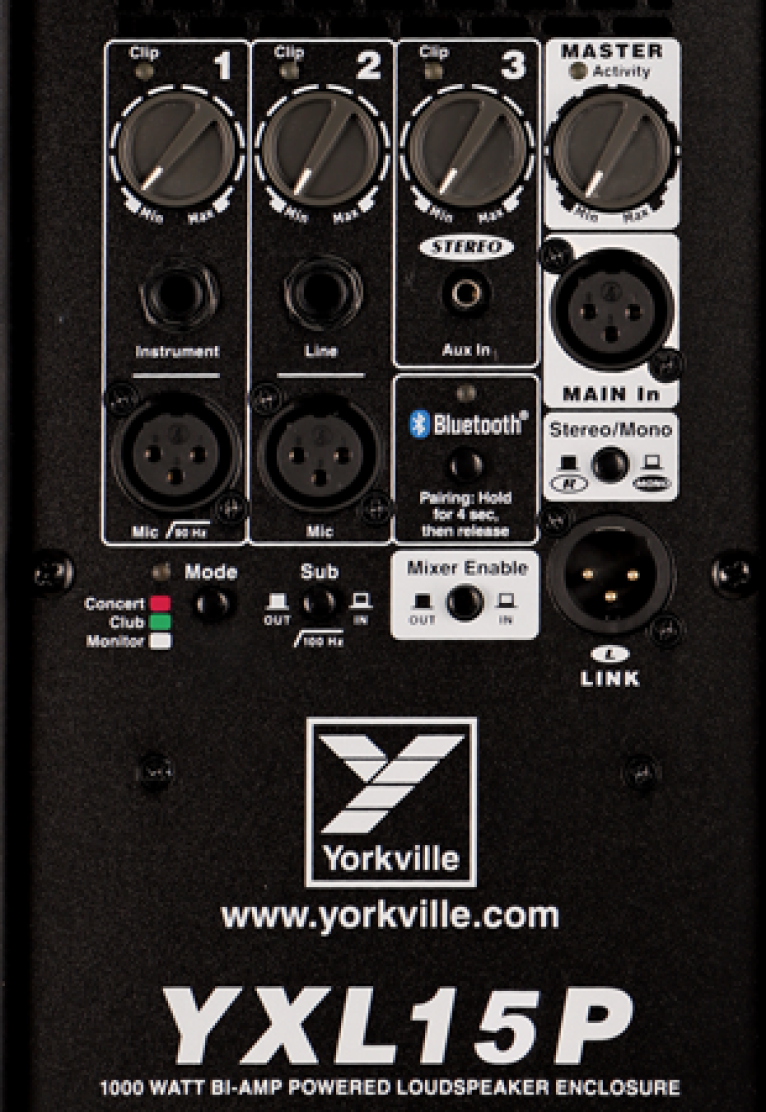

| Mixer Controls |
3 recessed dial controls |
| Level Controls |
x3 Chanels + Master |
| EQ Controls |
Push button select, Concert, Club, Monitor |
| Limiter |
Multiband excursion, RMS, rail |
| Other Controls / Features |
100 Hz HP with Sub, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming |
| Feet |
Rubber |
| Bar Handles |
2 x Side / 1 x Back |
| Flying Hardware |
2 (Top), 1 (Pullback) |
| Optional Flying Hardware |
Yes |
| Enclosure Materials |
Polypropelene, Metal grille |
| Baffle Material |
Polypropylene |
| Grille |
Powder Coated Steel with Grille Cloth |
| Other Details |
Rubber feet on bottom and side with the monitor Wedge |
| Dimensions (DWH xbackW, inches) |
14.75 x 17 x 27.375 |
| Dimensions (DWH xbackW, cm) |
37.5 x 43.18 x 70.4 |
| Weight (lbs/kg) |
45 / 20.4 |
