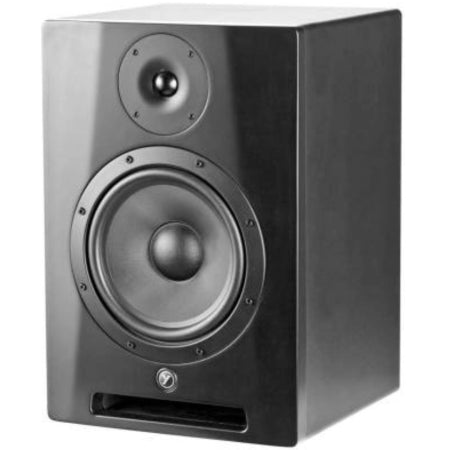

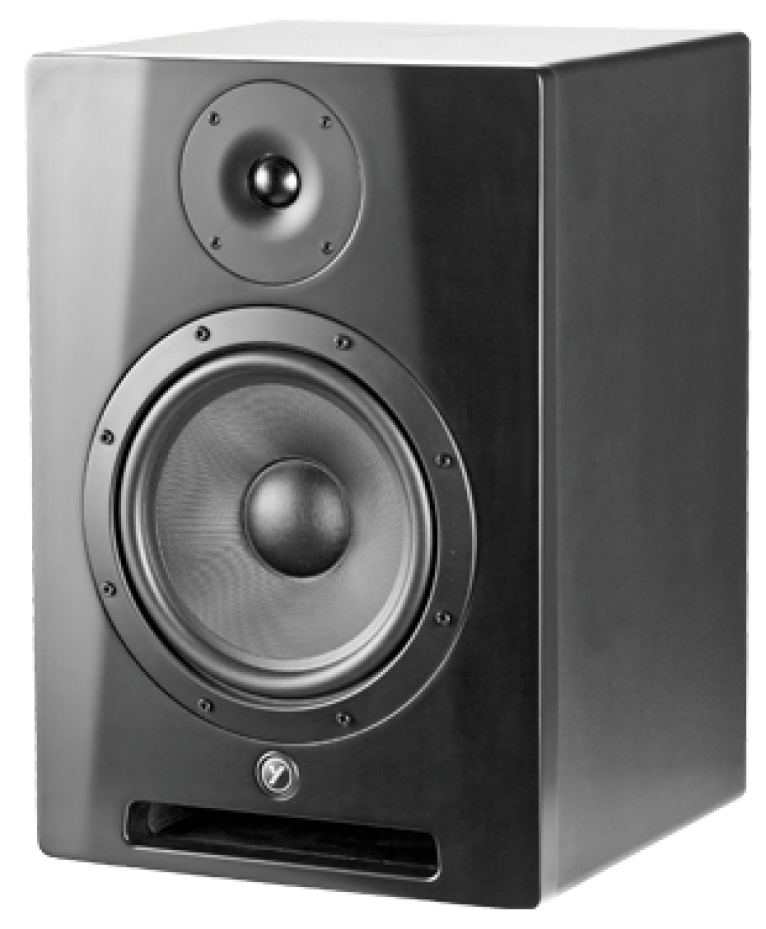

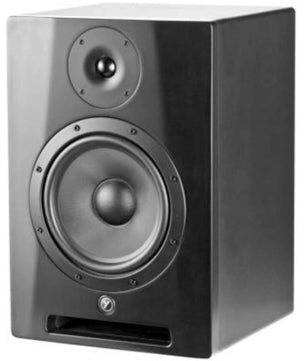

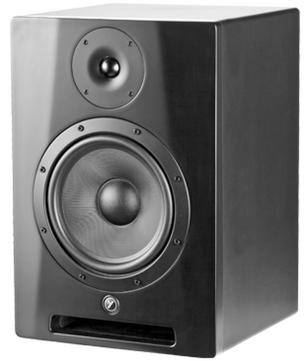

Yorkville YSM8

The Yorkville YSM8 delivers unmatched clarity and fierce bottom end. The 8-inch woofer and 1-inch soft dome tweeter deliver precise reproduction and a large sweet spot for listening in larger spaces and at higher volume. A solid ¾-inch MDF cabinet with reinforced bracing reduces rumble and the contoured baffle virtually eliminates cabinet self-interference. The front facing port design solves the issue of bass coupling with back walls and corners in smaller studio environments and further enhances bottom end response at higher listening levels.

Compatible with virtually any source, the Yorkville YSM8 has a widely variable input trim control for the balanced XLR / ¼-inch combi-jack input. Four position high and low frequency trim controls (at -2, -1, 0 and +1.5dB) allow user adjustable EQ contour to compensate for speaker placement in less than perfect listening spaces.

The YSM8 is designed for professional studio applications and for punishing listening environments where the widest possible sweet spot and higher volumes are required.

Features:
Reproduces source material with near pinpoint accuracy and detail
Contoured MDF baffle engineered to minimize front face reflections
Front facing port design eliminates bass coupling with back walls and corners in imperfect listening environments
Improved phase response provides a wider 'sweet spot' in the listening position
Strategic bracing and ample internal dampening eliminates unwanted low frequency rumble
Biamplified Power Module (75 watts woofer / 20 watts tweeter)
Custom designed soft dome tweeter
High quality low frequency 8-inch woofer
Rock-solid 3/4-inch MDF cabinet construction

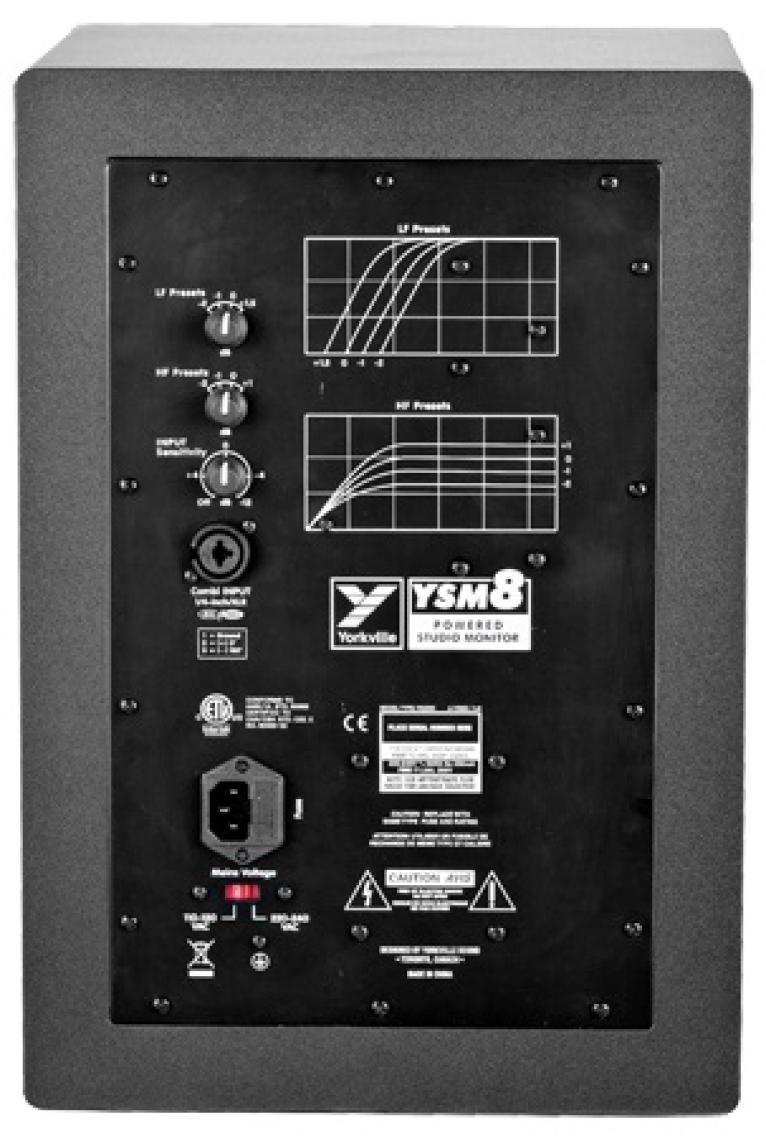

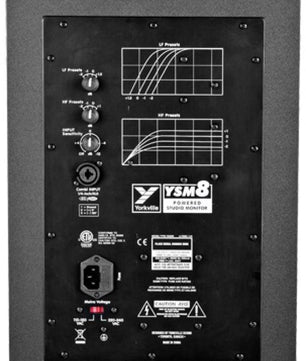

XLR and ¼-inch TRS balanced inputs
4-position high and low frequency trim controls to optimize response for recording space
Front mounted power switch for added convenience

Specifications:
System Type 2-Way Active Studio Monitor
Active or Passive Active
Program Power (Watts) 95 Watts
Biamp Operation Only Yes (internal)
Max SPL (dB) 105dB
Frequency Response (Hz +/- 3db) 45Hz-20kHz
Crossover Frequency (Hz) 2.4 kHz
Driver Configuration 8-inch Composite Cone
HF Driver(s) Neo Soft Dome Tweeter
HF Program Power (Watts) 20 Watts
LF Program Power (Watts) 75 Watts
LF Protection Thermal / Current Limit
HF Distortion 0.08% THD
LF Distortion 0.02% THD
Inputs Combi-Jack
Other Controls / Features Input Gain, 4-position High Frequency Contour (-2,-1, 0,+1dB) and 4-position Low Frequency Trim (-2,-1, 0,+1.5dB).
Enclosure Materials MDF
Baffle Material MDF
Port(s) Yes - Front
Dimensions (DWH xbackW, inches) 10.8x 10.5x16.5
Dimensions (DWH xbackW, cm) 27 x 25 x 42
Weight (lbs/kg) 28/12.7
