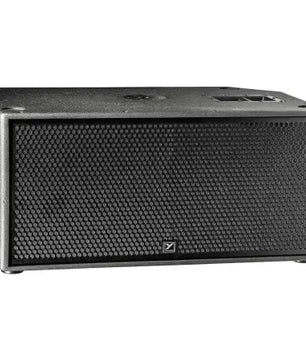

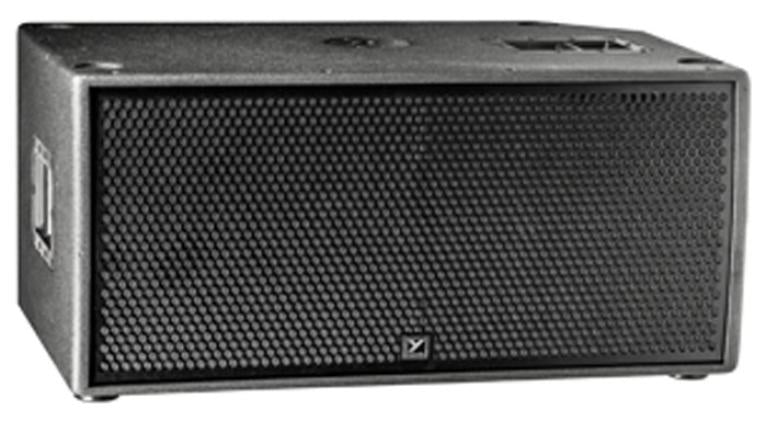

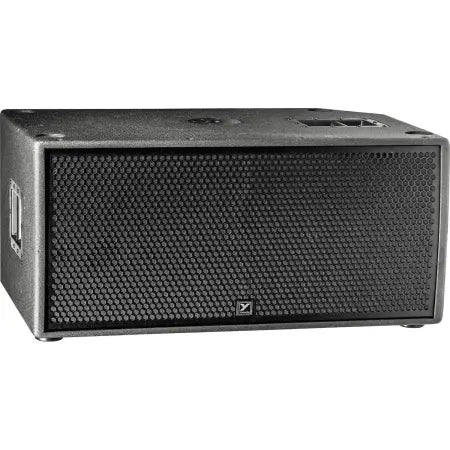

Yorkville PSA2 S (Yorkville PSA-2S)
Dual 15-inch - 2400 watts
Features
High Performance Active Subwoofer
Dual 15-inch Drivers in Bass Reflex Cabinet
Ideal Companion Subwoofer for PSA1 System
Solid 15mm Birch Cabinet Construction
Integrated Pole Mount Adaptor
Heavy Duty Wheels
Made in Canada
Overview
The 4800-watt (peak - 2400 watt program) dual 15-inch active PSA2S bass reflex
subwoofer is the ideal companion sub for the PSA1 full range loudspeaker system.
Solid 15mm birch plywood cabinet construction and an integrated all-metal
pole-mount adaptor make the PSA2S the perfect platform for stacking PSA1
cabinets in a scalable array system.
Efficient Class-D power amplifier design provides unmatched long-term
reliability in the field. Cable of direct connection to any audio source
(including speaker level input) the PSA2S can be easily integrated in to
virtually any PA application, making it one of the most versatile active
subwoofer solutions Yorkville Sound currently offers.
Heavy Duty Precision Stand Adaptor
The PSA2S Subwoofer uses Yorkville Sound's new Heavy Duty Precision Stand
Adaptor. In order to minimize top cabinet sway and provide an improved
standmount platform for multiple PSA1 cabinets, the PSA2S subwoofer standmount
adaptor uses an extremely thick walled cast aluminum stand receiver with a wider
mounting plate than has been used on Yorkville subwoofers in the past.
Precision machining after casting allows the highest tolerances possible, this
new improved stand adaptor provides a more stable, highly secure pole mount
system for mobile Paraline systems when used in combination with the Yorkville
SW-TUBEHD Heavy Duty all steel subwoofer tube.
Specifications
Active or Passive Active
Program Power (Watts) 2400 Watts Program (4800 Watts Peak)
Max SPL (dB) 134 Peak (131dB Continuous)
Frequency Response (Hz +/- 3dB) 30Hz-100Hz (Hz +/- 3db)
Crossover Frequency (Hz) fixed @ 100Hz
Driver Configuration 2x15-inch (Bass Reflex Cabinet)
LF Driver(s) 2x15-inch Ceramic with 3-inch Voice Coil
LF Impedance (Ohms) 2x8 Ohm Load
LF Power Amplifier (Watts) Class D 2400 Watts
Enclosure Materials 15mm Birch
Baffle Material 15mm Birch
Covering / Finish Black Ultrathane Paint
Dimensions (DWH xbackW COM inches) 23.75 x18 x 38
Dimensions (DWH xbackW COM cm) 60.3x45.7x96.5
Weight (lbs/kg) 156/70.76
