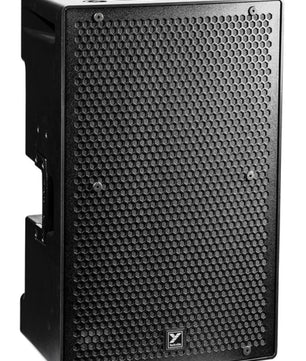

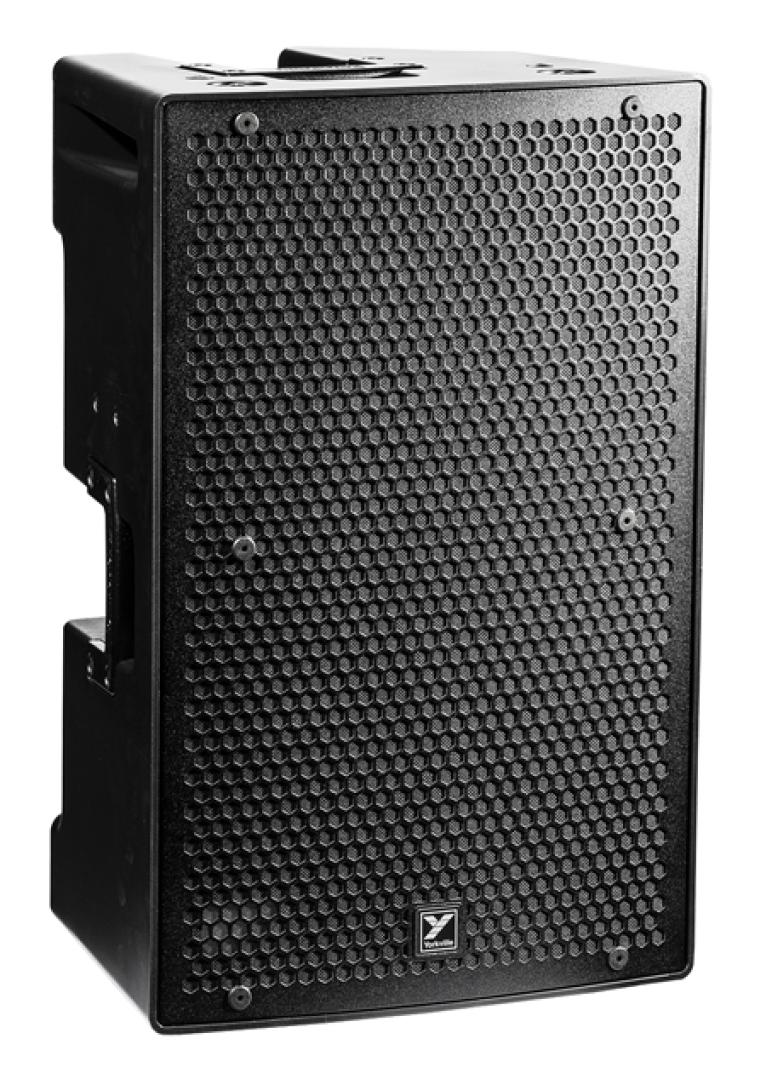

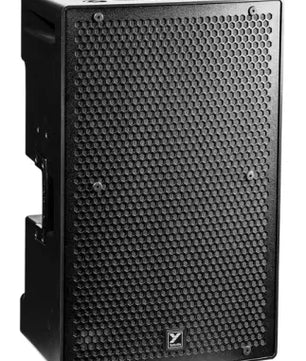

Yorkville PS-15P (Yorkville PS 15P)
Features
Integrated 1400 Watt Amplifier (Peak Power - 4400 Watts Program)
15-inch Woofer with 3-inch Voicecoil
85° x 50° Horn with Thermal and Peak Protection
38mm Compression Driver with 1-inch Exit
Max SPL 134dB Peak (129dB Continuous)
High Efficiency Bi-Amplified Class-D Power Module
Passive Cooling Scheme (No Loud Fans Required)
Designed for Front-of-House or Monitor Applications
Integrated Two Channel Mini Mixer with XLR Microphone, 1/4-inch and RCA Line
Inputs
Multiband Limiting Delivers Extremely Transparent Listening Experience (Vocals
Are Not Modulated By Bass)
Integrated All Metal Speaker Standmount Adaptor
Integrated Reinforced Flypoints
Lightweight ABS Cabinet Construction
Made in Canada
Overview
As the largest cabinet in the Parasource Series, the PS15P delivers maximum
bottom end from a high power 15-inch ceramic woofer (with 3-inch voicecoil). A
focused 85° x 50° (H x V) conical horn delivers improved constant directivity
and better midrange response than competitive cabinets in this class.
Integrated DSP ensures the PS15P can operate in any application without complex
external processing. A simple one-button high pass filter switch rolls off low
frequency material when PS15P is used with any Paraline Series or powered élite
System subwoofer. Bass boost delivers remarkably improved bottom end response
from the PS15P without cluttering midrange program or affecting the cabinet's
overall intelligibility - making it the perfect small speaker solution for
larger events where additional subwoofer support is not available.
Innovative multi-band limiting allows the cabinet to deliver maximum output and
remarkably event frequency response while protecting the PS15P's speaker
components. Unlike competitive powered cabinets, the Parasource Series
multi-band limiting scheme ensures essential elements like vocals and solo
instruments in the essential midrange band aren't being modulated by transient
attacks of low frequency material like kick drums and bass tracks. This delivers
an extremely smooth and precise mix even at the highest output levels the
cabinet can produce.
Designed for maximum versatility, the PS15P works equally well as a Front-of
House cabinet, side fill cabinet or floor monitor. Innovative and highly
efficient passive cooling scheme ensures the PS15P will operate in any
environment without need of noisy internal dust collecting fans. Integrated
reinforced flypoints ensure the PS15P can be flown quickly and easily in any
fixed installation.
Rugged yet lightweight ABS cabinet and baffle design ensure unmatched long term
reliability in the field.
Technology
Integrated DSP ensures Parasource powered loudspeakers can operate in any
application without complex external processing. A simple one-button high pass
filter switch rolls off low frequency material when PS12P is used with any
Paraline Series or powered élite System subwoofer. Bass boost delivers
remarkably improved bottom end response from Parasource speakers without
cluttering midrange program or affecting the cabinet's overall intelligibility -
making it the perfect small speaker solution for larger events where additional
subwoofer support is not available.
Innovative multi-band limiting allows the cabinet to deliver maximum output and
remarkably event frequency response while protecting the cabinet's speaker
components. Unlike competitive powered cabinets, the Parasource Series
multi-band limiting scheme ensures essential elements like vocals and solo
instruments in the essential midrange band aren't being modulated by transient
attacks of low frequency material like kick drums and bass tracks. This delivers
an extremely smooth and precise mix even at the highest output levels the
cabinet can produce.
Rugged yet lightweight ABS cabinet and baffle design ensure unmatched long term
reliability in the field.
Specifications
System Type Active Loudspeaker
Active or Passive: Active
Program Power (Watts) 1400 watts (4400 watts peak)
Max SPL (dB) 134dB Peak (129dB Continuous)
Frequency Response (Hz +/- 3dB) 45Hz to 26kHz
Crossover Frequency (Hz) 1.0kHz
Driver Configuration 15-inch / 1-inch
HF Driver(s) 38mm Voicecoil w/ 1-inch Exit
HF Dispersion ( DEG H x DEG V) 85 x 50
HF Protection Thermal/Peak Limiter
LF Driver(s) 15-inch (3 inch voicecoil)
LF Protection Thermal/Multiband Peak Limiter
MF Processing Dynamic Bass Extension
Cooling Scheme Passive
Power Cable Detachable IEC
Power Consumption (typ/max) 2.4A/3.0A @ 120Vac 1.2/2.5 A @230Vac
Inputs 1/4-inch, XLR, RCA
Inputs - 1/4 IN Jacks Yes (x2)
Inputs - XLR Yes (x2)
Input Sensitivity (Vrms Sine) 1.23 Vrms +4dBu
Mixer Controls Sub Mode HPF, Bass Boost, Mixer Enable
Level Controls Master Level, Mic Level, Line Level
LED Indicators Power, Limit, Clip
Bar Handles Yes
Pole Mount Adapter (1 3/8 IN -3.5cm) Yes
Enclosure Materials ABS
Baffle Material ABS
Grille Perforated Metal
Dimensions (DWH xbackW COM inches) 30.75 x 20.5 x 14.5
Dimensions (DWH xbackW COM cm) 78.1 x 52.1 x 36.3
Weight (lbs/kg) 60/27.8
