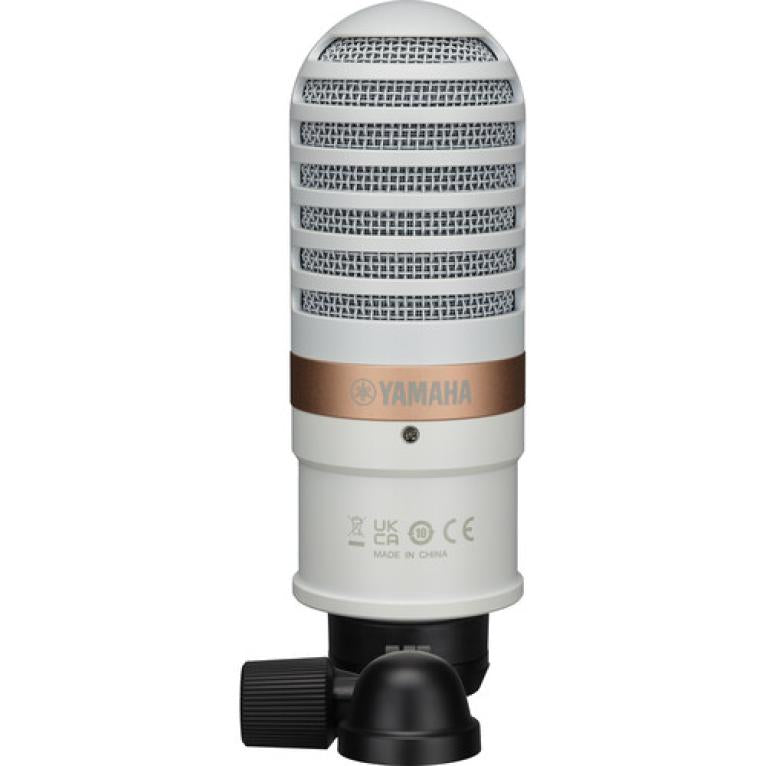

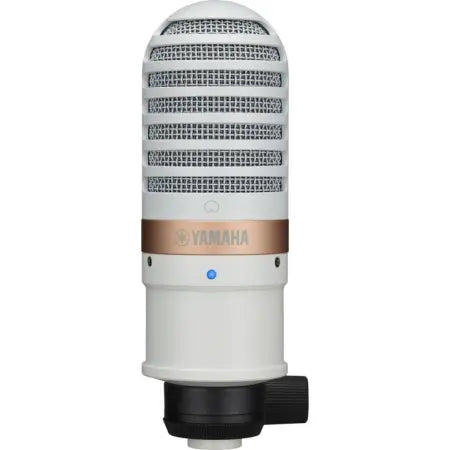

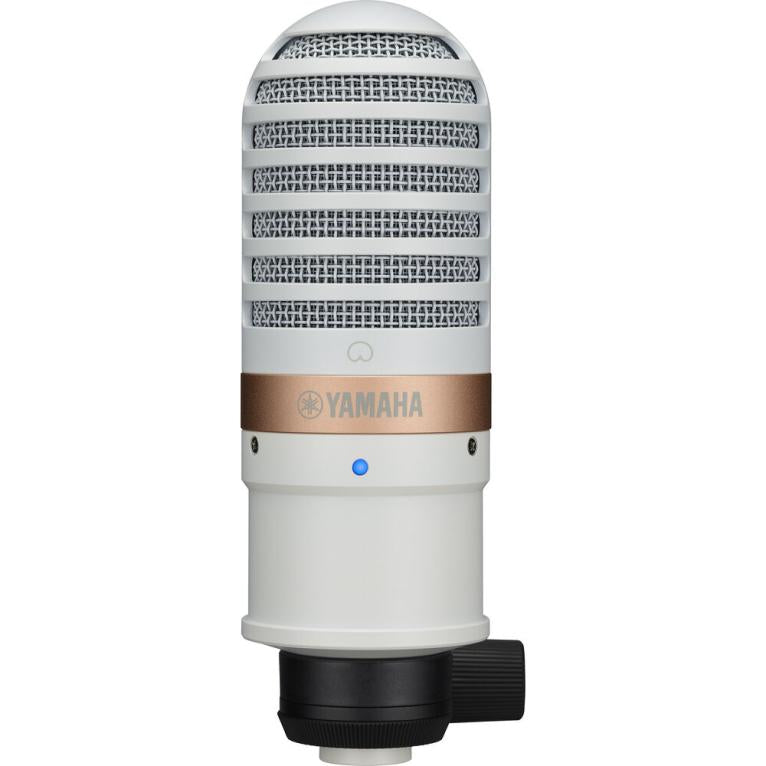

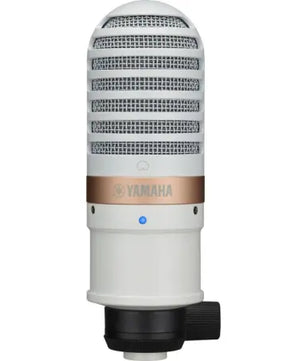

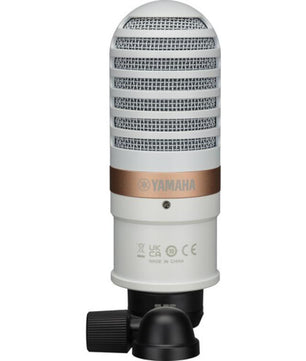

Yamaha YCM01 W | White Cardioid Condenser Mic

Designed as a workhorse mic for vocal and instrument recording as well as streaming applications, the white Yamaha YCM01 is a studio microphone with an XLR output and a cardioid polar pattern, which helps to focus audio capture on the sound source in front of the mic, picking up less background sound from the rear and sides.

The side-address mic offers a traditional 3-pin XLR output for use with a wide variety of professional audio equipment and a 48V phantom power source is required for operation. The microphone features an electret condenser capsule, which provides a 30 Hz to 20 kHz frequency response and can handle SPLs up to 130 dB. A stand adapter and pouch are included.

Features:
For Vocal and Instrument Recording
Electret Condenser Microphone Capsule
Cardioid Pickup for Less Background
Handles up to 130 dB SPL
30 Hz to 20 kHz Frequency Response
XLR Connector, Requires 48V Phantom

Specifications:
Microphone
Primary Applications Studio Recording
Form Factor Stand/Boom Mount
Intended Sound Sources Vocals, Speech/Voice Over, Instrument
Sound Field Mono
Capsule 1 x Electret Condenser
Polar Pattern Cardioid
Orientation Side Address
Circuitry Solid-State
Pad None
High-Pass Filter None
Gain Adjustment None
Indicators 1 x Blue Single LED (Power)
Performance
Frequency Range 30 Hz to 20 kHz
Maximum SPL 130 dB SPL
Impedance 200 Ohms ± 30% at 1 kHz
Load Impedance ≥ 1000 Ohms
Sensitivity -37 dB
Equivalent Noise Level 23 dB A-Weighted
Connectivity
Output Connectors (Analog) 1 x XLR 3-Pin Male (on Mic)
Headphone Connector None
Power
Operating Voltage 48 V
Operating Current Consumption 2 mA
Physical
Color White
Mounting Boom, Floor Mic Stand (with Included Hardware)
Mounting Thread Size Not Specified by Manufacturer
Included Case None
Included Filters None
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions ø: 2.2 x H: 6.5" / ø: 55 x H: 166 mm
Weight 0.9 lb / 0.4 kg
Packaging Info
Package Weight 2.005 lb
Box Dimensions (LxWxH) 9.3 x 8.9 x 4.6"
