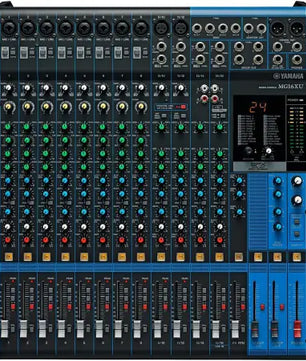

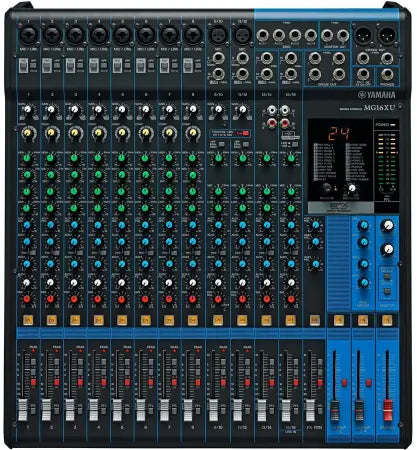

Yamaha MG16XU

Yamaha Mixer MG16XU
16-channel Analog Mixer with 10 Microphone Preamps, 4 Dedicated Stereo Line Channels, 4 Aux Sends, EQ, 1-knob Compressors, and Digital Effects

Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or color to give it a "signature" sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.

D-PRE Discrete Class-A Mic Preamps
This is where it all starts. Everything you do as a sound engineer is dependent on the quality of your preamps, which determines the direction your mix will take, and ultimately how good it is going to sound. MG Series mixing consoles feature Yamaha's studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Delivering fat, natural sounding bass and smooth, soaring highs, with very low distortion, D-PRE preamps possess an impressively wide frequency range that allow them to handle signal from any audio source without overly amplifying any specific elements of the sound. Having such a pure sonic platform to build on will ultimately save you time and effort by eliminating the need for excessive EQing or additional effects processing in order to fix your mix.

High Quality Sound Op-amp
The head amp determines sound quality, and op-amp integrated circuits are one of the most important parts in the head amp circuit. MG Series analog mixers feature high-quality, custom made MG01 op-amps that we developed in cooperation with the semiconductor manufacturer. Although many other Op-amps prioritize electrical design and efficiency, we worked directly with the semiconductor manufacturer to focus on sound quality first. MG01 op-amps feature redesigned circuitry in which even the internal components and wiring have been optimized, and use materials such as high-quality silicon wafers and copper wire to achieve superb resolution.

Switchable Phantom Power & PAD Switch
With phantom power, the Yamaha MG16XU mixer allows you to take full advantage of the greater frequency response and high sound quality of condenser microphones. The input channel with PAD switch accepts MIC to line level of inputs, PAD Switch attenuates high input signals that often accompany mic'ed instruments during performance, avoiding the clipping that can seriously affect your mix. Add this 16-channel analog mixer to your cart today.

Yamaha Mixer MG16XU Features:

16-Channel Analog Mixer
Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
4 GROUP Buses + 1 Stereo Bus
4 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Rack Mount Kit Included
Metal chassis
High-grade effects: SPX with 24 programs
24-bit/192kHz 2in/2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase Al DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Internal universal power supply for world-wide use
Rack Mount Kit Included
Metal chassis

Yamaha Mixer MG16XU Specifications:

Type
Analog

Channels
16
Inputs - Mic Preamps
8 x XLR/TRS Combo, 2 x XLR, 4 x TRS

Inputs - Line
4 x TRS

Inputs - Other
2 x RCA (Stereo)

Outputs - Main
2 x XLR, 4 x TRS

Outputs - Direct
4 x TRS

Outputs - Other
1 x TRS (Footswitch)

Headphones
1 x 1/4"

Send/Return I/O
4 x TRS (Send)

Phantom Power
12

EQ Bands
3-Band, Sweepable Mid

Aux Sends
1 x Pre, 1 x Post/Pre, 2 x Post

Busses/Groups
4 x Groups

Faders
16 Faders

Effects
Yes

Computer Connectivity
1 x USB 2.0

Rackmountable
Yes

Height 5.1"
Width 17.5"
Depth 19.7"
Weight 14.6 lbs.
