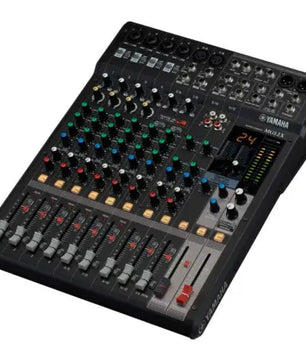

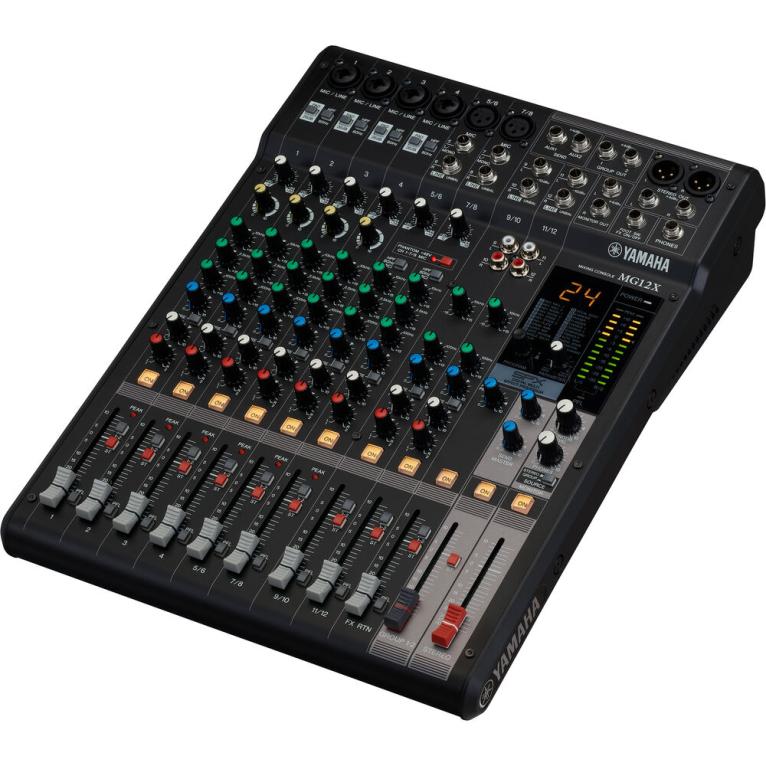

Yamaha MG12X CV | 12x4 Channel Mixer

$377.99

Order within [hour] to get by [date_end]

Quantity

Pickup available at NJ Warehouse.

Usually ready in 1 hour

Yamaha MG12X CV | 12x4 Channel Mixer

NJ Warehouse

Pickup available, usually ready in 1 hour

238 U.S. 206
Byram Township NJ 07821
United States

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Audio professionals looking for a high-quality mixer with premium effects will be impressed with the Yamaha MG12X, a compact mixer capable of twelve simultaneous inputs that is ideal for performances, recordings lectures and more. The mixer features four mono mic/line combo input channels, two stereo line input channels that can also be used as mono mic or line inputs (XLR and stereo 1/4" inputs), and two stereo line inputs with 1/4" and RCA jacks.

Channels 1-8 are each equipped with D-Pre mic preamps, 3-band EQ, pan control and a high pass filter. The D-Pre mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-4 each feature 26 dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums. The MG12X mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers or devices such as digital recorders.

Each of the MG12X's channels feature a dedicated FX-bus-send level and there are 24 effect presets to choose from. The overall level of the FX bus is controlled by the dedicated FX-return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion, and more, these effects can be used to help vocals and instruments sit better in your mix.

Features:
6 Mic Inputs
12 Line Inputs
Built-In FX with 24 Presets
XLR and TRS 1/4" Stereo Outs
Two Group Buses and Two Aux Sends
D-Pre Mic Preamps with 48V Phantom
HPF and 3-Band EQ on Channels 1-8
1/4" Headphone Output with Level Control

Specifications:
Mixer
Number of Analog Input Channels 12 (6 Mono / 4 Stereo)
Number of Mic Preamps 6
Analog Output Channels 1 x Stereo Master Output
1 x Stereo ALT Bus/Subgroup Output
1 x Stereo Control Room/Monitor Output
2 x Mono Aux Send Output
Max I/O Capacity 12 x Input / 6 x Output
Mix Routing Stereo Main Mix / Stereo Bus/Subgroup
Faders 8 x Channel Fader
1 x Master Fader
1 x Bus/Subgroup Fader
1 x FX Fader
Meters 2 x 12-Segment LED
Meter Range -30 dB to +17 dB Peak/Clip
Signal Processing
Gain/Trim Range -6 dB to +64 dB
Input Pad -26 dB
Dynamic Processing Input Channels:
Compressor
Sidechain Filters None
EQ 3-Band EQ (Mono Channels)
2-Band EQ (Stereo Channels)
EQ Parameters Mono Channels:
High: ±15 dB at 10 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Bell)
Low: ±15 dB at 100 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 10 kHz (Shelving)
Low: ±15 dB at 100 Hz (Shelving)
Graphic EQ None
Filters Input Channels:
6 x High-Pass: 80 Hz
Solo/Mute PFL per Input Channel, Bus, FX Bus
Channel Output/Source Monitoring PFL
Built-In Effects 24 x Stereo Effect (Type Unspecified)
Performance
Frequency Response 20 Hz to 48 kHz +0.5/-1.5 dB (at 1 kHz, Gain Min)
Output Level +30 dBu at Max Gain
I/O Impedance Combo XLR-1/4", XLR Mic Input:
3 Kilohms
1/4" Line Input:
10 Kilohms (Unbalanced)
Crosstalk -78 dB at 1 kHz
EIN -128 dBu at Max Gain
Noise Floor -102 dBu (Residual Output Noise)
THD+N 0.03% at Min Gain (+14 dBu, 20 Hz to 20 kHz)
0.005% at Min Gain (+24 dBu, 1 kHz)
Connectivity
Analog Inputs 4 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input
2 x XLR 3-Pin Balanced Mic Input
8 x 1/4" TS Unbalanced Line Input (4 Stereo Pairs)
1 x 1/4" TS Footswitch Input
Analog Outputs 2 x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
2 x 1/4" TRS Balanced Stereo Main Output (1 Stereo Pair)
2 x 1/4" TRS Balanced Stereo Bus Output (1 Stereo Pair)
2 x 1/4" TRS Balanced Stereo Monitor Output (1 Stereo Pair)
2 x 1/4" TRS Balanced Mono Aux Send
1 x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power +48 V
Digital I/O None
Bluetooth None
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power Connector 1 x IEC Input
Power Consumption 22 W
Physical
Dimensions 12.1 x 4.6 x 16.6" / 30.7 x 11.7 x 42.2 cm
Weight 9.3 lb / 4.2 kg
Packaging Info
Package Weight 12.83 lb
Box Dimensions (LxWxH) 19.7 x 16.6 x 7.8"
