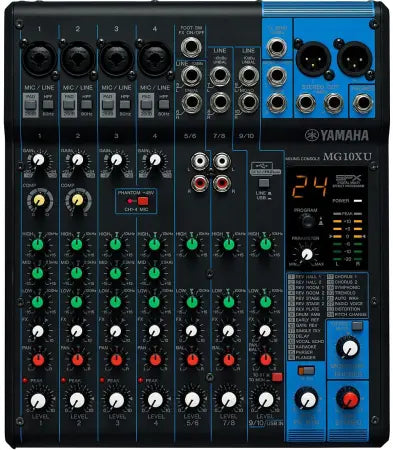

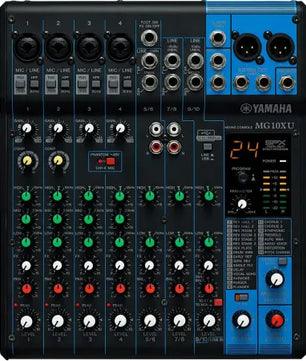

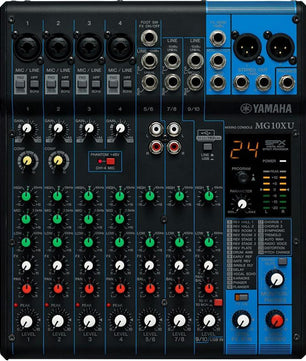

The Yamaha MG10XU is a compact ten-input mixer with built-in effects for performances, lectures, recordings and similar applications. The Yamaha Mixer MG10XU features four mic/line combo inputs with D-PRE mic preamps as well as six 1/4" line inputs with stereo level controls. The Yamaha Mixer MG10XU also features USB connectivity and is capable of providing two channels in and two channels out to your computer at up to 24-bit / 192kHz, ideal for recording live performances, demos and more. Add this 10-channel DJ mixer to your cart today.

Yamaha Mixer MG10XU Features:

10-Channel DJ Mixer
Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
1 Stereo Bus
1 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit / 192kHz 2in / 2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase AI DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Metal chassis
Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
Net Weight: 2.1 kg (4.63 lbs.)

Yamaha Mixer MG10XU Specifications:

Built-in Effects
SPX algorithm: 24 program

Phantom Power
+48 V switchable, channels 1 - 4

Digital I/O
USB: USB Audio Class 2.0 compliant

Sampling frequency: max 192 kH
z
Bit depth: 24-bit

Input Channels
4x mono [mic/line]
3x stereo [line]

Output Channels
2x stereo out
1x monitor out
1x headphone out
1x FX out

Bus
Stereo: 1
AUX[FX]: 1

Pad
26 dB (mono channels)

HPF
80 Hz, 12 dB/oct (mono channels)

Compressor
Threshold: +22 dBu to -8 dBu

Ratio: 1:1 to 4:1

Output level: 0 dB to 7 dB

Attack time: approx. 25 msec

Release time: approx. 300 msec

Equalizer
EQ high gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ mid gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving

LED
Peak LED turns on when post EQ signal reaches 3 dB below clipping
Level Metering 2 x 7-segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]

Total Harmonic Distortion
0.02% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.003% @ +24 dBu (1 kHz), GAIN knob: min

Frequency Response
+0.5 dB/-1.0 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: min

Equivalent Input Noise
-128 dBu (mono input channel, Rs: 150 ?, GAIN knob: max)

Residual Output Noise
-102 dBu (STEREO OUT, STEREO LEVEL knob: min)

Crosstalk
-83 dB

Power Requirement
PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha

Power Consumption
22.9 W

Operating temperature
0 to +40?C (32 to 104?F)

Dimensions
9.6 x 2.8 x 11.6" (244 x 71 x 294 mm)

Net Weight
4.63 lb (2.1 kg)
