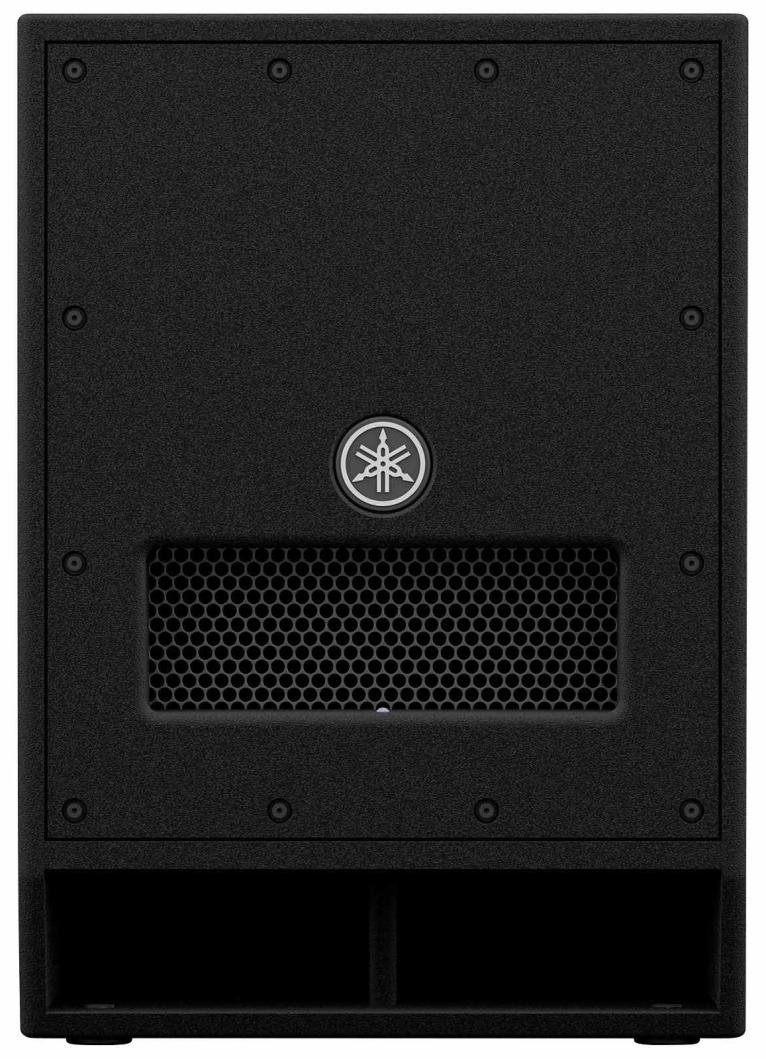

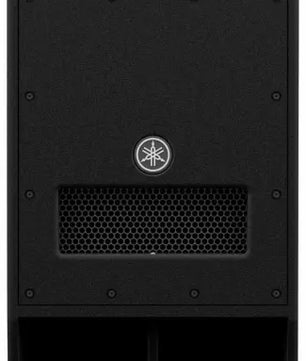

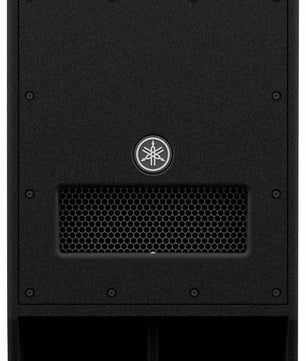

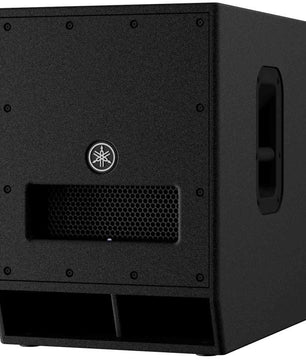

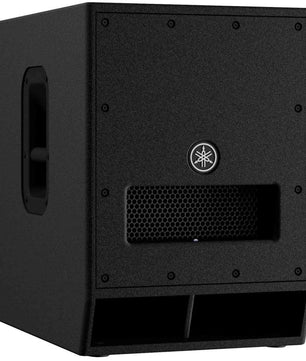

Yamaha DXS12 MKII (12" Powered Subwoofer)
If you like your bass prominent and powerful, DXS Series high-output, powered subwoofers will ensure your bottom-heavy audio is heard loud and clear. Featuring high-efficiency Class-D amplifiers and a customized woofer housed in a sturdy plywood band-pass enclosure, DXS subwoofers are capable of delivering up to an impressive 1020W of distortion-free power with supreme clarity. The lineup features the acclaimed DXS18 and recently upgraded versions of the 12” models, Yamaha DXS12 MKII, which have adopted technologies and features from the DXS18 for an added professional edge and boost in performance. All feature Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with Yamaha's vast lineup of full-range speakers, and reliable management of your bottom end. We've worked tirelessly to develop subwoofers with this level of versatility, dependability, and power because for Yamaha, great bass is serious business. Make it your business too.
For smaller venues or temporary sound reinforcement setups that require serious power with a professional edge, look no further than this compact powerhouse. The new Yamaha DXS12 MKII 12" powered subwoofer is equipped with an upgraded 1020W power amplifier producing an impressive 134dB and reaching as low as 42Hz producing clean, clear, stunning bass performance that defies its smaller size and lightweight construction.
Rugged coating for superior protection
Enclosure exteriors feature a durable Polyurea coating with extremely high damage resistance to protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come.
Compact and portable design enclosure
Just as impressive as the high output at their disposal is the compact portability and lightweight construction that houses the DXS Series' awesome power. The Yamaha DXS12 MKII models in particular have shed 2kg and 3kg compared to their 15” and 12” predecessors respectively, making it easier than ever to load up, set up, or tear down your PA. Order the DXS12 subwoofer today!
Features:
Speaker type : 12" powered subwoofer, Band-pass type
Frequency range (-10dB) : 42 Hz - 150 Hz
Components : 12" cone, 2.5" voice coil
Maximum output level (1m; on axis) : 134 dB SPL
Output power : Dynamic:1020W / Continuous: 800W

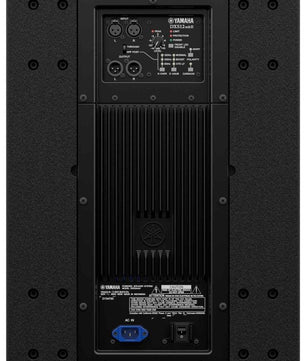

I/O connectors : INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT)
Processors : D-XSUB: BOOST,XTENDED-LF, OFF
Cooling : Natural convection
Power requirements : 100V – 240V, 50Hz/60Hz
Power consumption : 100W
Speaker type : 12" powered subwoofer, Band-pass type
Components : Diameter:12" cone, Voice Coil:2.5"
Specifications:
Speaker Type 12" powered subwoofer, band-pass type
Output Power Dynamic: 1020 W / Continuous: 800 W
Frequency Range 42 Hz to 150 Hz
Components 12" cone, 2.5" voice coil
Maximum Output Level 134 dB
I/O Connectors Input: 2 x XLR3-31, Thru: 2 x XLR3-32 (parallel with input)
Processors D-XSUB: Boost, Extended-LF, Off
Cooling Natural convection
Power Requirements 100 to 240 VAC, 50 Hz/60 Hz
Power Consumption 100 W
Material of Construction Meranti plywood, polyurea coating

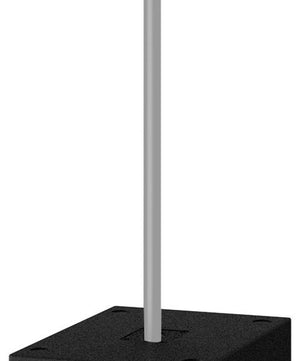

Pole Socket 1.4" / 35.0 mm (depth 3.1" / 80 mm) & M20 (threaded depth 1.0" / 25 mm)
Dimensions (W x H x D) 15.75 x 22.32 x 22.44" / 400 x 567 x 570 mm
Weight 66.1 lb / 30.0 kg
