High-Powered 12-Inch Powered PA Speaker for Live Sound & Installations
The Yamaha DXR12mkII is a versatile, high-output powered loudspeaker designed for exceptional sound clarity, portability, and reliability. Whether used for front-of-house reinforcement, floor monitoring, or mobile gigs, this speaker delivers clean, punchy sound with built-in DSP and a powerful 3-channel mixer—all in a rugged, lightweight enclosure.
Yamaha DXR12mkII Competitive Differences
- 1100W Class-D amplification (950W LF + 150W HF) with up to 134dB SPL output
- 1.75" Neodymium HF compression driver for lighter weight and high-resolution highs
- FIR-X™ linear phase crossover with 48-bit DSP for phase-accurate performance
- D-CONTOUR multi-band compressor with FOH/MAIN and MONITOR modes for adaptive EQ
- 90° x 60° constant directivity horn for wide and consistent coverage
- Built-in 3-channel mixer with mic/line input flexibility
- ABS enclosure with symmetrical design for mirror-mode floor monitoring
- Dual-angle pole mount socket (0° or 7°) for optimal audience coverage
- Rigging points for installation and optional U-bracket compatibility

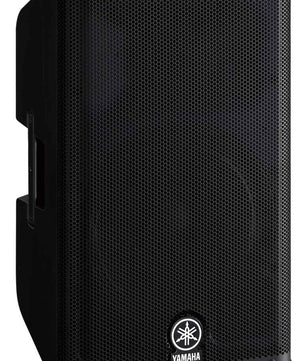

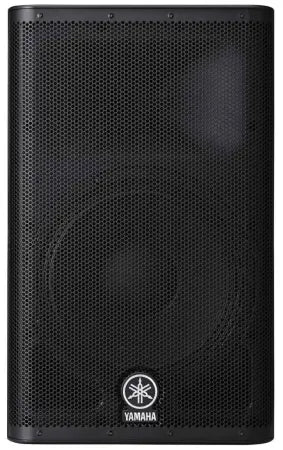

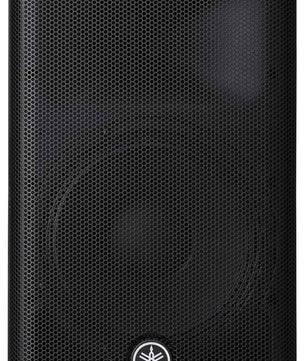

Yamaha DXR12mkII Description
The Yamaha DXR12mkII represents the next generation in Yamaha’s acclaimed DXR line of powered loudspeakers. Developed in collaboration with touring experts at NEXO, the MKII model upgrades the original DXR with a more efficient, lighter HF driver, enhanced SPL, and better coverage dispersion thanks to its redesigned constant directivity horn.
This bi-amplified, 2-way 12" speaker delivers peak performance of 1100W, making it capable of handling both small club gigs and large venue setups. Built-in FIR-X™ crossover tuning with 48-bit DSP ensures exceptional phase coherence and sonic imaging, while Yamaha's D-CONTOUR processor adjusts EQ in real time to maintain clarity at any output level.
The DXR12mkII’s 3-channel mixer supports a wide variety of inputs, from microphones and instruments to RCA stereo sources, giving performers, DJs, and presenters a self-contained solution without needing an external mixer. Its rugged ABS enclosure includes a white front LED that dynamically responds to limiter activity, helping users monitor system status in real-time.
Whether flown, pole-mounted, or used as a floor monitor, the DXR12mkII adapts to your setup. Smart features like switchable HPF (100Hz/120Hz) make it easy to pair with DXS subwoofers for a full-range PA system. With its lightweight build, powerful DSP, and crystal-clear sound, the DXR12mkII stands as a top-tier choice for portable sound reinforcement.
DXR12mkII Features
- 1100W peak power (950W LF + 150W HF), 700W continuous
- 12" ferrite LF driver with 2.5" voice coil
- 1.75" Neodymium HF compression driver, 1" throat
- Built-in 3-channel mixer with mic and line level input support
- FIR-X™ linear phase crossover tuning for optimal frequency and phase response
- 48-bit DSP with 24-bit AD/DA converters for high-resolution sound
- D-CONTOUR intelligent multi-band compression (FOH/MAIN & MONITOR modes)
- Switchable HPF (100Hz or 120Hz) for subwoofer integration
- 90° x 60° constant directivity horn for wide dispersion
- Intelligent LED indicator (white) for power and limiter status
- Dual-angle pole mount (0° and 7°) for optimal throw
- Symmetrical cabinet design for mirror-mode floor monitoring
- Durable ABS cabinet with aluminum handles and steel grille
- Universal power supply with switching-mode PSU
DXR12mkII Specifications
- Type: 2-way bi-amplified bass-reflex powered loudspeaker
- LF Driver: 12" cone, ferrite magnet, 2.5" voice coil
- HF Driver: 1.75" diaphragm, Neodymium compression driver
- Frequency Range: 52Hz – 20kHz
- Crossover Frequency: 2.1kHz
- Max SPL: 134dB
- Coverage: 90° horizontal x 60° vertical

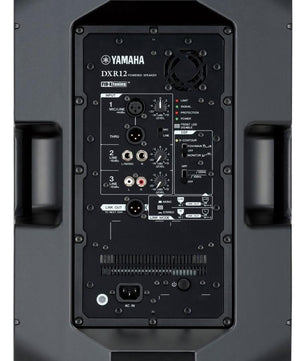

- Input 1: XLR-3-31 (Mic/Line)
- Input 2: 2 x 1/4" Phone (L/Mono, R)
- Input 3: 2 x RCA
- THRU: XLR-3-32 (parallel with Input 1)
- Link Out: XLR (mixed output from all inputs)
- DSP Functions: D-CONTOUR, HPF (100Hz / 120Hz), FIR-X™, protection circuitry
- Mounting Options: Pole mount (dual angle), floor wedge, rigging points (eyebolts optional), U-bracket compatible
- Enclosure Material: ABS (matte black)
- Power Source: Standard IEC AC cable
- Dimensions (H x W x D): 23.6" x 14.25" x 13.75"
- Weight: 41 lbs.
