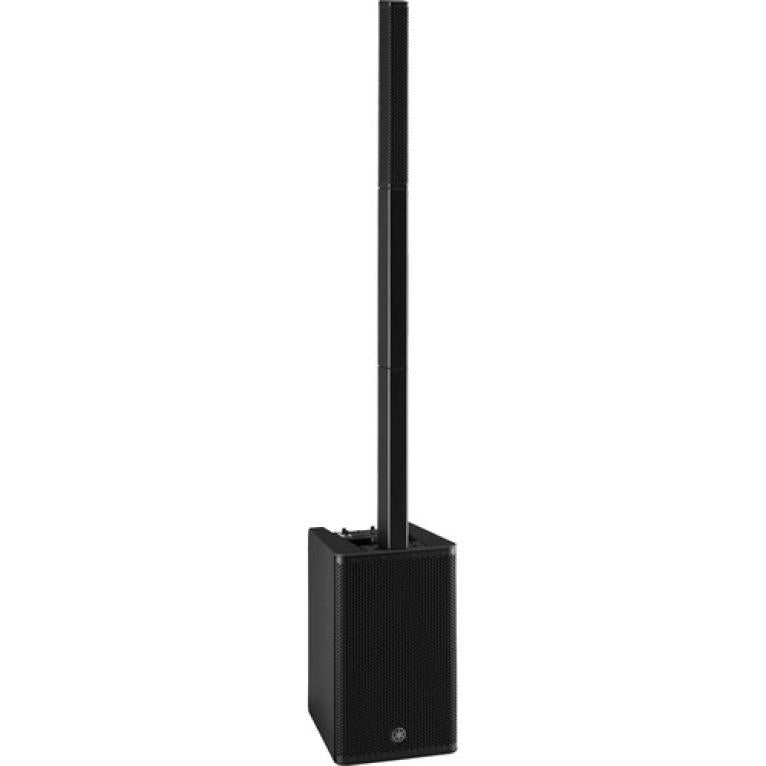

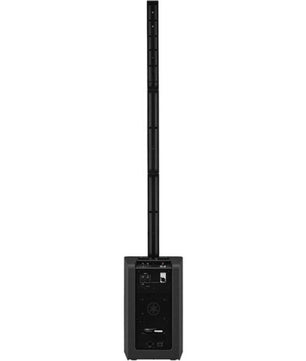

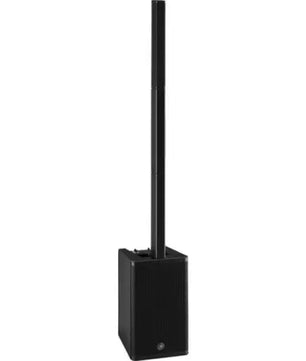

Yamaha delivers uniform and quality sound over a wide coverage area while maintaining a highly portable form factor. Featuring 10 slim HF drivers arranged in a J-Curve line array and a large 12" subwoofer contained in an ultracompact ABS cabinet, the DXL1K is an ideal choice for portable versatility, with a lightweight design, an incredibly easy and fast set up time, and an expandable link system that lets you connect to a Yamaha STAGEPAS 1K mkII system for greater coverage, output power, or stereo playback.
The system is powered by a 1100W max Class-D amplifier, capable of delivering impressive 125 dB SPL and leveraging Yamaha's years of professional PA design for maximum stability and sound quality, even at very high output levels. Yamaha's Twisted Flare Port technology ensures deep, powerful bass response without distortion, and the system comes with a convenient slipcover that protects your speakers while providing handy storage for spacers, line array modules, or any other useful accessories.
J-Curve Slim Line Array
The high-frequency section of the system is composed of 10 small-diameter, 1.5" speakers arranged in a curved, J-shaped line array. This design configuration allows the system to achieve a vertical coverage of 30° across a span of 170°. The long, 10-driver array can deliver clean, clear, high-quality sound consistently over long distances, projecting uniform sound from the front to the rear of the audience.
Powerful Advanced "Compact" Subwoofer
The DXL1K features a 12" subwoofer that is, in fact, the largest in its class. Despite the large 12" speaker, the subwoofer sports the smallest cabinet on the market for a subwoofer of this size and power. This means that the speaker delivers massive low-end power while taking up a minimal amount of precious real estate on stages. By incorporating Yamaha's Twisted Flare Port technology to reduce port wind noise that often plagues compact bass-reflex subs, the low-frequency output is maximized, producing very deep, powerful, distortion-free bass.
1100W Class-D Amplifier
With 1100W max of Class-D amplification, the DXL1K can deliver an impressive 125 dB SPL from its surprisingly compact speaker cabinet. Yamaha has leveraged their decades-long experience as a manufacturer of professional PA products, ensuring that with great power comes great stability. The DXL1K maintains the same accurate, high-quality sound even at very high output levels.
Superior Utility and Portability
The DXL1K is not only capable of uniformly filling a wide area with quality sound, but its also lightweight enough to be easily carried by anyone, and simple enough to set up in as little as one minute. Simply affix the two spacers and speaker unit into the subwoofer and you are done—no cables, stands, or additional gear is required. The system can even be expanded by linking it to a STAGEPAS 1K mkII system, allowing a maximum of five mono inputs and one stereo input.
Easy to rapidly set up in one to two minutes, no extra cables required
Lightweight ABS cabinet and polyurea coating for rugged durability in harsh performance environments
Wide frequency response of 37 Hz to 20 kHz for deep lows and crisp highs
FEATURES:
Expandable via STAGEPAS systems, link the systems for stereo playback, greater coverage, increased output power, and/or expanded inputs

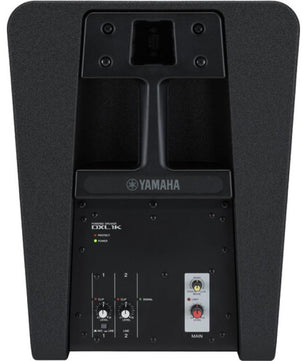

Two combo XLR-1/4" inputs, XLR link in and out jacks
Includes fitted cover with pouches for storage of spacers, speaker array, or additional accessories
Compatible with optional DL-SP1K dolly for convenient transportation
SPECIFICATIONS:
Speaker Configuration
10 x 2-Way Speaker Column with Subwoofer
Number of Input Channels
2 (2 x Mono)
Amplifier Power Rating
Speakers:
600 W
Subwoofer:
500 W
Show Less
HF Driver
10 x 1.5" / 3.8 cm Dome
Audio I/O
1 x Combo XLR-1/4" TRS Female Balanced Mic/Line Input
1 x Combo XLR-1/4" TRS Female Balanced Line Input
1 x XLR 3-Pin Female Balanced Link Input
1 x XLR 3-Pin Male Link Output
Show Less
Portable PA System
Speaker Configuration
10 x 2-Way Speaker Column with Subwoofer
Number of Input Channels
2 (2 x Mono)
Amplifier Power Rating
Speakers:
600 W
Subwoofer:
500 W
Amplifier Class
Class-D
Speakers
Enclosure Type
Speaker:
Sealed
Subwoofer:
Bass-Reflex
HF Driver
10 x 1.5" / 3.8 cm Dome
Subwoofer Driver
1 x 12" / 30.5 cm Woofer
Signal Processing
Crossover
240 Hz
Input Pad
No
EQ
No
Semi-Parametric EQ
No
Effects
3 x Preset (Factory)
Filters
No
Dynamic Processing
Limiter
Performance
Frequency Response
37 Hz to 20 kHz ±10 dB
Maximum SPL
125 dB SPL (Peak)
Coverage Angle
170° H x 30° V
I/O Impedance
XLR Mic Input:
3 Kilohms (Balanced)
XLR Line Input:
20 Kilohms (Balanced)
1/4" Line Input:
10 Kilohms (Balanced)
XLR Line Output:
75 Ohms
Protections
Overcurrent, Signal Limiter, Thermal
Connectivity
Audio I/O
1 x Combo XLR-1/4" TRS Female Balanced Mic/Line Input
1 x Combo XLR-1/4" TRS Female Balanced Line Input
1 x XLR 3-Pin Female Balanced Link Input
1 x XLR 3-Pin Male Link Output
USB
No
Network I/O
No
Power
AC Input Power
110 to 120 VAC, 60 Hz
220 to 240 VAC, 50 / 60 Hz
Power Consumption
25 W (Idle)
91 W (1/8 Power)
AC Power I/O
1 x IEC Input
Physical
Transport Options
Subwoofer:
1 x Handle (Top)
Construction Material
ABS
Environmental Protection
No
Certifications
WEEE
*as per Manufacturer
Dimensions
System:
78.7 x 16.5 x 13.1" / 200 x 41.8 x 33.4 cm (Full Assembly)
Weight
50.7 lb / 23 kg (Full Assembly)
Packaging Info
Package Weight
63.7 lb
Box Dimensions (LxWxH)
29.5 x 24 x 17"
