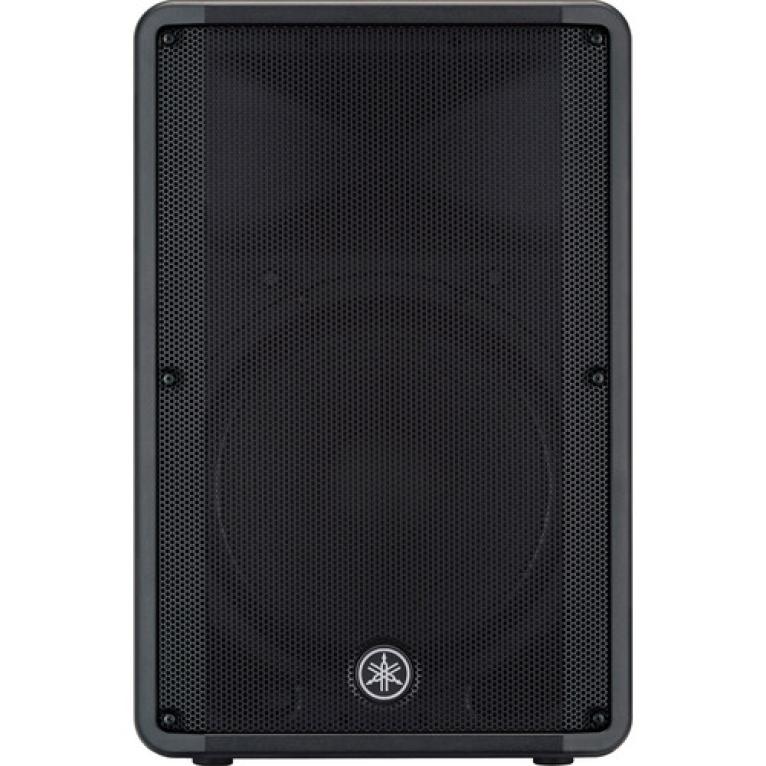

Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR15- 15" 2-Way Powered Loudspeaker from Yamaha is capable of up to 1000W of dynamic output via its Class D amplifier. The loudspeaker features a 15" woofer and a 1.25" compression driver and provides a maximum output of 132 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4", XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design the DBR15 is portable and can be easily transported.

High-Efficiency Class D Amplifier
The DBR15's lightweight, high performance Class-D amplifier is capable of producing up to 1000 W of power, achieving an SPL of 132 dB, delivered with clarity and dynamic characteristics

Custom Designed Transducer
The woofer delivers defined, powerful bass with minimal distortion, while the 1.25" precision compression driver produces accurate mid-range and high frequencies

Portable Cabinet
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while an ergonomic handles provide transportation and system setup

Enclosure Design for Floor Monitoring
DBR Series speakers feature an optimized 50° wedge angle for floor monitoring

On-Board 2-Channel Mixer
DBR Series speakers have two input channels. Channel 1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. Channel 2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a stereo RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either Channel 1 + 2 MIX to mix the signal of Channel 1 and Channel 2, or Channel 1 THRU to pass the signal from Channel 1 only

Rigging Points for Installation Applications
DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts

Features:

Speaker Type
2-way, bi-amp powered speaker, bass-reflex type

Frequency Range
50 Hz to 20 kHz (-10 dB)

Nominal Coverage Angle
H: 90°
V: 60°

Components
LF:
15" cone
2.5" Voice Coil
Ferrite magnet

HF:
1.4" diaphragm throat compression driver
Ferrite magnet

Crossover
2.1 kHz: FIR-X tuning (linear phase FIR filter)

Output Power
Dynamic: 1000 W (LF: 800 W, HF: 200 W)
Continuous: 465 W (LF: 400 W, HF: 65 W)

Maximum Output Level
132 dB SPL

I/O Connectors
Input 1: 1x combination XLR/TRS
INPUT2: 1x combination XLR/TRS, 2x unbalanced RCA
OUTPUT: 1x XLR3-32 (CH 1 Parallel Through or CH 1 + CH 2 Mix)

Processors
D-Contour
FOH/Main
Monitor
Off

Heat Dissipation
Fan cooling, 4 speeds

Power Requirements
100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz

Power Consumption
74 W (1/8 Power Consumption)
18 W (Idle)

Cabinet
Material: Plastic
Handle 2x Side

Mounting Hardware
2x bottom mounted, 1x rear mounted for M8 x 15 mm eyebolts

Pole Socket
1x 35 mm, bottom

Dimensions
(W x H x D)
17.9 x 27.6 x 14.9" (455 x 700 x 378 mm)

Weight
42.6 lb (19.3 kg)
