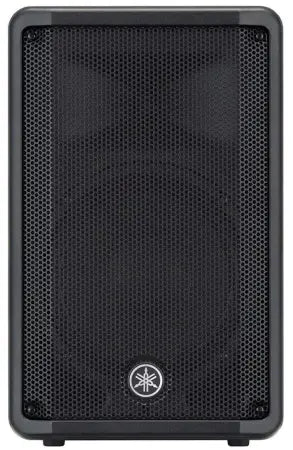

Yamaha DBR10 | 10in - 129dB

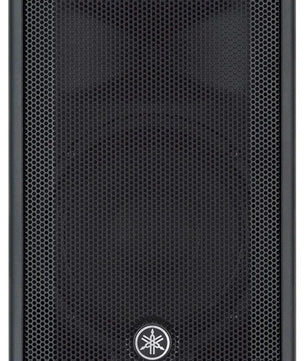

Yamaha DBR10 Powered Speaker

Yamaha's powered speaker offerings now include the DBR Series, The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. The DBR 10 features a 10" LF driver and a 1.4" ferrite HF driver with a 1" throat. It packs a powerful 700W Class D amplifier and does it all while weighing in at less than 24lbs. The cabinet is ergonomically designed for easy transport and the sound is pure Yamaha.

High-Efficiency 700W Class-D Amplifiers
The DBR's lightweight, high performance Class-D amplifier produces 700W of power, achieving an SPL of 129dB, delivered with remarkable clarity and dynamic characteristics.

Custom Designed Transducer
The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver produces accurate mid-range and high frequencies.

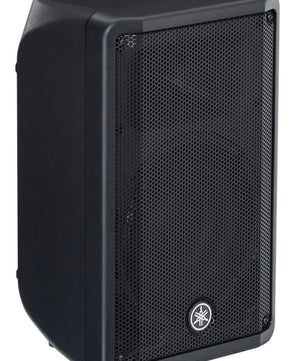

A Rugged, Highly Portable Cabinet
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

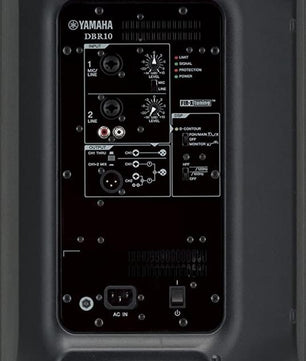

Easy-to-use Onboard 2-Channel Mixer
DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

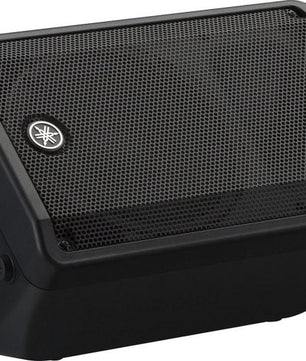

Smart Enclosure Design for Floor Monitoring
DBR Series speakers feature an optimized 50wedge angle for floor monitoring.

Rigging Points for Installation Applications
DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.

Features:

700W Dynamic Output
Class D Amplifier
10" Woofer & 1" HF Driver
On-Board 2-Channel Mixer
Floor, FOH, Rigged Applications
Designed for Portability
Built-In Rigging Points

Specifications:

Speaker Type
2-way, bi-amp powered speaker, bass-reflex type

Frequency Range
55 Hz to 20 kHz (-10 dB)

Nominal Coverage Angle
H: 90°
V: 60°

Components
LF:
10" cone
2" Voice Coil
Ferrite magnet

HF:
1" diaphragm throat compression driver
Ferrite magnet

Crossover
2.1 kHz: FIR-X tuning (linear phase FIR filter)

Output Power
Dynamic: 700 W (LF: 500 W, HF: 200 W)
Continuous: 325 W (LF: 260 W, HF: 65 W)

Maximum Output Level
129 dB SPL

I/O Connectors
Input 1: 1x combination XLR/TRS
INPUT2: 1x combination XLR/TRS, 2x unbalanced RCA
OUTPUT: 1x XLR3-32 (CH 1 Parallel Through or CH 1 + CH 2 Mix)

Processors
D-Contour
FOH/Main
Monitor
Off

Heat Dissipation
Fan cooling, 4 speeds

Power Requirements
100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz

Power Consumption
60 W (1/8 Power Consumption)
18 W (Idle)

Cabinet
Material: Plastic

Handle
1x Top

Mounting Hardware
2x bottom mounted for M8 x 15 mm eyebolts

Pole Socket
1x 35 mm, bottom

Dimensions
(W x H x D)
12.1 x 19.4 x 11.4" (308 x 493 x 289 mm)

Weight
23.2 lb (10.5 kg)
