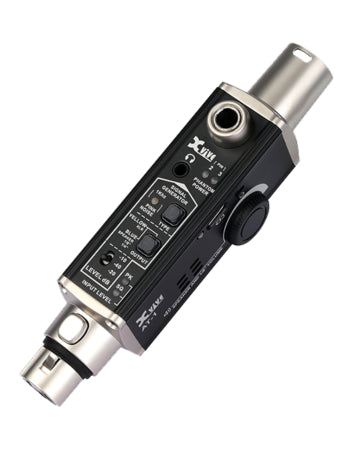

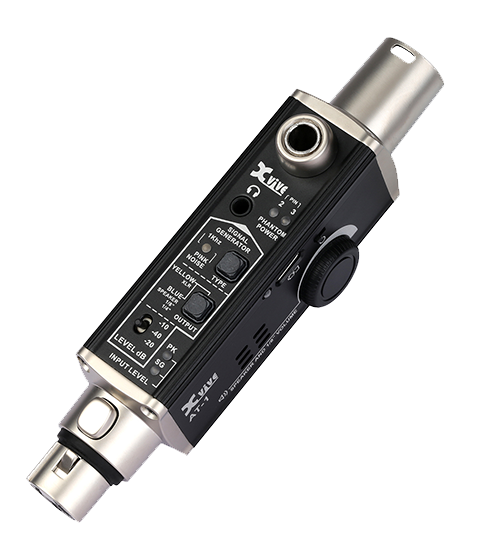

XVive AT-1 | Portable Audio Tester with Signal Generator & XLR Cable Checker

Comprehensive Audio Tester for Professional Sound Engineers

The XVive AT-1 is a versatile portable audio tester designed for musicians, audio technicians, and engineers. Whether you're troubleshooting cables, checking signal strength, or testing phantom power, this compact unit ensures your audio gear functions perfectly. With multiple testing modes, including signal generation, cable testing, input metering, and monitoring, the AT-1 is a must-have tool for any live or studio setup.

XVive AT-1 Competitive Differences

• Signal Generator – Outputs 1 kHz sine wave or pink noise through XLR, 1/4", and 1/8" connectors with selectable levels (-10 dB, -20 dB, -40 dB).
• XLR Cable Tester – Detects faults in XLR cables by verifying all three pins for proper functionality.
• XLR Input Metering – Measures the input signal level from the XLR female connector.
• Phantom Power Check – Tests and displays phantom power voltage (solid light for 44-52V, flashing light for 24-44V).
• Headphone & Speaker Monitoring – Listen to input signals via a 1/8" headphone jack.
• Comprehensive Connectivity – Supports XLR balanced, 1/4" unbalanced, and 1/8" connections.
• Compact & Portable – Comes with a protective carry case and a belt clip for easy transport.
• USB-C Rechargeable – Conveniently powered via USB-C for on-the-go use.

XVive AT-1 Description

The XVive AT-1 is an essential tool for audio professionals who need a reliable way to test, diagnose, and monitor their audio equipment. This compact device functions as a signal generator, XLR cable tester, input metering tool, phantom power checker, and monitoring device—all in one. It features a signal generator that outputs a 1 kHz sine wave or pink noise at three selectable levels (-10 dB, -20 dB, -40 dB), ensuring precise signal testing. The XLR cable tester helps identify faults in balanced cables, while the input metering function allows you to monitor signal strength effectively. Additionally, the phantom power checker verifies voltage levels, ensuring proper operation of condenser microphones and other powered devices. For added convenience, the AT-1 includes a headphone and speaker monitoring function, allowing users to listen to input signals through the 1/8” headphone jack. The unit is USB-C rechargeable and includes a carry case with a belt clip, making it the perfect companion for live sound engineers and studio technicians.

AT-1 Features

• 1 kHz tone generator with selectable output levels (-10 dB, -20 dB, -40 dB)
• Pink noise generator with selectable levels (-10 dB, -20 dB, -40 dB)
• XLR cable tester for verifying pin connectivity
• XLR input metering with signal threshold indicators (-20 dBu for SG, +10 dBu for PK)
• Phantom power checker (solid 44-52V, flashing 24-44V)
• Headphone and speaker monitoring with 1/8” output
• Supports XLR balanced, 1/4” unbalanced, and 1/8” connections
• USB-C rechargeable for portability
• Includes a protective carry case with a belt clip

AT-1 Specifications

• XLR Balanced Jack: 1 kHz tone & pink noise (-40, -20, -10 dBu)
• 1/4" Unbalanced Jack: 1 kHz tone & pink noise (-40, -20, -10 dBu)
• Input Meter 'SG' Threshold: -20 dBu
• Input Meter 'PK' Threshold: +10 dBu
• Output Impedance: 350 Ω (XLR), 600 Ω (1/4")
• Input Impedance: 3 kΩ (XLR), 600 Ω / 3.5 kΩ (1/4")
• Phantom Power Voltage: Solid (44 - 52V), Flashing (24 - 44V)
• Cable Tester DC Voltage: 3.3V

What's In The Box

• XVive AT-1 Audio Tester
• 1/4" male to 1/4" male adapter
• USB-C charging cable
• Protective carry case with belt clip
