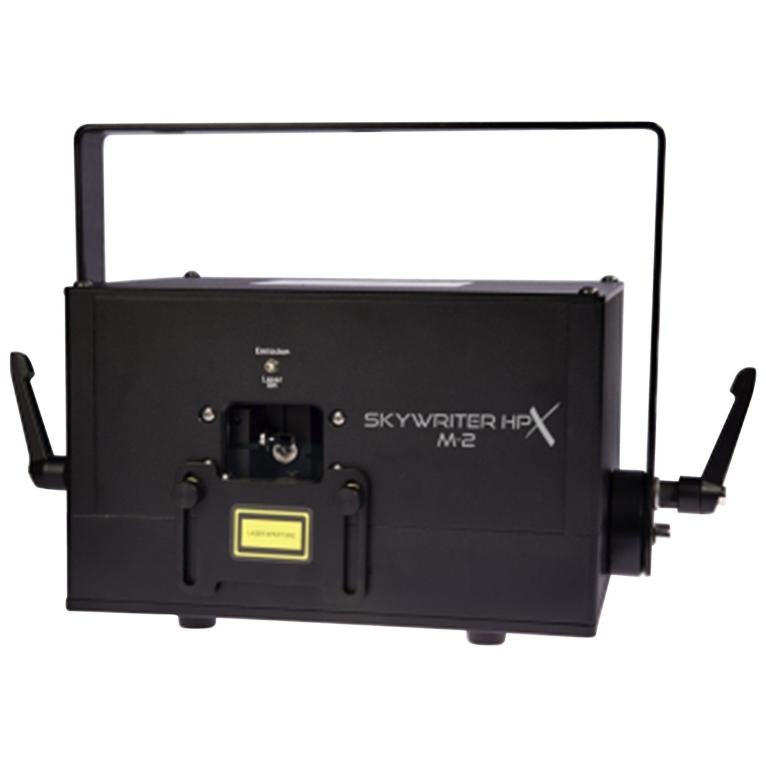

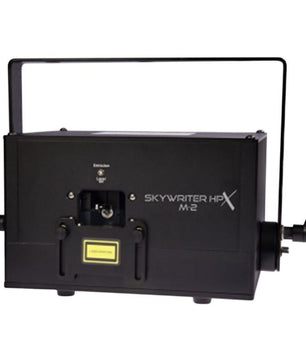

X-Laser Skywriter HPX M-2

The Skywriter HPX M-2 is the most affordable way to access X-Laser’s Mercury laser control system in a fixture that is truly road ready.

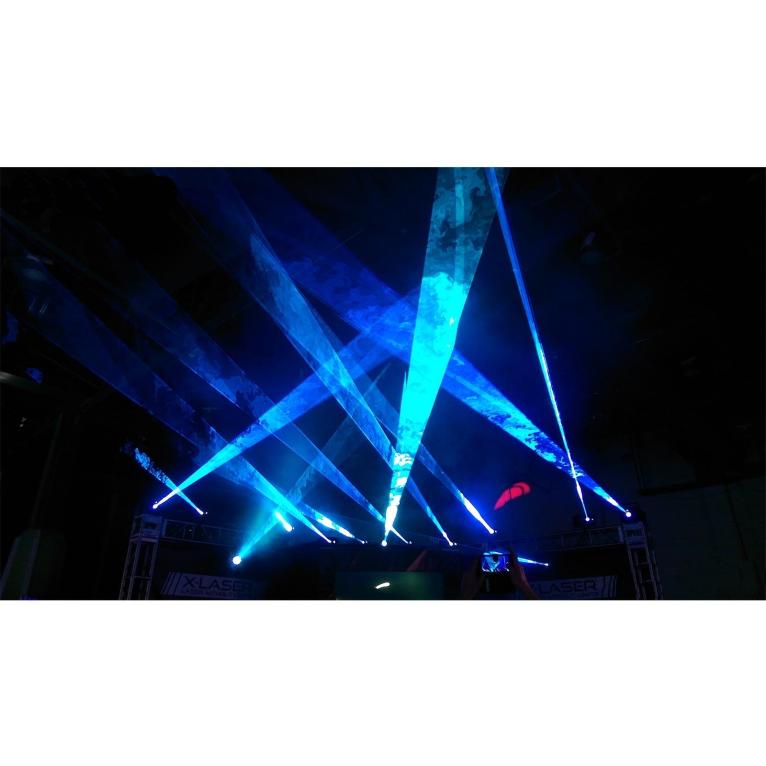

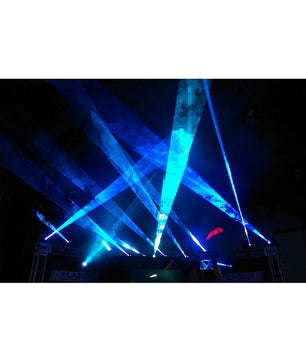

The Skywriter HPX M-2 is ideal for small and medium-sized productions where vibrant laser effects can stand out on their own or be used to complement other effect lighting. Lighting professionals can easily integrate the M-2 into their lighting rigs and control it in unison with the rest of their lighting, from just about any major console or lighting controller. The Skywriter HPX M-2 has 2W of full RGB laser power and can be used indoors or outdoors, in venues with audiences of up to 1,000 guests.

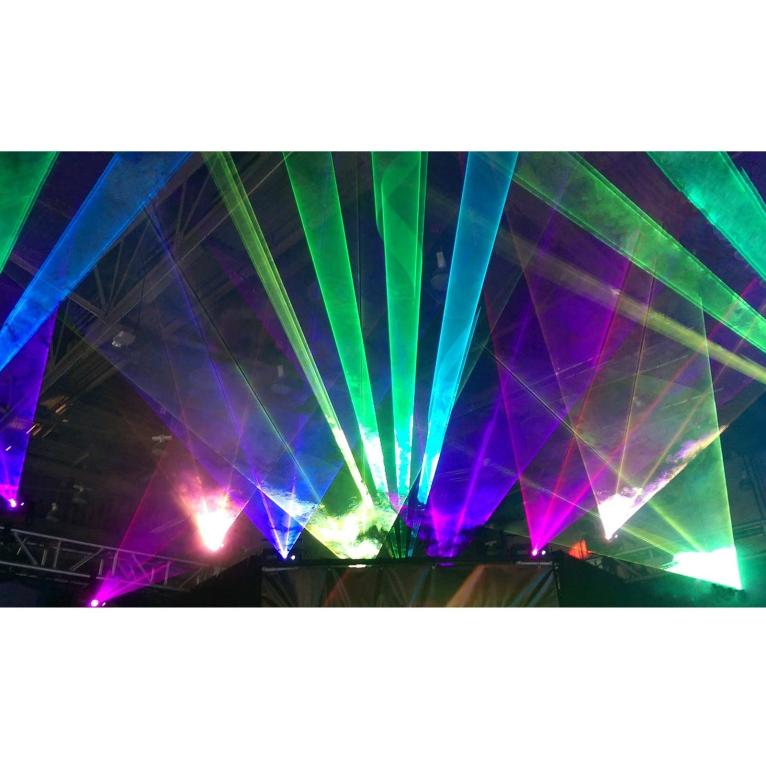

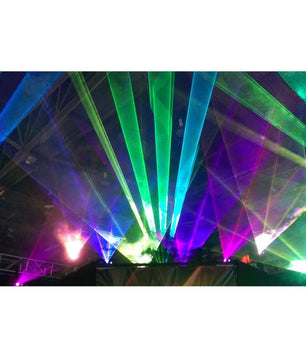

The Skywriter HPX M-2 is the lower-power, lower-cost sibling of our most popular projector, the Skywriter HPX M-5, and combined with our Mercury control system allows for large arrays of lasers with incredible capabilities, all controlled from a lighting console to create amazing cascading movement, dimmer and color chases.

Features:
2W balanced RGB laser engine
Single-mode, direct-injection diodes for great modulation and reliability
Matched diode sets for better beam quality
Mercury laser control system with the master and basic profiles including:

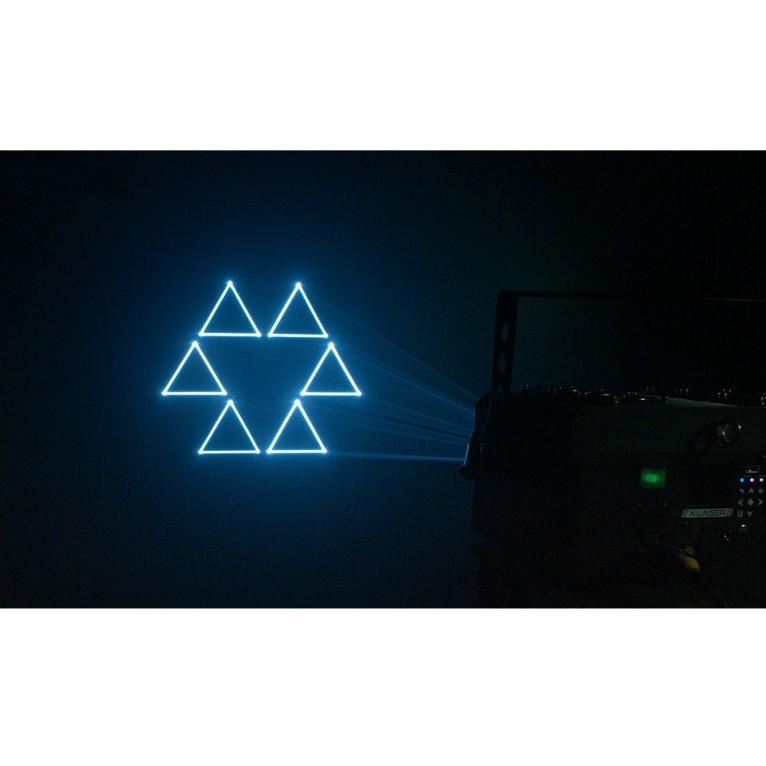

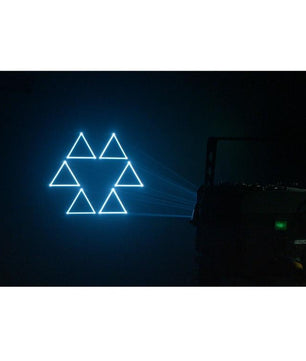

450+ gobos
11 digital prisms
50 color macros
60 motion macros with variable speed and amplitude
5-pin DMX
Large, matte-finish LCD interface
Art-Net connectivity (upgradable to our etherStop system)
Sealed optical deck and rugged chassis reduce maintenance intervals, even during road use
Rugged and compact anodized aluminum housing
Double quality checked in a 26-point inspection prior to shipping
X-Laser no-hassle warranty eligible (6 months for diodes, 1 year mechanical)
Class 4 High-Powered Laser; FDA Variance required. EZ Variance Kit available separately
Plastic molded road case with custom foam sold separately

Specifications:
Control: X-Laser Mercury control, ILDA
Scanners: High-speed, closed-loop galvanometers, max scan angle 45 degrees, 30K PPS at 8-degrees
Settings interface: Mercury LCD
Color modulation: Analog, 1,000+ colors
Laser energy: 2W raw (500mW R, 500mW G, 1W B)
Beam source: Direct-injection diode modules
Wavelengths: 638nm red, 520nm green, 445nm blue
Physical: 15”L x 9.25”W x 10.25”H; 15lbs (381mm x 235mm x 260mm, 6.8kg)
Housing type: Anodized 6061 aluminum
Power draw: 40W typical, 85W peak
Power: 150W PowerCON compatible in/out, 5x20mm 250V 6.3A fast-acting fuse
Beam divergence: <1.6 mRad
Cooling: Forced air through heat sink and TEC
FDA/IEC hazard class: Class 4
International safety: IEC 60825-1 ed. 2007
FDA/CDRH:10 and 1040.11(c)
Canadian safety: CSA C.22.2 No. 60950-1
EU safety: EN 60825-1, EN 60950
