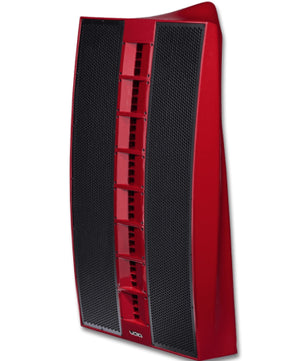

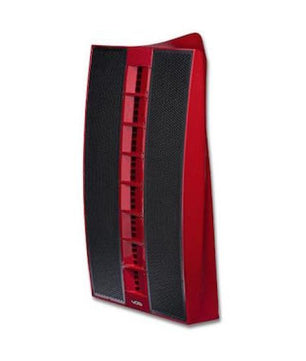

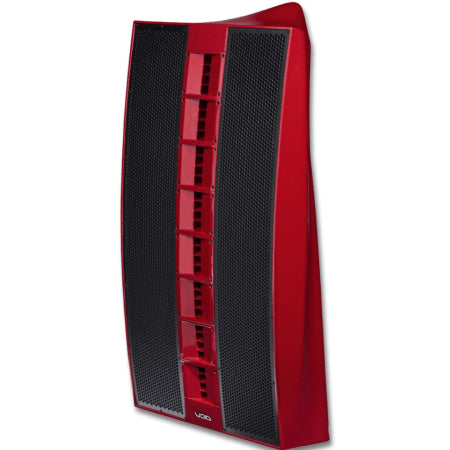

Void Nexus 6 Loudspeaker
Two-way bi-amped sculpted loudspeaker array

Void Acoustics Nexus 6 Features:

Visually striking appearance for style-led environments
Virtual Arc technology forms common acoustic centre
Unified dispersion, phase and timing
20 discrete proprietary drive units
Stack mounted or proprietary flying system
Fibreglass Kevlar composite construction
Standard red finish, optional custom colours
Smooth cellulose finish

Aimed at the larger venue, the radical styling of the Void Acoustics Nexus 6 is born from the innovative internal layout of its 20 transducers. The multi-way Nexus 6 loudspeaker consists of no less than 12 6.5" low frequency drivers and eight 1" high frequency compression drivers housed in a sculpted fiberglass enclosure that can be ground stacked on subwoofers, or flown independently using the optional proprietary Void flying system.

Virtual Arc technology is implemented on every component to form a common acoustic centre, or virtual point source, that exists rearwards of the array. This approach overcomes all the disadvantages that compromise a traditional array of multiple sound sources emitting from different locations. Dispersion, phase, coherency and timing are all controlled and unified due to the common acoustic feed point and multi-channel access. Virtual Arc technology ensures that the same experience is experienced by all that are in the throw of the Nexus 6, wherever they are, due to its wide and controlled dispersion. Total summation of all the components in each passband can also take place within the Nexus 6, allowing for much higher efficiency, greater output and improved reliability due to reduced component stress.

The Nexus 6 Bi-Amp Speaker offers excellent value for money when compared to the array of enclosures normally required to achieve the same dispersion. Whether placed on sub frequency enclosures to form a dance stack or flown independently, the Void Acoustics Nexus 6 loudspeaker brings the performance and styling of the future to the here and now.

Void Acoustics Nexus 6 Specifications::

Frequency Response 78Hz - 21kHz ±3dB
Efficiency LF: 105dB 1w/1m, HF: 110dB 1w/1m
Crossover Point 1.2kHz active
Impedance LF: 2 x 5.3 ohms, HF: 2 x 4 ohms
Power Handling LF: 2 x 1350 Watts RMS, HF: 2 x 320 Watts RMS
Maximum Output 137dB cont, 141dB peak
Driver Configuration 12 x 6.5" LF, 8 x 1" HF compression driver
Dispersion 110°H x 50°V
Connectors 1 x 8-pole speakON™ NL8
Height 1266mm (49.8")
Width 561mm (22.1")
Depth 430mm (16.9")
Weight 60.5kg (133lbs), 73.4kg (161.5lbs) with stand
Enclosure Fibreglass Kevlar composite
Rigging Stack mounted or proprietary flying system
Finish Smooth cellulose
