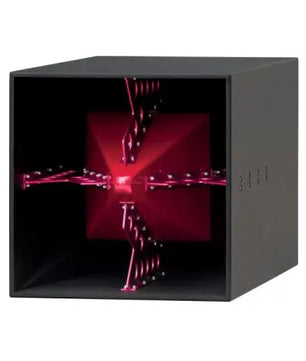

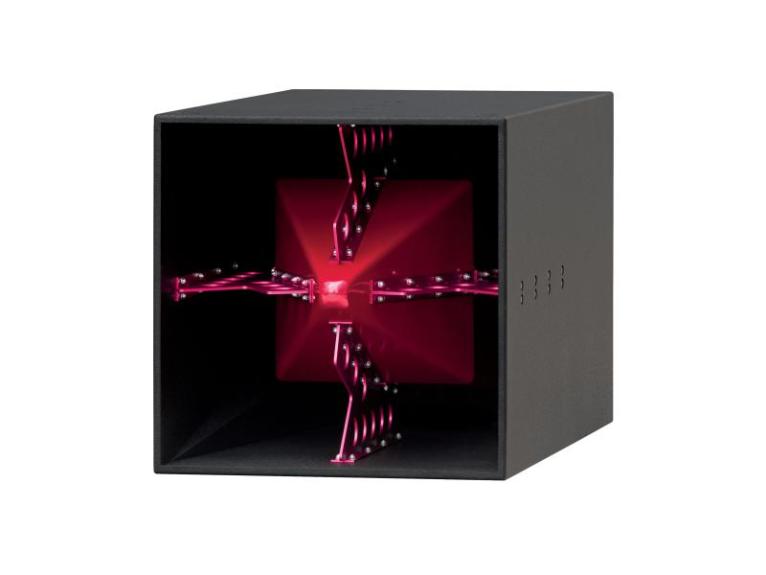

VOID Acoustics Hyperfold | Compact Folded Horn-Loaded Upper Bass Loudspeaker

High-Power, Compact Upper Bass Loudspeaker for Exceptional Bass Articulation

The Void Acoustics Hyperfold is a compact, folded horn-loaded upper bass loudspeaker designed to deliver unmatched speed and articulation in the critical upper bass frequencies. Featuring four high-power 15" low-frequency drivers housed in a durable 18mm birch plywood enclosure, the Hyperfold provides exceptional output and clarity in a compact footprint. Ideal for high-impact nightclubs, dance events, and live music venues, this powerful speaker ensures tight, punchy bass that drives the energy of any event.

Void Acoustics Hyperfold Competitive Differences

• High power density with four 15" low-frequency drivers for upper bass
• Folded horn design for exceptional bass speed and articulation
• Maximum output of 148 dB peak with arrayable design for increased output
• Distinctive lightweight aluminium bracing for enhanced structural integrity
• Durable 18mm birch plywood construction with TourCoat polyurea finish
• Arrayable design for increased output in large venues

Void Acoustics Hyperfold Description

The Hyperfold is a purpose-built upper bass loudspeaker, designed to deliver the fast, articulate bass needed to energize any high-impact nightclub or dance event. Equipped with four high-excursion 15" low-frequency drivers, the Hyperfold's folded horn design maximizes efficiency and output, ensuring tight, punchy bass that enhances the kick and finer details in the bass frequencies. The cabinet is constructed from 18mm birch plywood and reinforced with fibreglass and Kevlar, providing exceptional durability and acoustic performance. This upper bass enclosure is essential for applications where precision and speed in the bass region are critical. The Hyperfold's unique design allows for mutual coupling when arrayed, delivering significant gains in output beyond its already impressive 148 dB peak SPL. The speaker's lightweight aluminium bracing, combined with its compact design, ensures easy installation and integration into larger sound systems such as the Incubus Club System. With its rugged TourCoat polyurea finish and smooth cellulose coating, the Hyperfold is built to withstand the demands of both indoor and outdoor events.

Void Acoustics Hyperfold Features

• Compact folded horn-loaded upper bass loudspeaker
• Four high-power 15" low-frequency drivers for superior bass articulation
• Arrayable design for increased output in large venues
• 109.5 dB efficiency for high performance with minimal power input
• Distinctive aluminium bracing for enhanced structural integrity
• Durable 18mm birch plywood construction with reinforced fibreglass and Kevlar
• TourCoat polyurea finish for rugged durability and protection
• Compatible with 4-pole SpeakON™ NL4 connectors

Void Acoustics Hyperfold Specifications

• Frequency Response: 60 Hz - 190 Hz ±3 dB
• Efficiency: 109.5 dB 1W/1m
• Crossover Points: Preset via dedicated processor
• Impedance: 2 x 4Ω
• Power Handling: 4000W RMS
• Maximum Output: 142 dB continuous, 148 dB peak
• Driver Configuration: 4 x 15" low-frequency drivers
• Dispersion: Array dependent
• Connectors: 2 x 4-pole SpeakON™ NL4
• Dimensions (HxWxD): 738mm x 738mm x 1218mm (29" x 29" x 47.9")
• Weight: 115 kg (253.5 lbs)
• Enclosure: 18mm birch plywood
• Finish: Textured TourCoat polyurea, smooth cellulose
