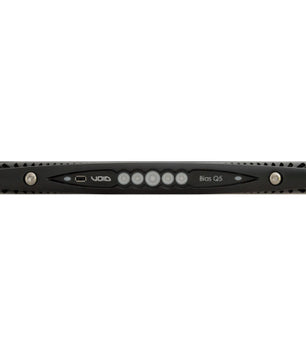

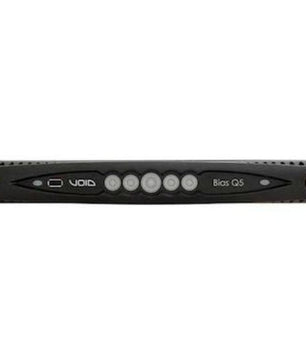

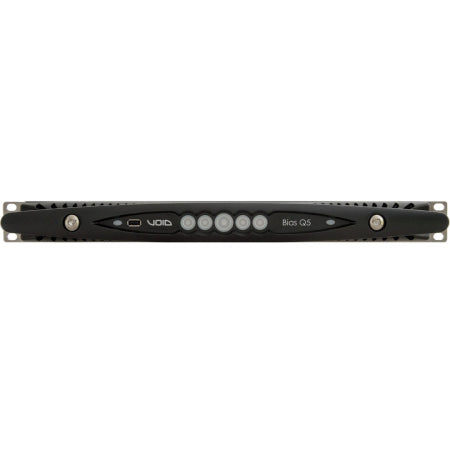

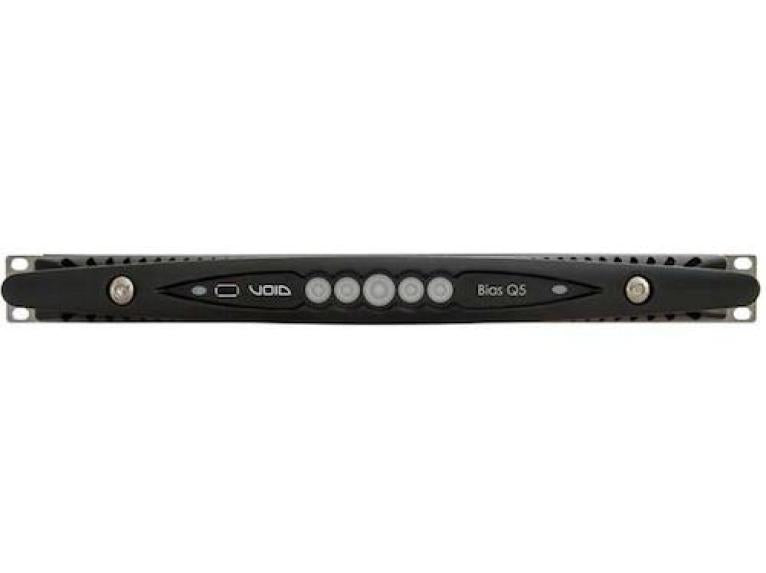

VOID Acoustics Bias Q5 | 5200W 4-Channel DSP Amplifier with Versatile Power Supply

Premier-Grade Power in a Compact, Versatile Amplifier

The Void Acoustics Bias Q5 is a high-performance 4-channel amplifier designed to deliver 5200W per channel at 2Ω, making it ideal for both bass enclosures and high-power full-range systems. Featuring advanced DSP for low latency sound shaping and speaker management, the Bias Q5 is perfect for professional audio installations and touring applications. Its innovative power supply supports single-phase, bi-phase, or three-phase operation from 85 VAC to 460 VAC, ensuring optimal power efficiency and flexibility for any system configuration.

Void Acoustics Bias Q5 Competitive Differences

• 4 x 5200W output at 2Ω, with up to 10400W bridged at 4Ω
• Supports single-phase, bi-phase, and three-phase operation with power factor correction
• Advanced DSP with low latency, channel mixing, and routing
• Compatible with analogue and digital AES3 inputs for flexible system integration
• Total integration with Armonia Pro Audio Suite™ for remote control via smartphones and tablets
• Extremely low distortion (THD+N < 0.5%) and high damping factor (> 5000 @ 8Ω)

Void Acoustics Bias Q5 Description

The Void Acoustics Bias Q5 amplifier is designed to provide reliable, high-powered performance in the most compact package possible. Delivering up to 5200W per channel at 2Ω and 10400W bridged at 4Ω, this amplifier is perfect for powering bass enclosures or full-range speaker systems in various configurations. The flexible power supply supports single-phase, bi-phase, and true three-phase operation with power factor correction, making it highly efficient and adaptable to a wide range of electrical environments. The Bias Q5's advanced DSP ensures precise sound control with low latency, offering a full range of signal processing options, including FIR and IIR equalizers, limiters, and customizable crossovers. With support for both analogue and digital AES3 inputs, the Bias Q5 provides seamless integration into existing audio setups. Full Ethernet connectivity ensures easy integration into networked systems, and remote control is possible through the Armonia Pro Audio Suite™ software, allowing for real-time adjustments via smartphone or tablet. Whether used in fixed installations or mobile setups, the Bias Q5 offers unmatched flexibility, reliability, and sound quality. Its high-efficiency power supply minimizes carbon footprint and reduces operational costs, making it an environmentally conscious choice for audio professionals.

Void Acoustics Bias Q5 Features

• 4 x 5200W output at 2Ω, 4000W at 2.7Ω, and 3000W at 4Ω
• Bridged output: 10400W at 4Ω, 6000W at 8Ω
• Supports single-phase, bi-phase, and three-phase operation from 85 VAC to 460 VAC
• Advanced DSP with channel mixing, routing, and low-latency signal processing
• Dual 24-bit AD/DA converters with high dynamic range and low distortion
• Customizable crossovers with Butterworth, Linkwitz-Riley, Bessel, FIR, and FIR-IIR hybrid filters
• Integration with Armonia Pro Audio Suite™ for remote control via smartphone or tablet
• Supports 100 Mbps and Gigabit Ethernet for seamless network integration
• High damping factor (> 5000 @ 8Ω) for superior sound control
• Environmentally friendly power supply with reduced carbon footprint

Void Acoustics Bias Q5 Specifications

• Number of Channels: 4
• Output Power per Channel:
  • 5200W @ 2Ω
  • 4000W @ 2.7Ω
  • 3000W @ 4Ω
  • 1600W @ 8Ω
• Bridged Output Power:
  • 10400W @ 4Ω
  • 6000W @ 8Ω
• Frequency Response: 20 Hz - 20 kHz (±0.5 dB)
• Input Impedance: 20 kΩ Balanced
• THD+N: < 0.5% (typical < 0.01%)
• Peak Output Voltage: 175 V
• Peak Output Current: 130 A
• Damping Factor: > 5000 @ 8Ω (20 Hz - 500 Hz)
• Dimensions: 1.75” (H) x 19” (W) x 19.5” (D) (44.5 mm x 483 mm x 495 mm)
• Weight: 33 lbs (15 kg)
