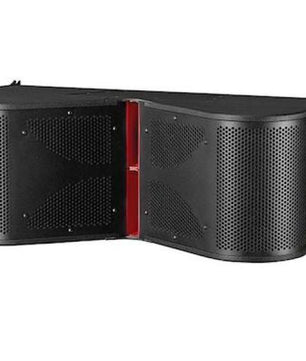

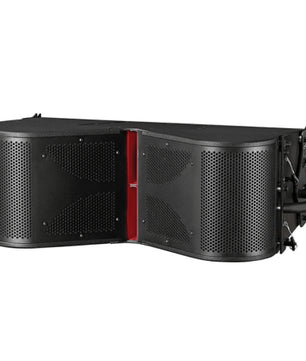

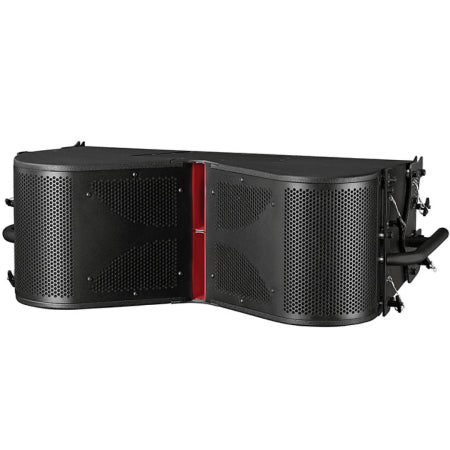

High-Performance Line Array Module for Large-Scale Events

The Arcline 8 is a two-way active, three-way line array module designed for both indoor and outdoor events, touring, and live music venues. With a true cylindrical wavefront and 110° horizontal dispersion, the Arcline 8 delivers uniform sound across large audiences. Its advanced rigging system allows for quick setup with pre-selected angles, reducing labor and ensuring precise coverage. The horn-loaded low-mid section and new high-frequency horn design provide exceptional sound quality, even in challenging acoustic environments.

Arcline 8 Competitive Differences

110° horizontal dispersion with uniform polar pattern
True cylindrical wavefront for even sound distribution
Advanced rigging system for fast and easy setup
Phase shading device for optimized acoustic coupling
Horn-loaded low-mid drivers for enhanced projection
Lightweight 15mm birch plywood enclosure with textured TourCoat finish
Ground stackable design for flexible installations

Arcline 8 Description

The Arcline 8 is a compact yet powerful line array module that brings advanced sound technology to large-scale events and venues. Equipped with two 8" horn-loaded low-frequency drivers, two 8" midrange drivers with a phase device, and two 1.4" compression drivers, this speaker ensures high efficiency and clarity across its frequency range. The speaker's unique phase shading device and cylindrical wavefront technology provide consistent sound quality from front to back, eliminating common high-frequency performance compromises found in traditional line arrays. Designed with flexibility and ease of use in mind, the Arcline 8 features a rigging system that allows angles to be pre-selected before flying the system, reducing setup time and the need for additional rigging personnel. The lightweight 15mm birch plywood enclosure, finished in a durable TourCoat polyurea, ensures longevity while keeping weight low for easier transportation and installation. Whether used in indoor clubs or outdoor festival stages, the Arcline 8 offers precision, power, and ease of use.

Arcline 8 Features

110° horizontal by 12° vertical dispersion for wide coverage
True cylindrical wavefront design for consistent SPL across large areas
Dual 8" horn-loaded low-frequency drivers
Dual 8" midrange drivers with phase device
Dual 1.4" high-frequency compression drivers
Pre-selected rigging angles for quick setup
Ground stackable for flexible deployment options
Durable 15mm multi-laminate birch plywood enclosure with TourCoat polyurea finish
Perforated steel grille with foam filter for driver protection

Arcline 8 Specifications

Frequency Response:
- Single enclosure: 110 Hz - 20 kHz
- Three enclosures: 90 Hz - 20 kHz ±3 dB
Sensitivity (1W/1m):
- LF: 97 dB (100 dB referenced to 1W)
- MF/HF: 103 dB (106 dB referenced to 1W)
Impedance: 2 x 16 Ohms
Power Handling:
- LF: 500 Watts AES
- MF/HF: 500 Watts AES
Maximum Output: 128 dB continuous, 145 dB peak
Driver Configuration:
- 2 x 8" mid drivers with phase device
- 2 x 8" horn-loaded low-frequency drivers
- 2 x 1.4" high-frequency compression drivers
Dispersion: 110° horizontal by 12° vertical
Connectors: 2 x 4-pole SpeakON™ NL4
Dimensions (HxWxD): 11.2" x 34.7" x 18.5" (285mm x 881mm x 470mm)
Weight: 86 lbs (39 kg)
Enclosure: 15mm multi-laminate birch plywood
Rigging: Pre-selectable rigging angles, ground stackable
Finish: Textured polyurea
Grille: Perforated steel with foam filter
