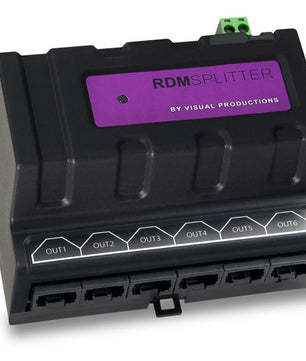

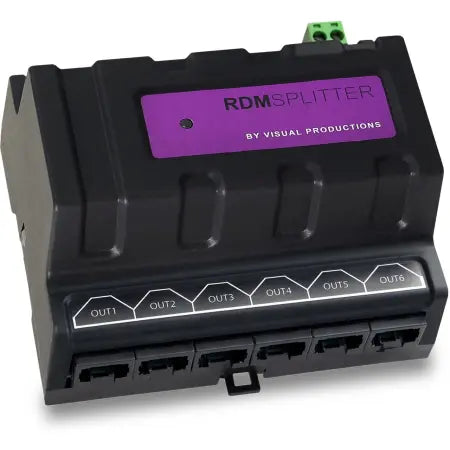

Visual Productions RDM Splitter (RJ)

$457.50

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

The widespread data protocol for lighting equipment is DMX-512. It is a very successful protocol with, however, a few limitations. The maximum number of attached devices is limited to 32 and they all have to be connected in bus-topology having one cable running via each device. Furthermore, a DMX cable should not be longer than 300 meters.

The DIN Rail DMX Splitter from Visual Productions helps tackle those inconvenient limitations. The Splitter takes a DMX signal and sends it out again on its 6 DMX output ports allowing a star-topology for efficient cable usage. Each output port is capable of driving 32 more devices. The Splitter can also function as a signal booster as each port supports another 300 meter long connection.

The DIN Rail DMX Splitter is designed with installers and system integrators in mind. The Splitter features a DIN Rail enclosure that allows easy mounting. There are two models avialable: one with detachable terminal connections for a quick replacement of the unit. And one model with RJ-45 connectors to further reduce the time required to create a DMX network on site.

The DMX input port is protected through optical isolation, safe guarding the Splitter and its connected equipment against power surges and dangerous ground loops.

Specifications:

DIN Rail mounting
DMX512-A (ANSI E1.11)
RDM (ANSI E1.20)
RJ-45 connectors
6 outputs
Optical Isolation (individual per port)
9-24V DC 500mA (PSU optional)
Operating temperature -20 C to +50-deg C (-4 F to 122-deg F)
Compliance EN55103-1 EN55103-2
