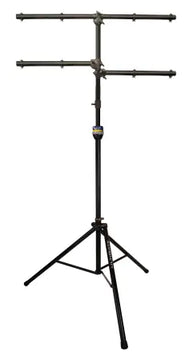

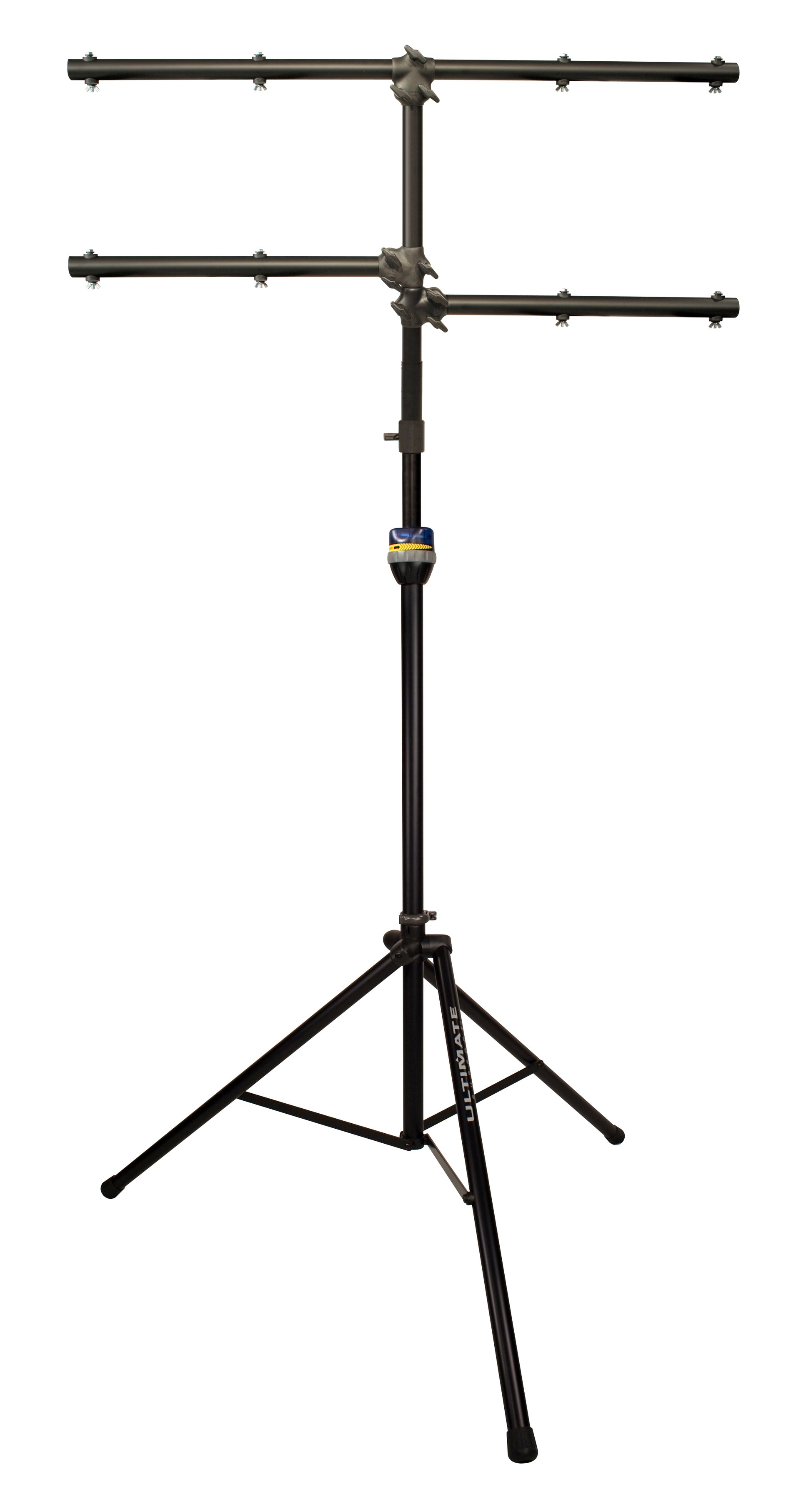

Ultimate Support LT-99B (Ultimate LT99B)
LT Series Multi-tiered, Heavy-duty, Extra Tall Lighting Tree with TeleLock
Lift-assist Technology
LT-99B
The LT Series lighting tree and accessories from Ultimate Support are amazingly
durable and sturdy, yet lightweight and affordable. The LT-99B and LT-88B are
turnkey lighting trees that feature over-sized heavy wall aluminum tubing and
extra height. Also available in the LT Series is the LTB-48B T-style lighting
crossbar, LTB-24B lighting sidebars, and the LTV-24B 24 vertical extension. All
LT Series system from Ultimate Support come complete with a Limited Lifetime
Warranty.
LT-99B Product Breakdown:
TeleLock Lift-assist Stand
LTV-24B Vertical Extension
LTB-48B T-style Lighting Crossbar
LTB-24B Lighting Sidebars
Over-sized Heavy Wall Aluminum Tubing
TeleLock Lift-assist Stand
The LT-99B is one of the easiest lighting tree stands to use thanks to its
patented TeleLock collar. Set the TeleLock collar to either the "Raise" or
"Lower" setting and the Auto-lock technology provides just the right amount of
resistance to allow you to raise or lower the lighting tree while locking the
tube in place as you go. And, the fail-safe internal friction device won't allow
your lighting gear to slide down once it's in the "Lock" position. It's like
having tour support built into your lighting tree stand!
LTV-24B Vertical Extension
The LTV-24B is a 24-inch vertical extension tube that fits on top of the LT-99.
While the TeleLock tripod stand is plenty tall on its own, by adding the LTV-24B
to the stand, we make it plenty tall for al your lighting needs! With the
addition of the LTB-48B t-style lighting crossbar and LTB-24B, you have a
professional, sturdy lighting tree.
LTB-48B T-style Lighting Crossbar
The LTB-48B is a 48" T-style lighting crossbar that features four pre-drilled
holes for mounting your lighting equipment to - we've even included mounting
hardware to get you started. It's constructed with thick-walled aluminum so
while it's amazingly light, it's rated for use with C-clamps (not included). The
LTB-48B also includes two UNF-150 mounting brackets for mounting lighting
equipment, such as dimmer packs, to the lighting tree.
LTB-24B Lighting Sidebars
The LTB-24B is a great and flexible way to add more lights to your Ultimate
Support lighting tree. It features two 24" sidebars that mount to the LTV-24B
Vertical Extension. The two sidebars are height-adjustable, so you can mount
them where you need them on the pole for maximum flexibility. Each LTB-28B
sidebar features two pre-drilled holes for mounting your lighting equipment to
(mounting hardware included).
Over-sized Heavy Wall Aluminum Tubing
The entire stand (legs, mast, and telescoping tube) uses oversized, heavy-walled
aluminum tubing for durability, functionality, and weight savings. The LT-99B
will not rust or corrode (thanks to its architectural anodized finish), is very
smooth to operate, and is extraordinarily strong yet lightweight.
LT-99B Specs:
Part Name: LT-99B
Part Number: 17347
Included Components: TS-99B aluminum tripod stand, LTV-24B 24" Vertical
Extension, LTB-48B 48" T-style Lighting Crossbar, LTB-24B 24" Lighting Sidebars
(Qnty: 2)
Base Diameter: 62" (1575 mm)
Height: 7' 2" to 11' 2" (2184 mm to 3406 mm)
Weight: 19.6 lbs (8 kg)
Telescoping Tube Diameter: 1.5" (38 mm)
Adapter Diameter: 1.375" (35 mm)
Load Capacity: 150 lbs. (68.2 kg)
