Trusst QT-Goal

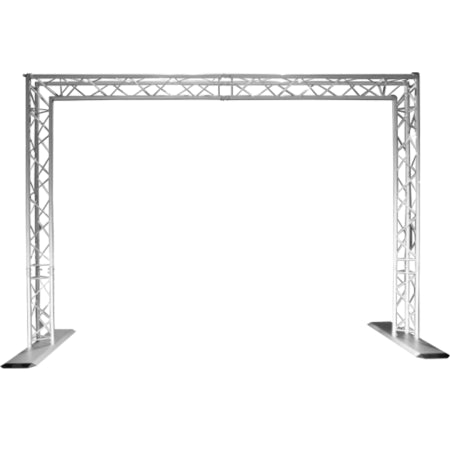

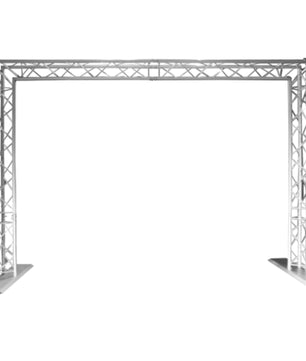

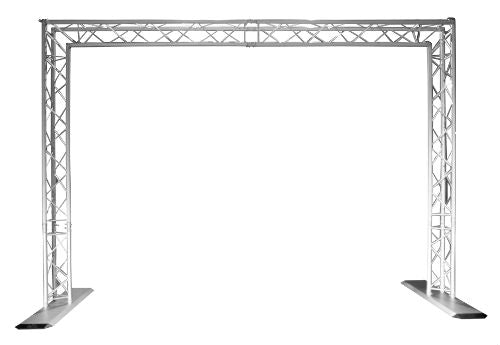

Goal Post truss Kit is a lightweight 35 mm triangular truss providing the perfect location to mount lights and hang backdrops such as the popular CHAUVET® DJ MotionDrape™ LED, for a professional presentation. It assembles in minutes using numbered sections.
For added value and versatility, the lightweight aluminum truss can be assembled at two different heights. Lighting truss kits such as the arch kit and goal post kit are perfect for venues with low ceilings or even your home with height of 7.8ft.
To simplify transportation, use the optional, custom-designed CHS-Goal VIP Gear Bag to carry the entire kit on the road. To attach lighting and other effects securely and safely to the Goal Kit, use the optional CLP-35HC clamp. Get a professional look in minutes with this affordable solution designed for DJs, bands, or any entertainer on the go.
Lost or misplaced hardware for the Goal Kit can easily be replaced with these convenient kits.

Features:
• Portable goal post truss system designed to enhance any mobile set up at any size venue
• Quick and easy set up and tear down with pre-labeled connections and quick release pins
• Enhances durability and corrosion resistance with aluminum construction
• Holds up to 595lbs (270kg) (evenly distributed) when fully assembled
• Designed to fit CHAUVET DJ MotionDrape LED
• Match any setup with selectable 5.5ft or 7.7ft height options
• Fits best in the CHAUVET DJ CHS-Goal VIP Gear Bag
• Clamp that fits best with 35 mm truss is the CLP-35HC

Specifications:
• Outer diameter tube: 1.38 in (35 mm)
• Diagonal bracing: 0.31 in (8 mm)
• Centerpoint load: 243 lb (110 kg)
• Distributed load: 595 lb (270 kg)
• Wall thickness: 0.2 in (5 mm)
• Weight: 98lb (44.4 kg)
• Size (assembled): 11.2 x 3.8 x 7.7 ft (3.4 x 1.1 x 2.3 m)
• Size (internal): 9.9 x 7 ft (3 x 2.1 m)
• Size (external): 11.2 x 7.7 ft (3.4 x 2.3 m)
• Base plate dimensions: 43.3 x 10.7 x 1.5 in (1100 x 273 x 38 mm)
