Advanced DMX, RDM, Art-Net & sACN Signal and Cable Tester

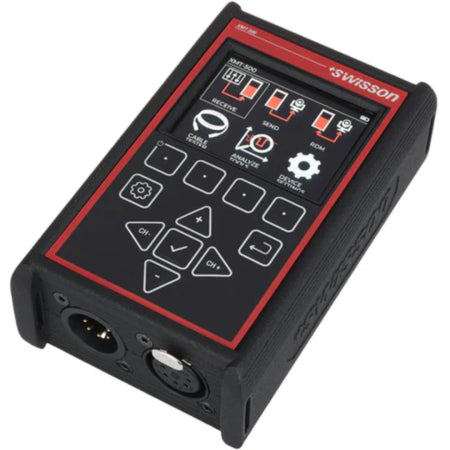

The Swisson XMT-500 is a powerful handheld device designed for professionals working with DMX and network-based lighting control systems. It offers comprehensive testing, monitoring, and configuration tools for DMX, RDM, Art-Net, and sACN signals, making it an essential tool for lighting technicians, system integrators, and installers.
Swisson XMT-500 Competitive Differences
- Send or receive data from any Art-Net or sACN universe via etherCON
- View or transmit DMX values to any channel
- Remotely locate and configure RDM-compliant fixtures
- Real-time monitoring of timing aspects in DMX and RDM signals
- Automatic cable diagnostics for 3-pin, 5-pin XLR, and RJ-45 cables
- Sunlight-readable, full-color IPS TFT display for high visibility
- USB-C rechargeable Li-ion battery with high-capacity runtime
- Expandable firmware and memory — "designed to grow with your needs"
Swisson XMT-500 Description
The Swisson XMT-500 provides unmatched functionality for professionals managing lighting data networks. With support for DMX, RDM, Art-Net (v1–4), and sACN (including draft versions), the XMT-500 allows for seamless communication, control, and diagnostics across all major lighting protocols.
Its advanced capabilities include sending and receiving Art-Net and sACN data, direct control of DMX channels, and robust RDM support for locating and configuring fixtures remotely. The device also serves as a real-time signal analyzer, offering visibility into data transmission flow and timing issues, enabling faster troubleshooting.

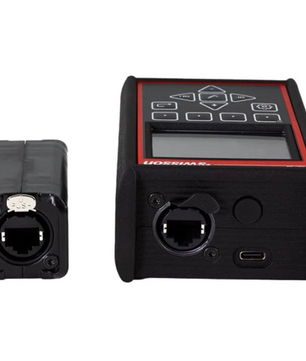

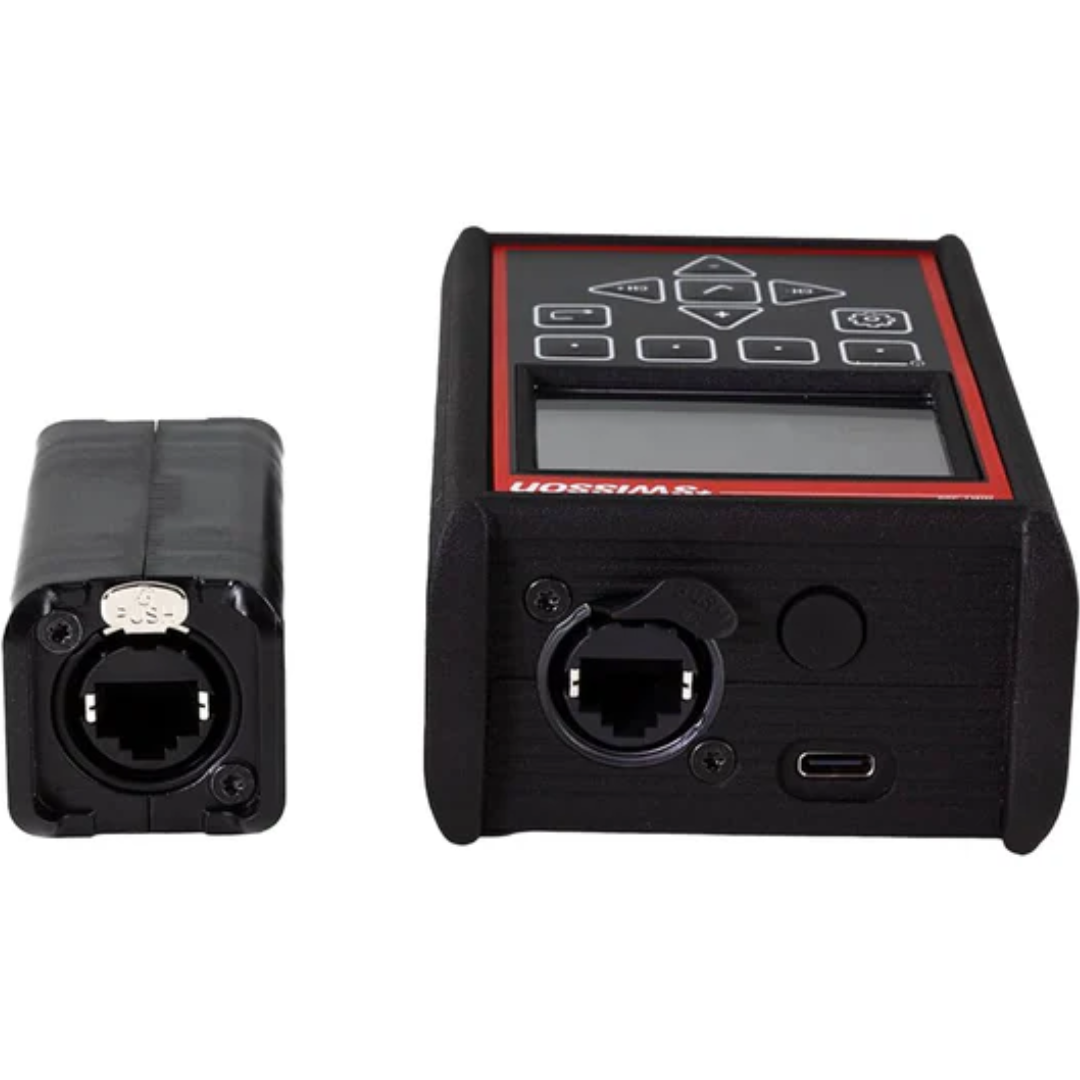

When hardware is the culprit, the integrated cable tester diagnoses 3-pin, 5-pin XLR, and RJ-45 cables, even when installed. This eliminates guesswork in system troubleshooting. The intuitive menu system and high-contrast 2.4” TFT display make it easy to navigate in bright environments, while the rechargeable Li-ion battery ensures hours of field use. With USB-C charging and a rugged form factor, it’s engineered for flexibility and portability.
Built with powerful internal processing and ample memory, the XMT-500 is future-proof — ready for firmware updates and feature expansions as your setup evolves.
XMT-500 Features
- DMX signal transmission and monitoring
- RDM fixture location and configuration
- Art-Net 1–4 and sACN (including draft v0.2) support
- Real-time analysis of DMX and RDM signal timing
- Built-in cable tester for 3-pin, 5-pin XLR, and RJ-45
- Bright 2.4” IPS TFT color display
- Sunlight-readable and backlit for outdoor use
- USB-C rechargeable 3200mAh Li-ion battery
- Intuitive menu navigation with multifunction soft keys
- Upgradeable firmware and expandable memory
XMT-500 Specifications
- Display: 2.4” IPS TFT, full-color, backlit
- Battery: 3.6V, 3200mAh Li-ion (USB-C, 5V DC, 7.5W charging)
- Network Protocols: sACN, sACN draft v0.2, Art-Net 1–4
- DMX: ANSI E1.11
- RDM: ANSI E1.20
- Signal Ports: EIA-485
- Ethernet: 10BASE-T / 100BASE-TX, auto-negotiating, auto MDI-X
- Connectors: Neutrik etherCON, Neutrik 5-pin male/female XLR
- Ambient Operating Temperature: -4°F to +122°F (-20°C to +50°C)
- Dimensions (L x W x H): 4.8" x 2.95" x 1.7" (122 x 75 x 43 mm)
- Weight: 1 lb. (0.445 kg)
