No matter in terms of language, speech, meeting, host or live performance, it can be used in any situation, place and time to get rid of complex on-site layout needs and provide the most reliable links, and present the most authentic sound restoration at every moment. The main applications for business conmunication: conferences, primary and secondary education, hotels, higher education, religious places, enterprises and governments.
FEATURES:
Real time noise suppression: real-time elimination of background noise, so that users can fully focus onthe voice in the call.
Automatic frequency coordination: the system automatically scans the available spectrum and selects clear and clean transmission channels to achieve the best performance.
Interference avoidance: the system can detect and avoid unexpected interference, and channel adjustment can prevent interference to audio.
RF efficiency: perfect PLL RS stabilization technology can provide better sound quality and wider dynamic range, to ensure the highest quality sound in any environment.
Encryption: standard AES-128 encryption of audio and data can ensure the privacy of conference content Data control: provides control functions for central control, audio and speaker equipment, realizing video tracking, voice control. Etc.

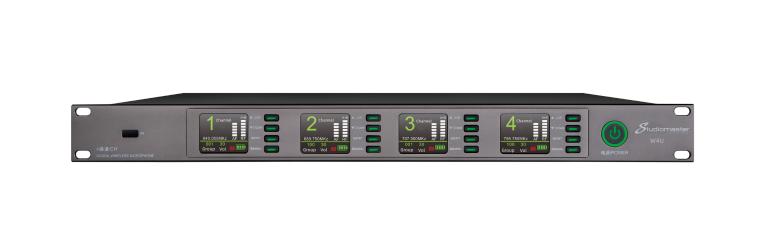

User-friendly interface: high-definition TFT color display screen provides a complete overview of system information, and enable users to set up shortcuts.

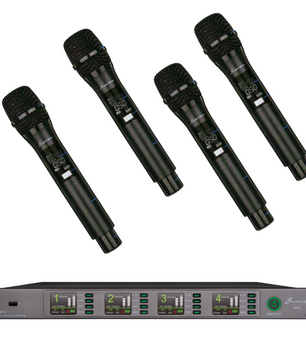

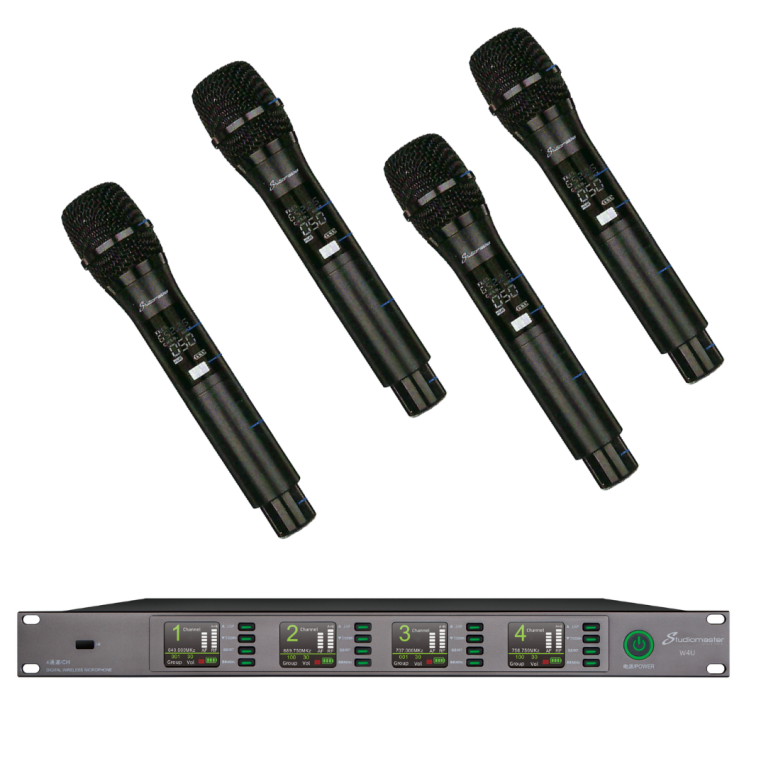

Power monitoring: real-time power monitoring of each transmitter, ensuring uninterrupted use in the field. Electronic volume: 30-level electronic volume control, can precisely control the volume of each channel. Multi-platform systems work together: the receiver provides 2/4/8 channels. The transmitter provides handheld, backpack, and desktop conference microphones. Users can mix and match them freely.
One-key frequency matching: one-key fast data synchronization between the receiver and the transmitter, convenient and fast.

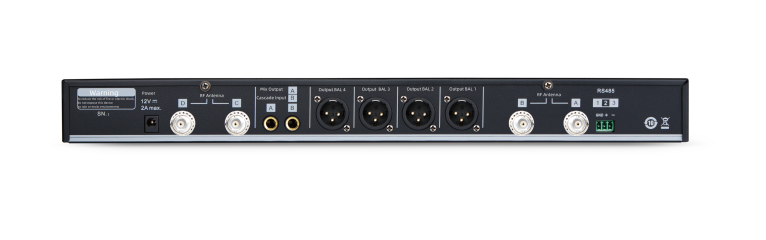

Multiple audio interface outputs: each channel has an independent balanced audio output XLR (male), a mixed output TS(6.35mm 2-core), and a cascade output TS (6.35mm 2-core).
Audio cascade: When multiple receivers are used in stacked, all receivers can achieve unified audio management through the cascade audio interface.
SPECIFICATIONS:
1. Number of receiver channels: 2, 4 and 8 channels are optional
2. Cabinet specification: EIA standard, 1U (2 and 4 channels), 2U (8 channels)
3. Receiving mode: superheterodyne secondary frequency conversion
4. Frequency oscillation mode: PLL phase locking frequency synthesis
5. Frequency response: 20Hz-20KHz (+ 1dB) (depending on the pickup)
6. Carrier wave frequency band: UHF UHF 520-580MKZ 610MHz-690MHz 707MHz-757MHz (optional according to different regions)
7. Band width: 40MHz - 80MHz
8. Number of channels: 400
9. Frequency sync: one button IR frequency sync setting
10. Modulation type: frequency modulation (FM) 11. Pilot frequency: 30.27KHz
12. RF sensitivity: <-99dBm
13. Image suppression: > 80dB
14. Frequency stability: ± 0.005% (-10-60 C) 15. Dynamic range: 90dB
16. Maximum frequency deviation: ± 45KHz 17. Comprehensive signal-to-noise ratio:>85dB (A-weighted)
18. Comprehensive distortion rate: < 0.5% @ 1 KHz 19. Sensitivity: input 6dB μ When V, S/N > 80dB 20. Audio output: balanced XLR:+5dbV/ unbalanced TS6.3mm:+5dbV/
21. Audio output impedance: balanced XLR: 6.6K 02/ unbalanced TS6.3mm: 440 Q
22. Volume output: 30 level electronic volume control
23. Display mode: 1.77 inch TFT color full view display
24. Display content: channel, frequency, group, antenna A+B automatic selection, RF/AF signal strength, transmitter battery power, RF strength setting, function locking, submenu display
25. Control mode: automatic frequency coordination, frequency adjustment, volume adjustment, interface locking, frequency pairing, power
switch
26. Control interface: RS485 code control 27. Audio output interface: unbalanced TS 6.35mm hybrid connector x 1
Independent balanced XLR audio connector x 2 (2 Channels)
Independent balanced XLR audio connector x 4 (4 Channels)
Independent balanced XLR audio connector x 8 (8 Channels)
28. Power supply: 12V DC 2000mA max 29. Power: 2-channel 5W, 4-channel 10W, 8-channel 20W
30. Working temperature: 10 C-60 C
31. Working distance: about 80m (working distance depends on many environmental factors,
including absorption, reflection and interference of RF signal)
32. Package size: 520x405x70mm (one driven two) 520x350x170mm (one driven two conferences, one driven four)
520x405x295mm (one driven eight)
33. Weight: about 4.8kg (conference, one driven two) 5.7kg (conference, one driven four) 12.2kg(conference, one driven eight)
