Compact 12-Input Mixer with DSP Effects for Professional Audio Control

The Studiomaster C3X is a versatile 12-input mixer packed with professional-grade features in a compact 1U rackmount design. Ideal for both live and studio environments, this mixer offers pristine sound quality, flexible input options, and an integrated DSP effects processor, making it perfect for handling various audio setups, from live performances to studio recordings.

Studiomaster C3X Competitive Differences

12 total inputs in a 1U 19" rack-mountable design for space efficiency.
Custom DSP effects processor with reverb, delay (10ms to 720ms), and more.
4 balanced XLR and Jack mic inputs with studio-grade 3-band EQ.
4 stereo inputs with 2-band EQ for flexible connectivity.
Front and rear panel mic inputs for convenient access.
Phantom power for condenser microphones.

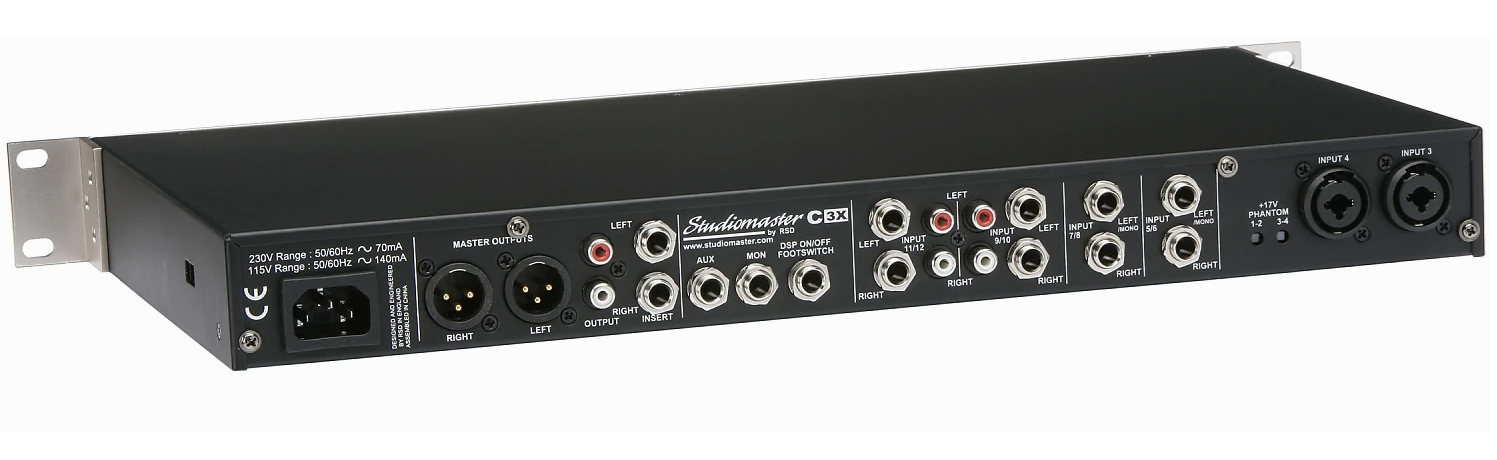

Balanced XLR and RCA outputs with peak reading LED metering.

Studiomaster C3X Description

The Studiomaster C3X is a high-performance mixer designed to deliver professional sound in a compact form factor. Offering 12 inputs, including 4 microphone channels with a 3-band EQ, and 4 stereo inputs with RCA/phono and Jack connectors, the C3X provides flexibility for various audio sources like microphones, keyboards, and playback devices. Its built-in custom DSP effects processor offers high-quality reverbs, delays, and more, with adjustable parameters to fine-tune your sound. Whether you're working with live vocals or mixing instrument playback, this unit delivers studio-grade performance with ease. The mixer includes balanced XLR and RCA outputs, as well as LED metering for precise level monitoring. Designed with convenience in mind, two of the mic inputs are accessible on the front panel, and phantom power is available for condenser mics. With robust features like aux sends and EQ control, the Studiomaster C3X ensures complete control over your mix, all in a rack-mountable package.

Studiomaster C3X Features

12 total inputs: 4 mic inputs with 3-band EQ and 4 stereo channels with 2-band EQ.
Custom DSP effects: 8 reverbs, delay (10ms - 720ms), and regen control (0%-90%).
Balanced XLR and RCA/phono connectors for inputs and outputs.
Front panel LED metering for easy level monitoring.
Phantom power for condenser microphones.
1U rackmountable design for space efficiency.

Studiomaster C3X Specifications

Total Inputs: 12.
Mic Inputs: 4 (with 3-band EQ: Hi, Mid, Lo).
Stereo Inputs: 4 (with 2-band EQ: Hi, Lo).
Frequency Response: 22Hz – 40kHz (+/-0.5dB).
Distortion (THD @ 1kHz): 0.008%.
Residual Noise: -93dBu.
Dynamic Range: >105dBu.
Metering: 4-segment, 2-color LED bargraphs.
DSP: 8x Reverb, Delay 10ms to 720ms, Regen 0%-90%.
Maximum Output Levels: XLR +23dBu, RCA +17dBu, Aux & Monitor +23dBu.
Power Requirements: 115-240V ~ 50/60Hz, 70-140mA max.
Dimensions (W x H x D): 482 x 44 x 265 mm (19" x 1.7" x 10.4").
Weight (Net/Shipping): 3.7kg / 4.7kg (8.2 lbs / 10.4 lbs).

What's In The Box

(1) Studiomaster C3X 12-Input Rackmount Mixer with DSP Effects
