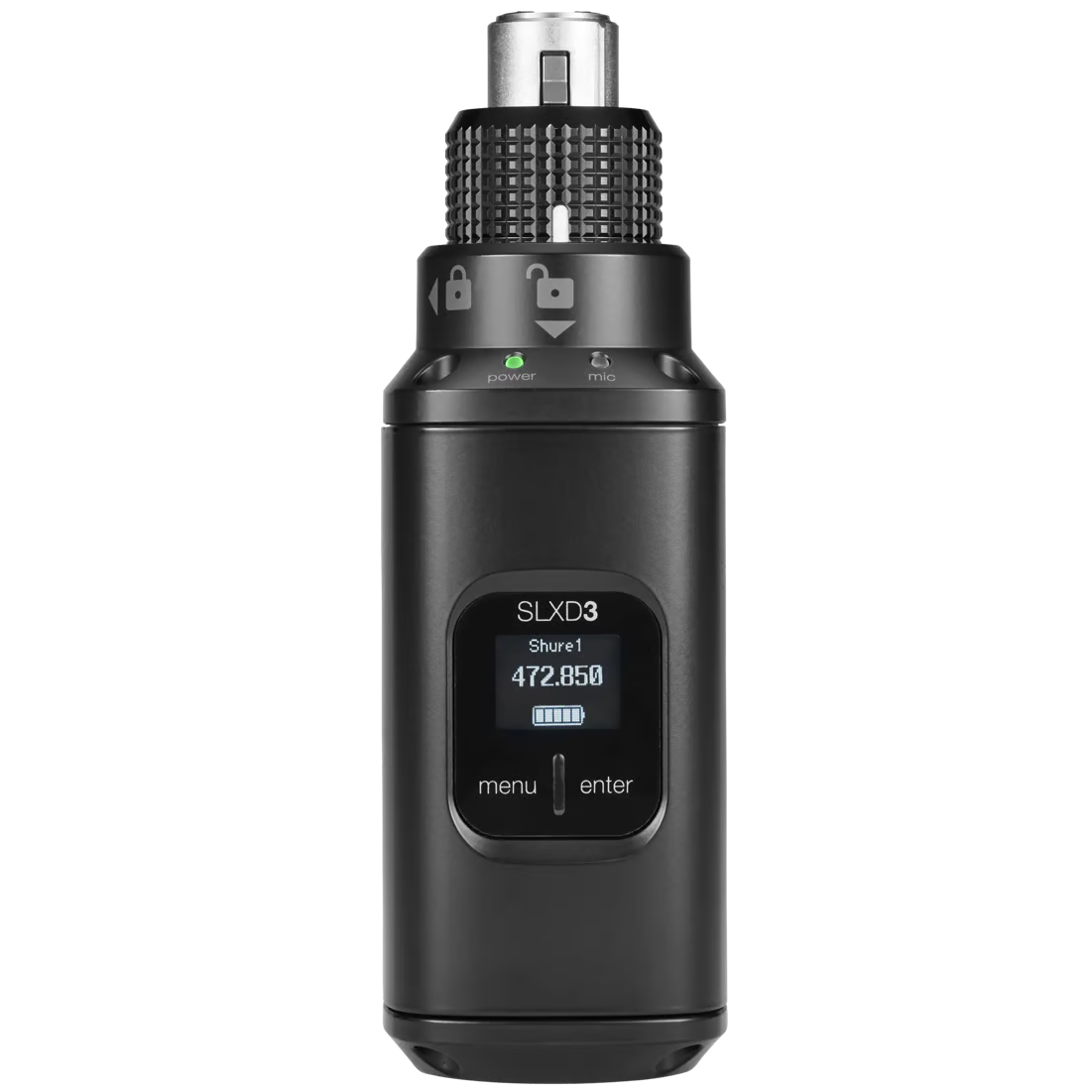

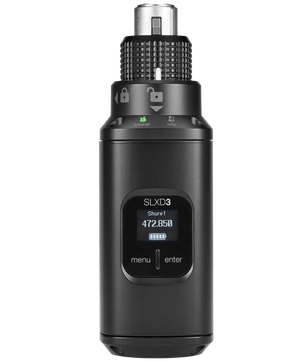

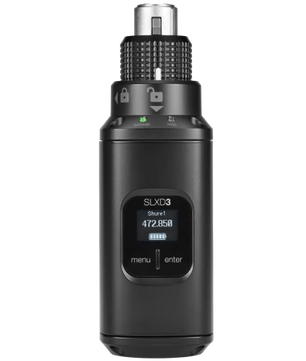

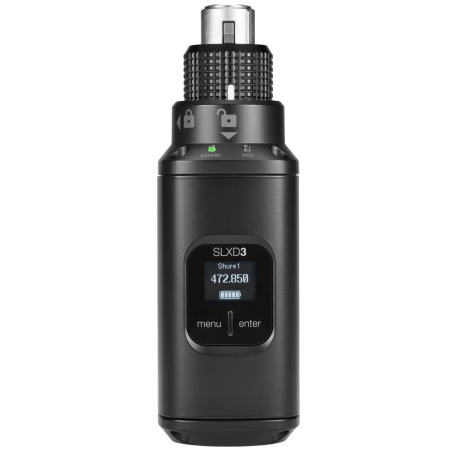

Shure SLXD3 Plug-On | Wireless Transmitter with XLR Connector, 24-bit Digital Audio (G58: 470 to 514 MHz)

Convert Any XLR Source to Wireless with the Shure SLXD3

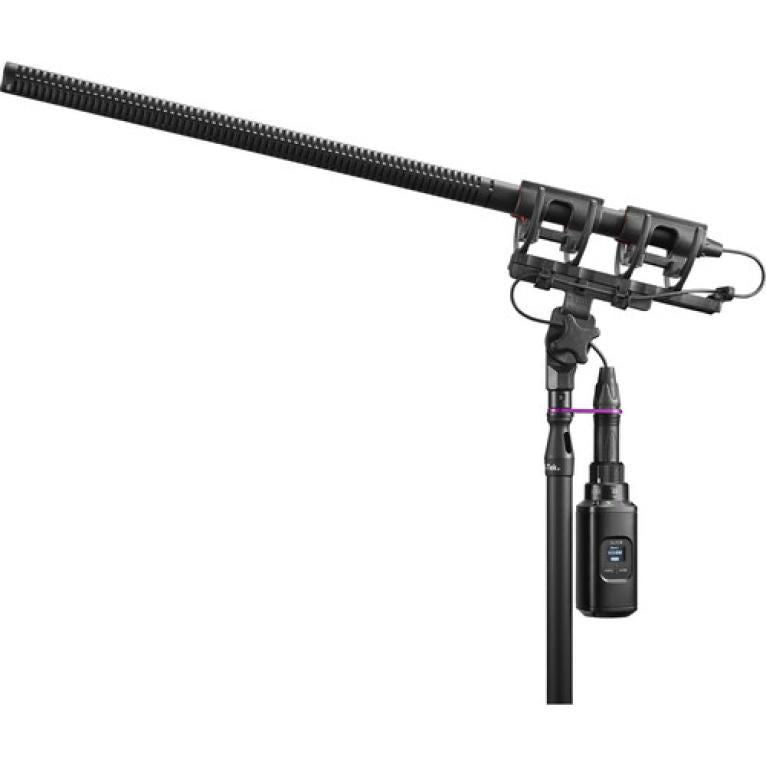

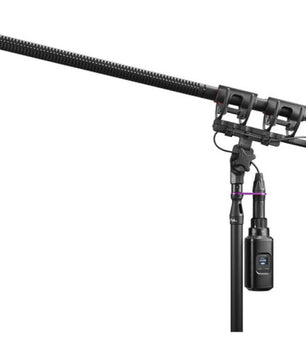

The Shure SLXD3 Plug-On Digital Wireless Transmitter allows you to convert any XLR-equipped source, including dynamic and condenser microphones, into a wireless transmitter for use within the Shure SLX-D wireless system. Featuring Shure’s patented locking ring for a secure and stable connection, the SLXD3 ensures a wobble-free attachment to your microphone or XLR device. With its 24-bit digital audio transmission, the SLXD3 provides exceptional sound quality, sending clear and reliable RF signals to SLXD4 and SLXD5 Digital Wireless receivers.

The SLXD3 supports phantom power for condenser microphones, has a wide frequency range of 20 Hz to 20 kHz, and offers three selectable power levels. The built-in OLED screen provides at-a-glance system statuses, including battery life and transmission frequency. Use the IR Sync feature for easy pairing with receivers. Whether used with AA batteries or an optional Shure SB903 rechargeable battery, the SLXD3 offers up to 8 hours of continuous operation. A rugged metal design ensures durability for professional use.

Shure SLXD3 Competitive Differences

• Patented Locking Mechanism: Secure, wobble-free connection to XLR sources with Shure's patented locking ring design.
• 24-bit Digital Audio: Delivers high-fidelity audio with a wide frequency range of 20 Hz to 20 kHz.
• Rechargeable Option: Works with AA batteries or the optional SB903 rechargeable lithium-ion battery for long-lasting use.
• IR Sync for Easy Pairing: Quickly and easily pair the SLXD3 with SLXD4 and SLXD5 receivers using the IR Sync feature.
• Durable Metal Construction: Built for rugged, professional use on stage or in the field.

Shure SLXD3 Features

• Converts any XLR microphone or source to wireless transmission
• Provides +12–48 VDC phantom power for use with condenser microphones
• Patented locking ring for secure connection
• Transparent 24-bit digital audio transmission
• 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Switchable power levels: 1/10/30 mW (region and band-dependent)
• 44 MHz tuning bandwidth (region dependent)
• Up to 32 available channels per frequency band (region dependent)
• Digital predictive switching diversity for stable RF performance

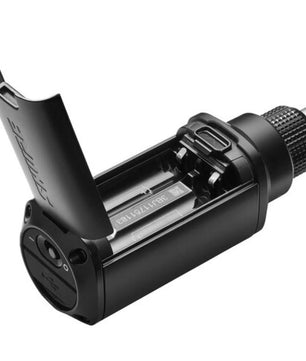

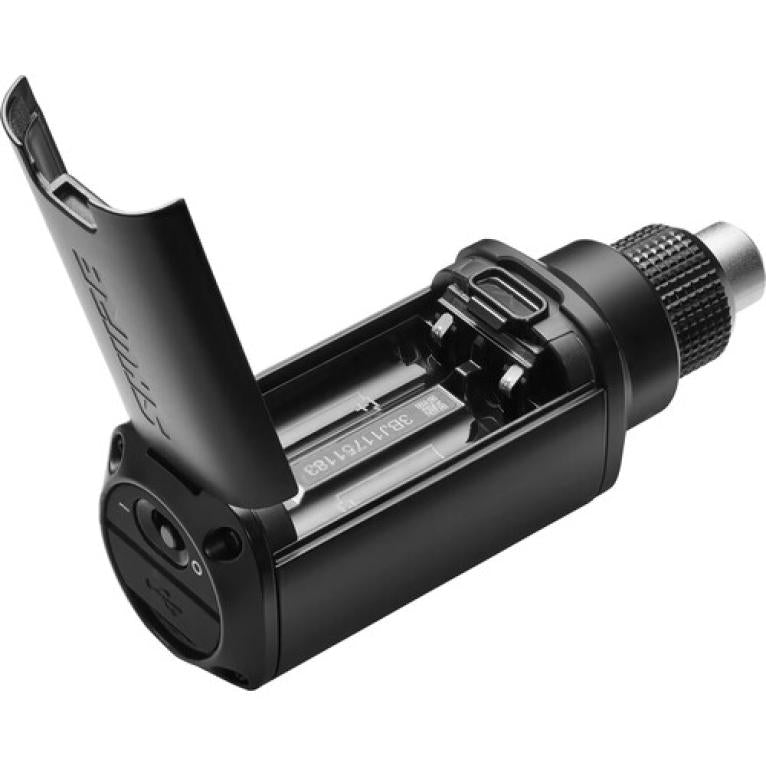

• Up to 8 hours of battery life from 2 AA batteries or optional SB903 rechargeable battery
• Rugged metal construction for durability

Specifications

• Audio Transmission: 24-bit digital
• Frequency Range: 20 Hz to 20 kHz
• Dynamic Range: 118 dB
• Power Levels: Switchable 1/10/30 mW (region dependent)
• Tuning Bandwidth: 44 MHz (region dependent)
• Battery Life: Up to 8 hours with 2 AA batteries or SB903 rechargeable battery
• Construction: Rugged metal body

What's in the Box

• 1 x SLXD3 Plug-On Digital Wireless Transmitter
• 1 x Leather Protective Sleeve with Integrated Belt Clip
• 1 x Zippered Carrying Pouch
• 2 x AA Alkaline Batteries
