Shure SBC203 | Dual-Docking Recharging Station

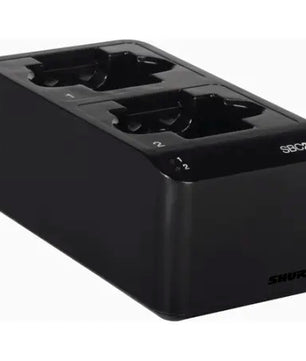

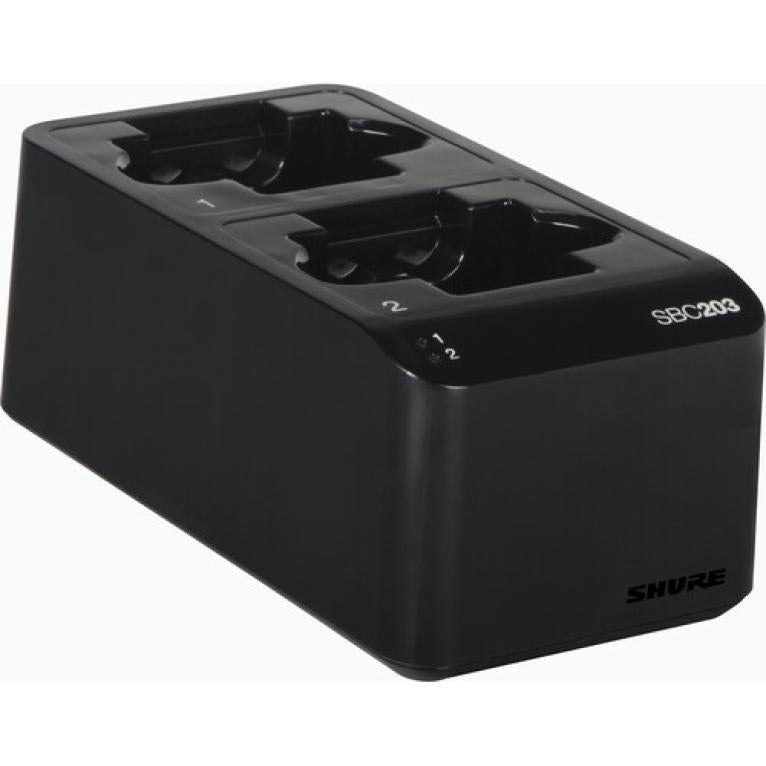

Shure SBC203 Dual-Docking Recharging Station

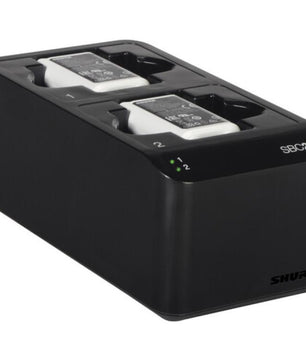

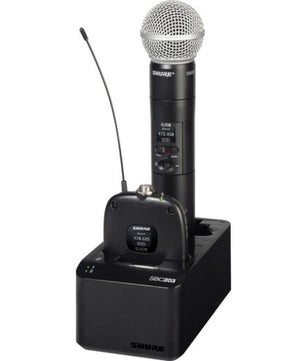

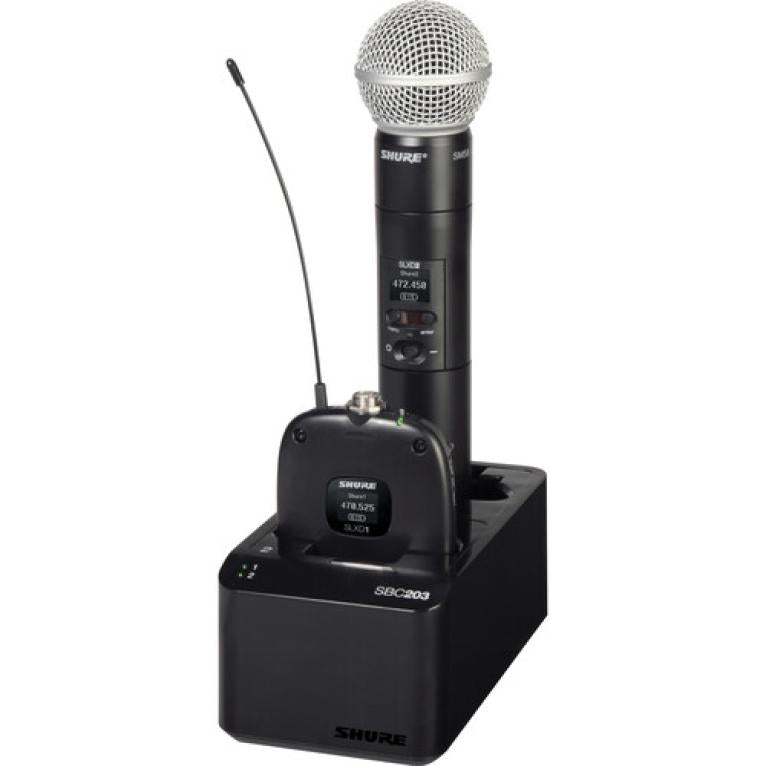

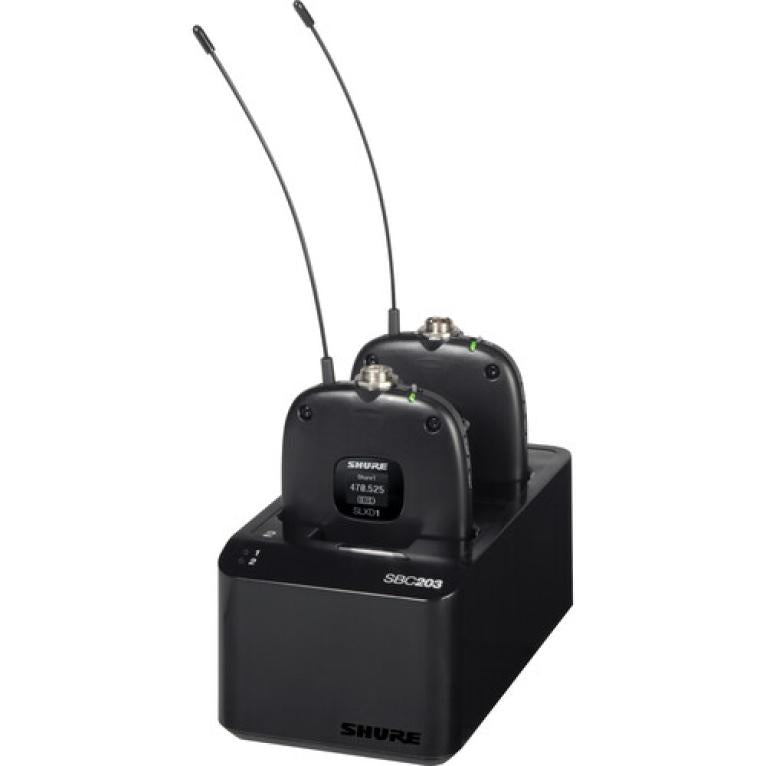

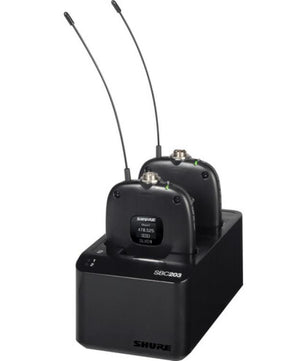

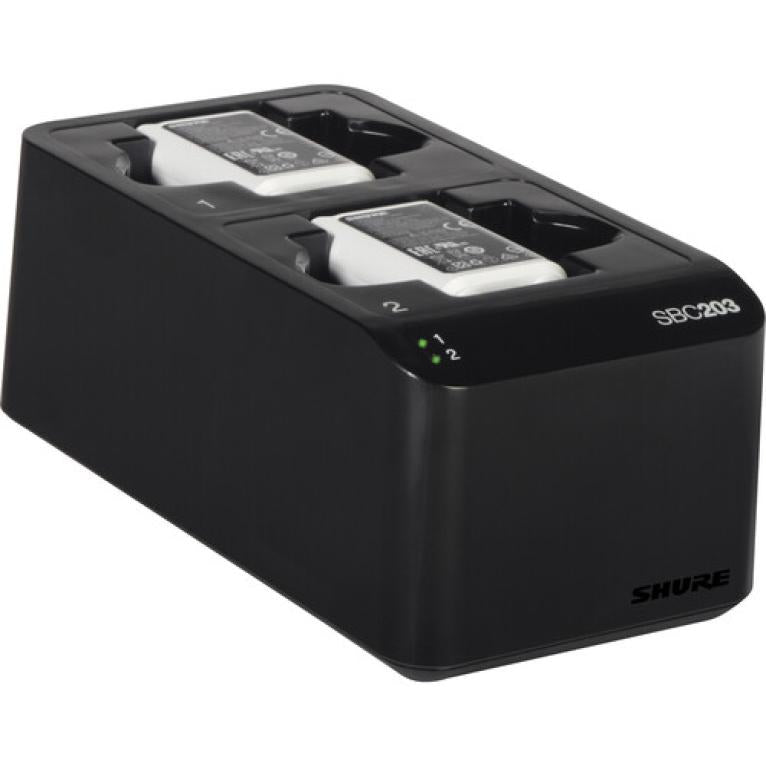

The Shure SBC203 is a dual-docking recharging station capable of recharging two SB903 lithium-ion batteries in or out of their transmitters. The SBC203 is built to charge two batteries, two bodypack transmitters, two handheld transmitters, or any pairing of two SLX-D Series transmitters and SB903 batteries.

Compatible with all Shure SLX-D Series wireless transmitters as well as the SB903 rechargeable battery, this station charges 2 batteries from 0 to 50% capacity within 1 hour and 15 minutes (providing 4 hours of runtime), or to 100% capacity within 2 hours and 30 minutes (providing a full 8 hours of runtime). It features automatic RF/Audio mute of docked transmitters, and offers secure and tidy installation options: optionally surface-mountable, while the included link plate allows multiple SBC203 units to be connected together. The sleek design includes heavy-duty ABS construction and is powered via included power supply and/or USB-C cable.

FEATURES:

• Charges Two SB903 Batteries for SLX-D
• Battery Recharging Inside Transmitter
• Powered by AC Adapter or USB
• 50% Charge in 1.25-Hrs, 100% in 2.5 Hrs

SPECIFICATIONS:

• DC Input Voltage: 5 DC, 3 A Max
• Charge Current: 625 or 250 mA
• Charge Time: 50%: 1 Hour, 15 Minutes; 100%: 2 Hours, 30 Minutes
• Charging Temperature Range: 21 to 113°F / 0 to 45°C
• Housing: ABS
• Power Supply:
  • Input Voltage Range: 100 to 240 VAC
  • Operating Frequency: 50 to 60 Hz
  • Maximum Input Power: 0.6 A at 100 VAC (Full Load)
  • Output Voltage: 4.75 to 5.25 VDC
  • Maximum Output Power: 3.0 A at 5 V
  • Charging Temperature Range: 32 to 140°F / 0 to 60°C
• Dimensions: 2.6 × 3.9 × 6.5" / 66 × 99 × 165 mm
• Weight: 10 oz / 284 g

Packaging Info:

• Package Weight: 1.73 lb
• Box Dimensions (LxWxH): 9.6 x 7.9 x 3.3"
