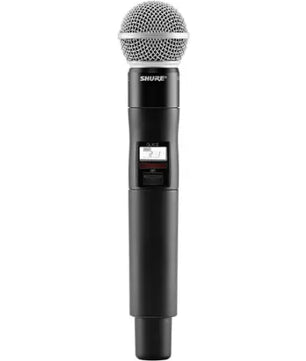

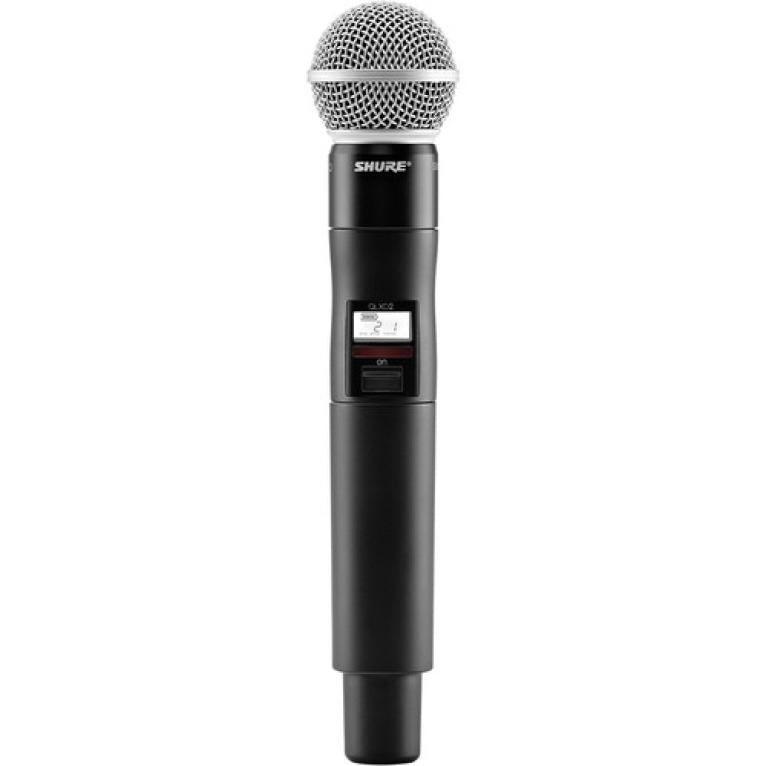

Shure QLXD2/SM58-G50 | SM58 Digital Wireless Handheld (G50: 470-534 MHz)

The Shure QLXD2/SM58 is a digital handheld wireless microphone transmitter compatible with QLX-D receivers. It comes equipped with the legendary SM58 dynamic capsule, an industry standard for vocal performers and presenters. The capsule features a cardioid polar pattern that minimizes background noise and feedback, and its brightened midrange and bass roll off gives you that sought-after warm and clear vocal reproduction.

The QLXD2/SM58 operates on a 64 MHz UHF tuning range with 2560 selectable frequencies available. It provides up to 9 hours of operation on two AA batteries, with a transmission range up to 330' and a selectable 1/10mW RF power output.

With a rugged, yet lightweight aluminum housing, the QLXD2/SM58 transmitter delivers pristine audio quality and RF performance, as well as AES 256-bit encryption for secure transmission and advanced rechargeability options. It is well suited for sound reinforcement applications in medium-sized venues and houses of worship as well as A/V installations in conference, educational, and corporate facilities.

Clear, Accurate Audio with Interchangeable Capsule
The unit delivers clear, reliable 24-bit/48 kHz digital audio.
The interchangeable capsule design allows you to replace the SM58 capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including SM86, KSM8, SM87A, Beta 58A, Beta 87C, KSM9 capsules, and more.
User-Friendly Features in a Rugged Housing
The unit quickly syncs with a wireless receiver via infrared at the touch of a button.

The adjustable input sensitivity on the transmitter accommodates mic levels ranging from booming voices to quiet speech.
Frequency and power lockout functions prevent accidental or unauthorized changes during events.
A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, and RF output.

1/10mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
Convenient Power Management Options
Operates for up to 9 hours on two AA batteries.
Optional Shure SB900A lithium-ion rechargeable battery pack offers intelligent power management with over 10 hours of battery life, precision metering in hours and minutes, and zero memory effect.
External charging contacts allow for docked battery charging with the SBC200 dual-docking charger (available separately).
The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.

SPECIFICATIONS:

Wireless Technology
Digital UHF
Max Operating Range
330' / 100.6 m
Transmitter Type
Handheld
Audio I/O
No
Microphone Type
Handheld Capsule
Polar Pattern
Cardioid
RF Frequency Band
G50: 470 to 534 MHz
RF Bandwidth
64 MHz
Frequency Step Size
25 kHz
Max Operating Range
330' / 100.6 m
Sample Rate/Resolution
48 kHz / 24-Bit
Latency
< 2.9 ms
Encryption
AES 256
Modulation
Proprietary
Transmitter
Transmitter Type
Handheld
RF Output Power
1 / 10 mW
Audio I/O
No
Gain Range
0 to 21 dB (3 dB Steps)
Frequency Response
30 Hz to 20 kHz
Sync Method
IR
Antenna
1x 1/4 Wave
Power Requirements
Battery
Battery Type
2x AA (Included)
1x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life
9 Hours (Alkaline)
Display & Indicators
1x Backlit LCD (Channel, Group, RF Output Power)
Housing
Aluminum
Dimensions
2 x 10.1" / 51 x 256 mm
Weight
12.2 oz / 347 g (without Batteries)
Microphone
Microphone Type
Handheld Capsule
Sound Field
Mono
Capsule
Dynamic
Polar Pattern
Cardioid
Frequency Range
50 Hz to 15 kHz
Sensitivity
-54.5 dBV/Pa
Packaging Info
Package Weight
1.525 lb
Box Dimensions (LxWxH)
12.7 x 4.85 x 3.6"
