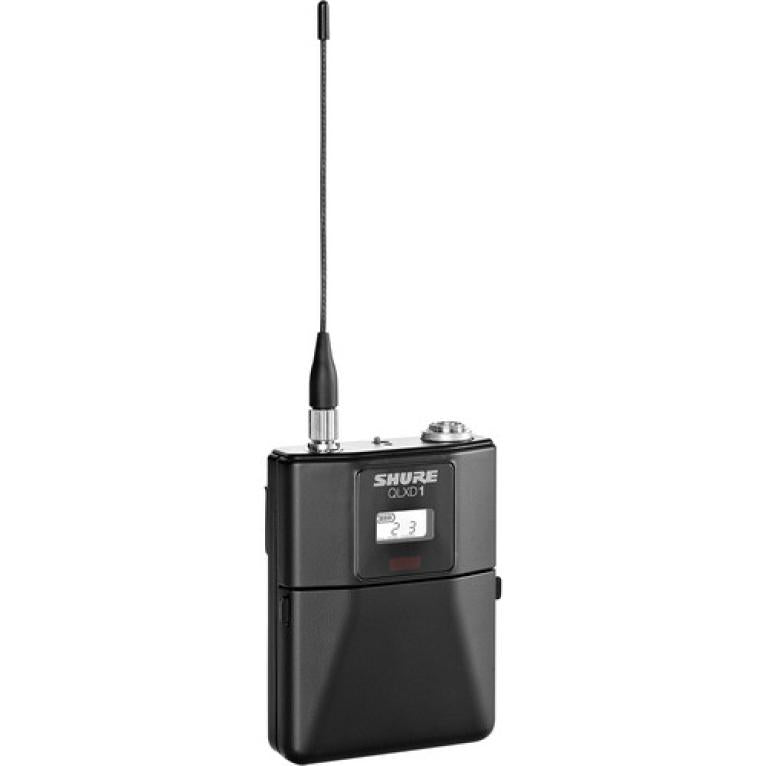

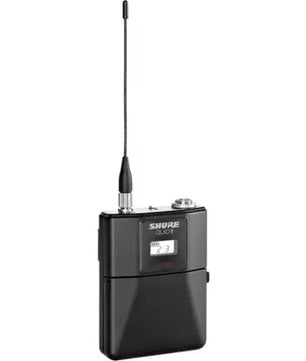

Shure QLXD1-G50 | Digital Wireless Beltpack (G50: 470-534 MHz)

The Shure QLXD1 is a bodypack digital wireless microphone transmitter compatible with QLX-D receivers. With rugged, yet lightweight aluminum housing, it delivers pristine audio quality, reliable RF performance, and AES 256-bit encryption for secure transmission. The transmitter is well suited for sound-reinforcement applications in medium-sized venues and houses of worship as well as A/V installations in conference, educational, and corporate facilities.

The QLXD1 operates on a 64 MHz UHF tuning range with 2560 selectable frequencies available. It provides up to 9 hours of operation on two AA batteries, with a selectable 1/10mW RF power output and a transmission range up to 330'.

User-Friendly Features in a Rugged Housing
The QLXD1 features a TA4M input, allowing you to connect a lavalier or headset mic of your choice for hands-free presentations and performances, or a dedicated WA305 locking instrument cable for use with a guitar/bass (mic and cable available separately).
The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
The adjustable input sensitivity on the transmitter accommodates mic levels ranging from booming voices to quiet speech.
Frequency and power lockout functions prevent accidental or unauthorized changes during events.
A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, and RF output.
1/10mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
Detachable 1/4-wave antenna.
Convenient Power Management Options
Operates for up to 9 hours on two AA batteries.
Optional Shure SB900A lithium-ion rechargeable battery pack offers intelligent power management with over 10 hours of battery life, precision metering in hours and minutes, and zero memory effect.
External charging contacts allow for docked battery charging with the SBC200 dual-docking charger (available separately).
The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.

SPECIFICATIONS:

Wireless Technology
Digital UHF
Max Operating Range
330' / 100.6 m
Transmitter Type
Bodypack
Audio I/O
1x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)
RF Frequency Band
G50: 470 to 534 MHz
RF Bandwidth
64 MHz
Frequency Step Size
25 kHz
RF Channel Scanning
Auto-Scan
Max Operating Range
330' / 100.6 m
Sample Rate/Resolution
48 kHz / 24-Bit
Latency
< 2.9 ms
Encryption
AES 256
Modulation
Proprietary
Transmitter
Transmitter Type
Bodypack
RF Output Power
1 / 10 mW
Audio I/O
1x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)
Audio Input Level
8.5 dBV / 7.5 V p-p
Gain Range
0 to 21 dB (3 dB Steps)
Frequency Response
20 Hz to 20 kHz
Sync Method
IR
Antenna
1x 1/4 Wave Detachable
Power Requirements
Battery
Battery Type
2x AA (Included)
1x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life
9 Hours (Alkaline)
Display & Indicators
1x Backlit LCD (Channel, Group, RF Output Power)
Housing
Aluminum
Dimensions
2.6 x 3.4 x 0.9" / 65 x 86 x 23 mm
Weight
4.9 oz / 138 g (without Batteries)
Packaging Info
Package Weight
0.905 lb
Box Dimensions (LxWxH)
12.75 x 4.85 x 3.45"
