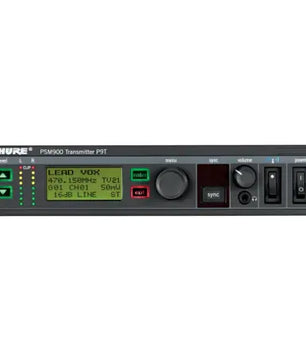

Shure P9T=-G7 | P9T Wireless Transmitter for PSM900 (G7: 506-542MHz)

Compact Wireless Transmitter for Personal Monitoring

The Shure P9T is a half-rack wireless transmitter designed for use with the PSM900 personal monitoring system. With its compact design and advanced features, it offers reliable performance for live sound and studio applications. The transmitter is equipped with patent-pending CueMode technology, making it easy to send multiple mixes to the receiver, while the Scan and Sync function ensures fast synchronization with the bodypack receiver.

Shure P9T Competitive Differences

• Compact half-rack design for easy transport and installation
• Patent-pending CueMode technology sends multiple mixes to a receiver
• Scan and Sync feature for fast synchronization with P9R receiver
• RF mute switch prevents interference during setup

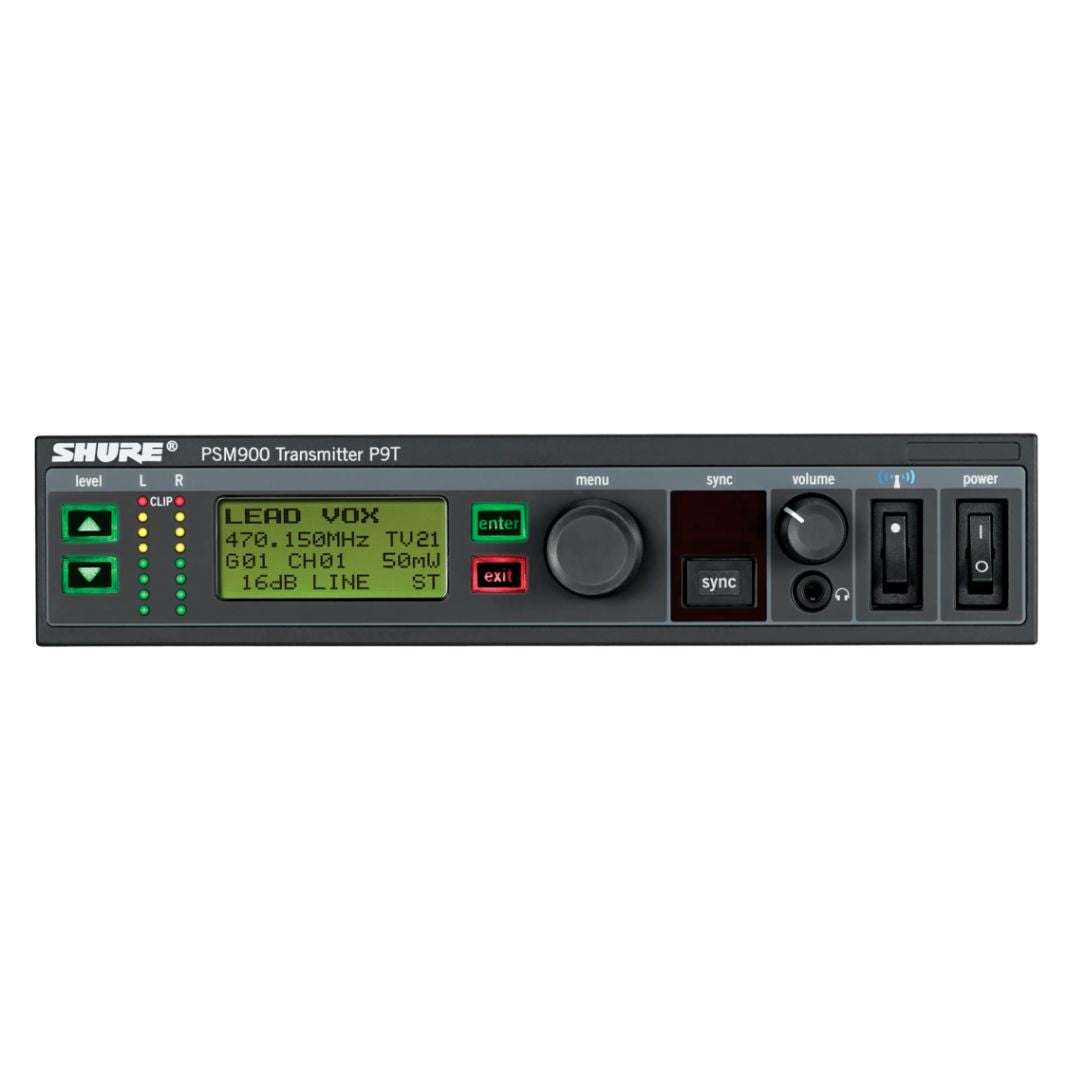

• Front-panel controls and LED meters for easy monitoring and adjustments
• Compatible with front and back-mount antennas for flexible setup
• XLR/TRS combo inputs and loop outputs allow versatile connectivity

Shure P9T Description

The Shure P9T wireless transmitter is a key component of the PSM900 personal monitoring system, designed for both professional live and studio environments. Its compact half-rack design allows for easy installation in any standard equipment rack, and its lightweight construction makes it perfect for portable use. The P9T's patent-pending CueMode technology enables sending multiple channels or mixes to a P9R bodypack receiver, providing unmatched flexibility for performers and engineers. The transmitter’s front panel includes intuitive input gain controls, LED level meters, and a 3.5mm headphone jack for real-time monitoring. Additionally, the backlit LCD offers vital system information at a glance, making it easy to adjust on the fly. The Scan and Sync feature allows for seamless synchronization with the receiver via an IR link, ensuring a quick and interference-free setup. On the rear panel, XLR/TRS combo inputs and loop outputs offer flexible audio routing options, making it simple to set up multiple mix configurations. For added convenience, the P9T supports front or rear-mounted antennas and is compatible with Shure's PA421SWB and PA821SWB antenna combiners.

Shure P9T Features

• Compact half-rack design for easy installation and transport
• Patent-pending CueMode technology sends multiple mixes or channels
• Scan and Sync function for quick synchronization with receivers
• RF mute switch for setting up the system without interference
• Input gain control and LED level meters for easy adjustments
• 3.5mm headphone jack for convenient monitoring
• Backlit LCD displays system information
• XLR/TRS combo inputs for accepting various audio sources
• Loop out connectors for creating multiple mix setups
• Compatible with Shure PA421SWB and PA821SWB antenna combiners
• Front or back mountable antennas for flexible installation

Shure P9T Specifications

• Output Power: 10/50/100mW, selectable (regionally dependent)
• Output Impedance: 50 Ohms (RF, typical)
• Input Level: +4dBu and -10dBV, switchable
• Connectors:
  • 2 x XLR/TRS combo inputs
  • 2 x 1/4" loop outputs
  • 1 x DC power input
  • 1 x antenna connector
  • 1 x 3.5mm headphone jack
• Power Requirements: 415mA, typical (RF On, 100mW power mode, no audio)
• Dimensions (WxDxH): 7.75 x 6.5 x 1.6" (197 x 166 x 42mm)
• Weight: 1.9 lbs (0.85kg)
