Sennheiser XSW-D Instrument Base Set

$349.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution makes going wireless with instruments easier than ever before while maintaining a reliable connection.

FEATURES:

One touch ease-of-use

2.4 GHz digital transmission for worldwide operation

75m range (250ft) in optimal conditions

Up to 5 hours battery life on a single charge

Switch between multiple transmitters linked to one receiver

Configure any combination of transmitters and receivers

Mute from either transmitter or receiver

SPECIFICATION:

Dimensions
XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm

THD, total harmonic distortion
< 0.1 %

Charging time
typ. 3 h

Audio output
max. 12 dBu

Operating temperature
-10 °C to +55 °C (14 °F to 131 °F)

Signal-to-noise ratio
≥ 106 dB

Operating time
up to 5 h

Modulation
GFSK with TDMA

Battery Specification
Li-Ion

Capacity
850 mAh

Codecs
aptX® Live

Frequency range
2,400 - 2,483.5MHz

Max. Input voltage
typ. 5.0 V

Transmission power
max. 10 mW

Voltage
3.7 V

Operating relative humidity
95 % (non-condensing)

Latency
< 4 ms

Temperature Range
0 °C - 60 °C (32 °F - 140 °F)

Audio frequency response
3.5 mm Jack/XLR: 80 - 18,000 Hz
6.3 mm Jack: 10 - 18,000 Hz

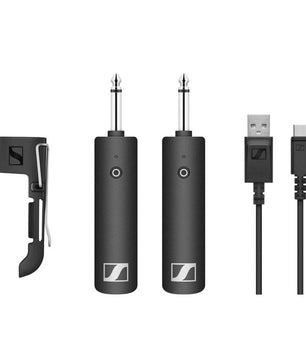

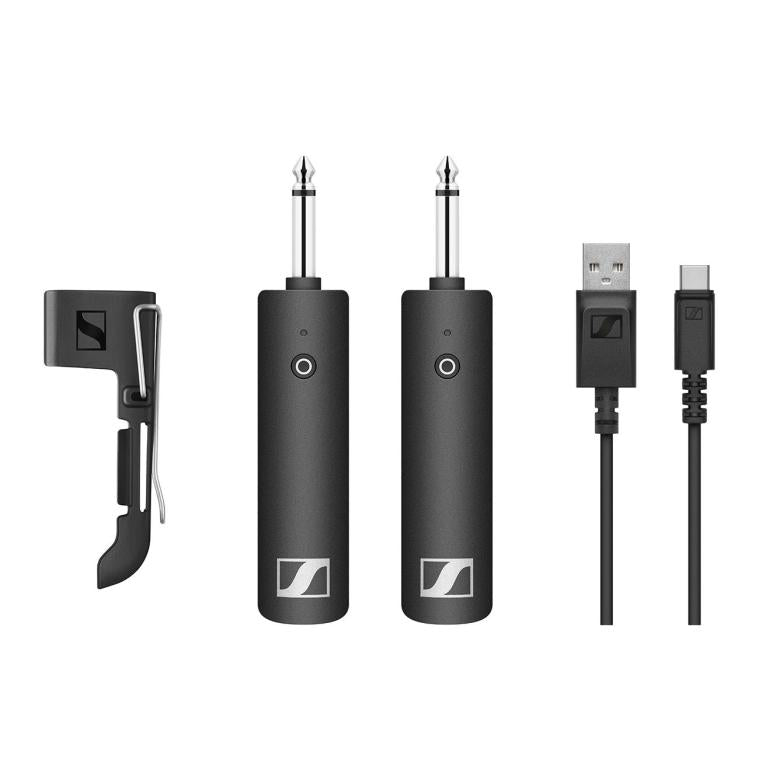

What's in the Box

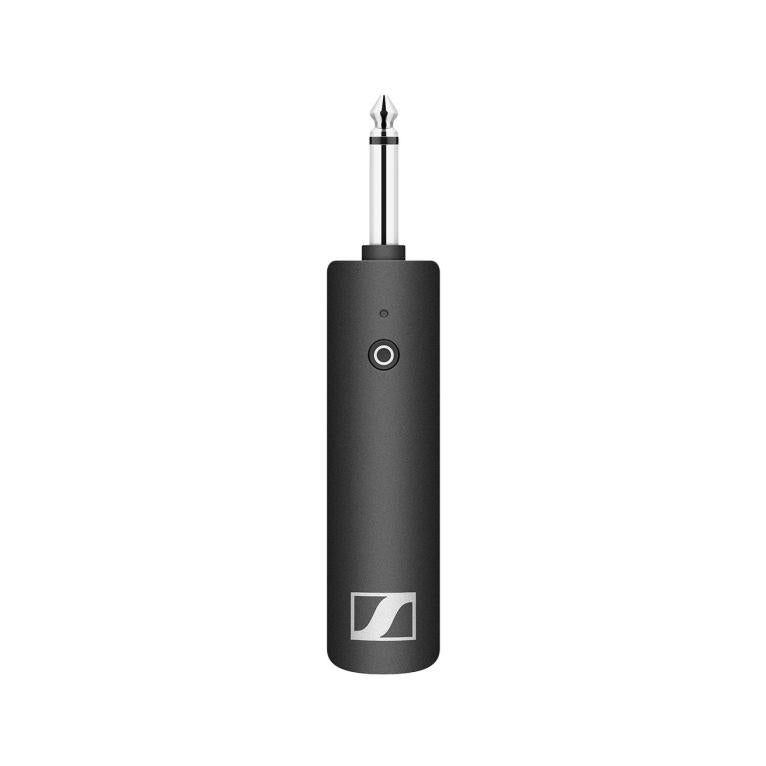

XSW-D 6.3mm (1/4”) transmitter
XSW-D 6.3mm (1/4”) receiver
Extension cable 6.3mm (1/4“)

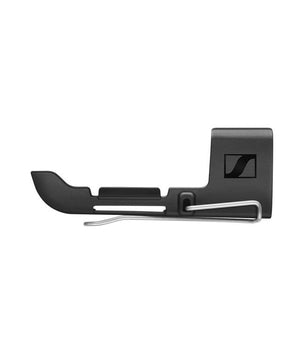

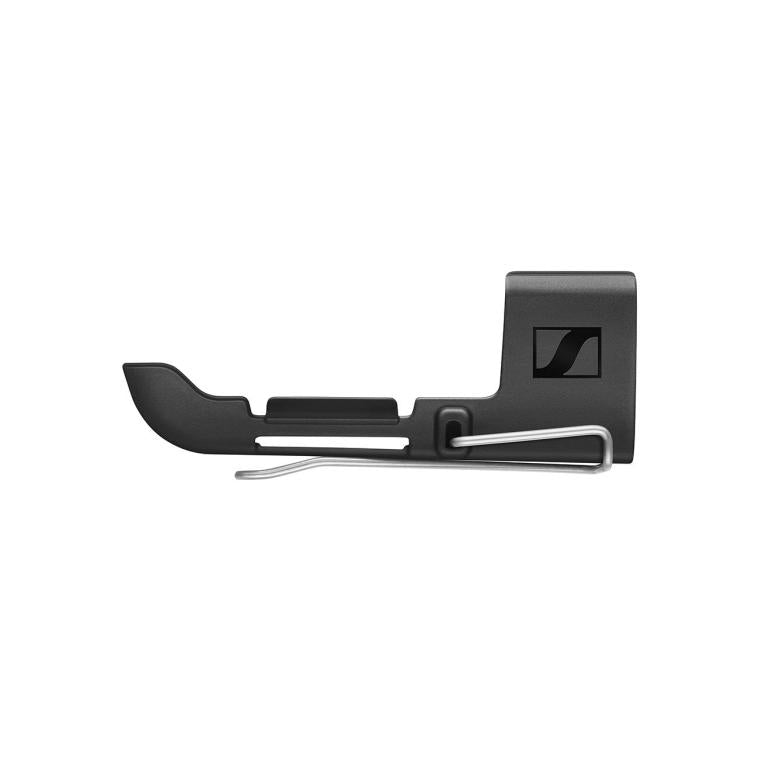

Belt clip
USB-A to USB-C charging cable
