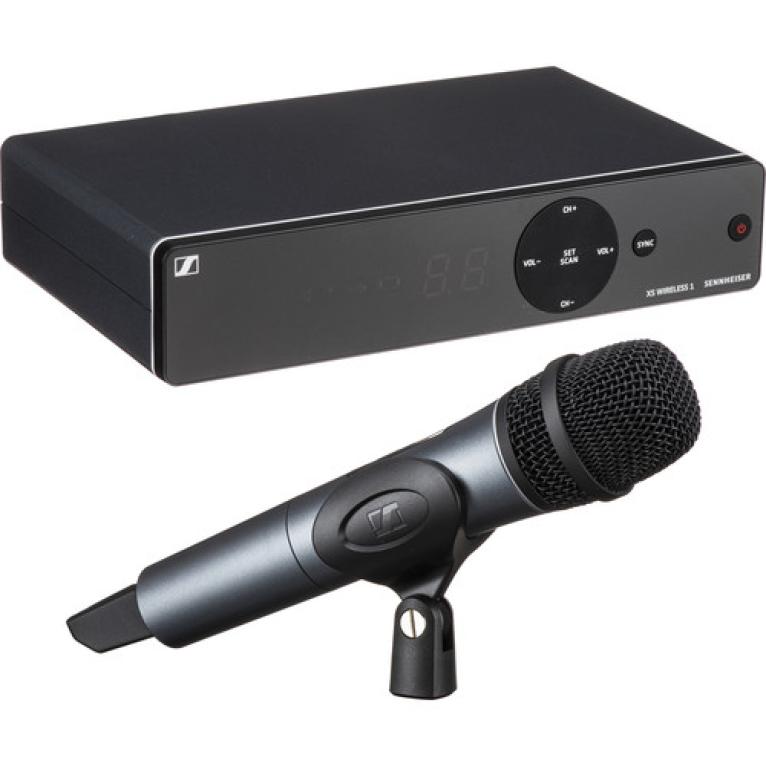

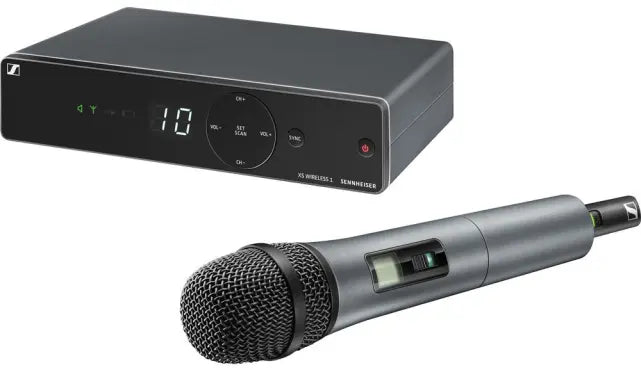

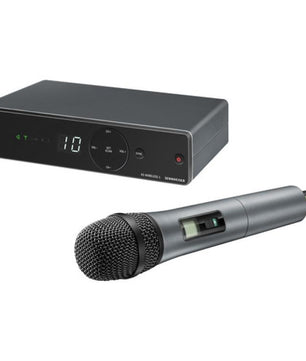

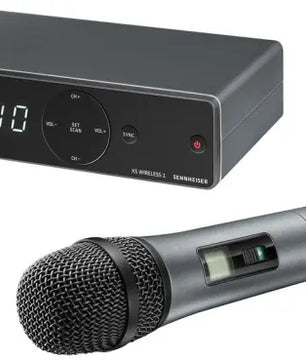

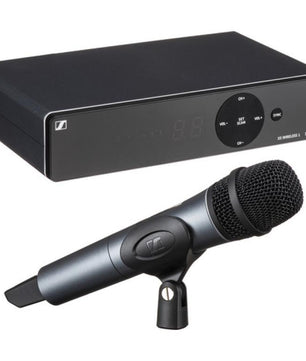

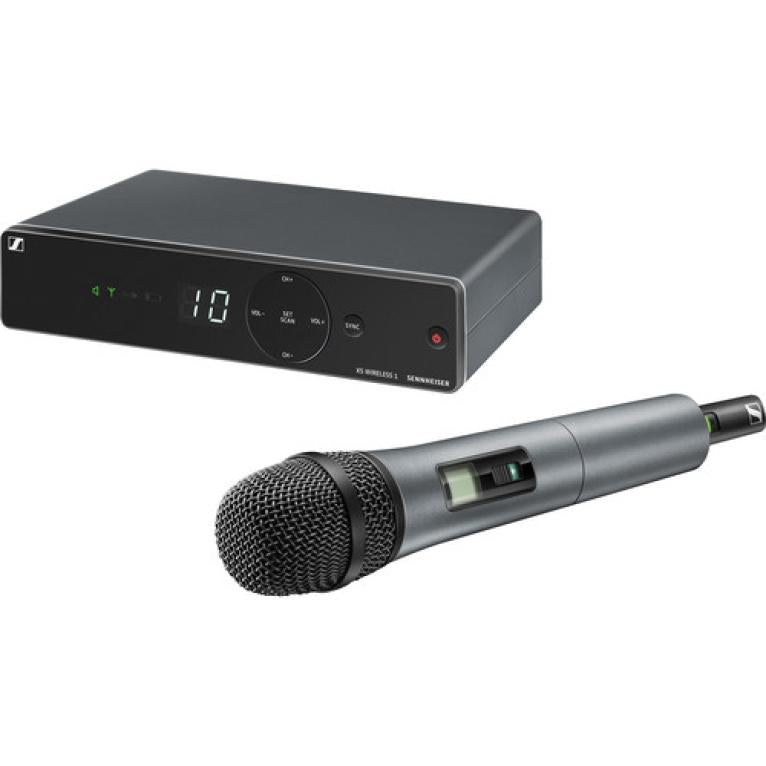

Sennheiser XSW 1-835-A

The XSW 1-835-A UHF Vocal Set with e835 Dynamic Microphone from Sennheiser is an easy to use all-in-one wireless system for singers and presenters. It can be used to capture audio for live sound, stage, and theater applications.

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a vocal microphone and microphone clamp. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.

Featuring Sennheiser's renowned evolution microphone capsule e835
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels
Diversity reception

FEATURES:

e835 Mic Capsule with HH Transmitter
EM-XSW 1 UHF Receiver
Antenna-Switching Diversity Reception
Automatic Frequency Management

SPECIFICATIONS:

System
Wireless Technology Analog UHF
Number of RF Channel Frequencies 80
Included Transmitters 1 x Handheld
Diversity Antenna Diversity
RF Frequency Band A:
548 to 572 MHz
RF Bandwidth Up to 24 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 100' / 30.5 m
Max Transmitters per Band 10
Built-In Recorder No
Timecode Support No
Control App Support No
Encryption None
Modulation Wideband FM
Receiver
Receiver Type Tabletop
Antenna 2 x Internal
Number of Audio Channels 1

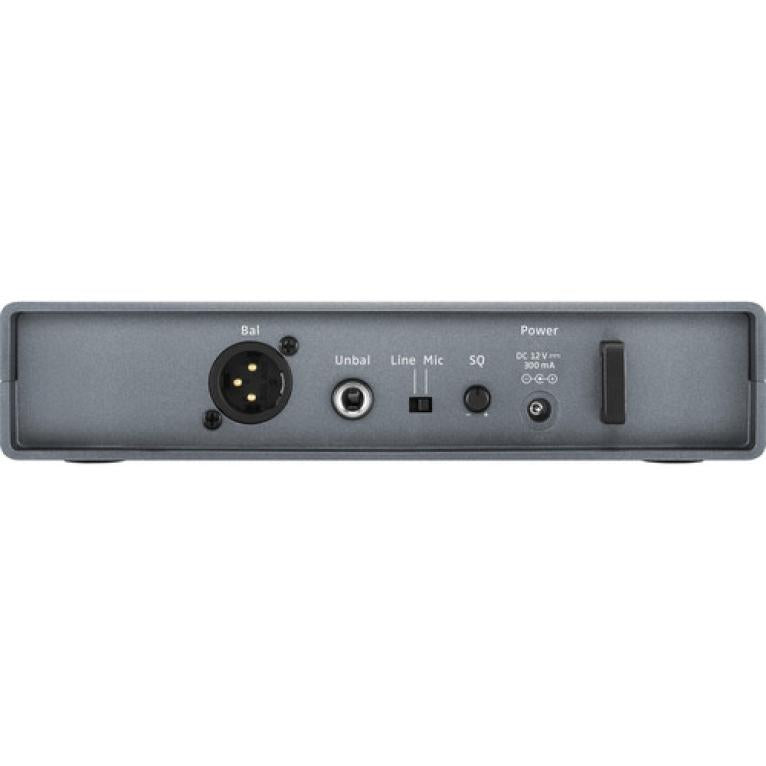

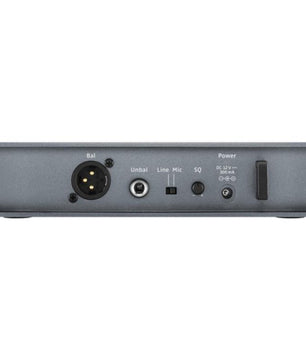

Audio I/O 1 x XLR 3-Pin Male Balanced Mic/Line Output
1 x 1/4" TS Unbalanced Mic/Line Output
Gain Range 45 dB (5 dB Steps)
Audio Output Level XLR Output:
+12 dB (Balanced)
1/4" Output:
+6 dB (Unbalanced)
Frequency Response 50 Hz to 16 kHz -3 dB
Network I/O None
USB/Lightning Connectivity None
RF Principle Double Superheterodyne
Squelch Adjustable, 3 to 28 dBmV
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 300 mA (Included)
Display & Indicators 1 x LCD (Channel, Frequency)
Housing ABS
Dimensions 7.9 x 1.7 x 5" / 200 x 42 x 127 mm
Weight 12 oz / 340 g
Transmitter
Transmitter Type Handheld
RF Output Power 10 mW
Audio I/O None
Pad None
Muting Off/On Switch
Auto-Level Control No
Gain Range 0 to -30 dB (10 dB Steps)
Signal Processing None
Frequency Response 80 Hz to 16 kHz
Sync Method 2.4 GHz QPSK
Antenna Internal
Power Requirements Battery
Battery Type 2 x AA (Included)
Approx. Battery Life 10 Hours
USB/Lightning Connectivity None
Display & Indicators 1 x LCD (Battery Status, Channel, Power)
Housing ABS
Dimensions 10.2 x 2" / 260 x 50 mm
Weight 8.6 oz / 245 g
Microphone
Microphone Type Handheld
Color Black
Sound Field Mono
Capsule Dynamic
Polar Pattern Cardioid
Frequency Range 80 Hz to 16 kHz
SNR 103 dB A-Weighted
THD < 0.9%
Sensitivity 1.5 mV/Pa
Length 10.2" / 260 mm
Diameter 2.0" / 50 mm
Weight 8.6 oz / 245 g
Packaging Info
Package Weight 3.08 lb
Box Dimensions (LxWxH) 13.75 x 13.6 x 3.35"
