Sennheiser EW 100 G4-ME2-A (Band: 516-558)

Sennheiser EW 100 G4-ME2-A
A: 516 to 558 MHz

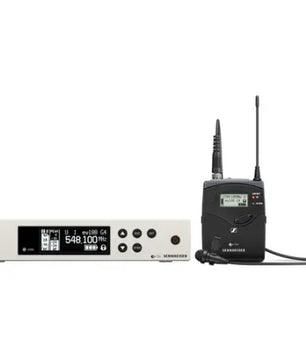

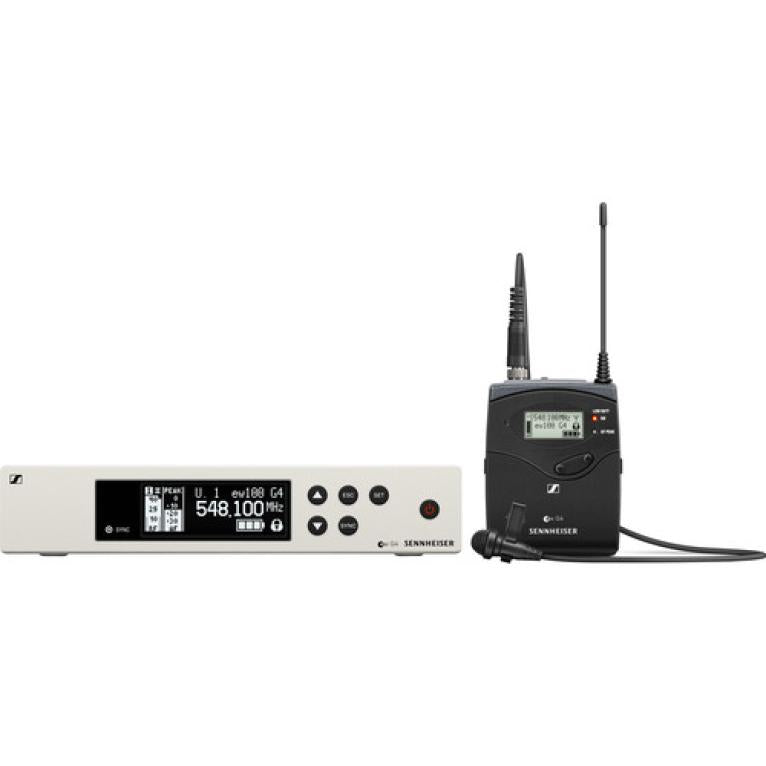

The Sennheiser EW 100 G4-ME2 wireless set consists of an SK 100 G4 wireless bodypack, one ME-II lavalier, one EM 100 G4 rackmount receiver, one GA3 rack kit, one RJ10 linking cable. Now even more simple, flexible and reliable, the 100 series has become the first choice for both sound designers and occasional users because of its simple operating concept–and because the system makes no compromises in terms of live sound. Its robust bodypack transmitter and unobtrusive clip-on mic deliver high speech intelligibility with easy hands-free operation in any setting.

Includes:

(1) EM 100 G4 true diversity receiver
(1) SK 100 G4 bodypack transmitter
(1) ME 2 clip-on microphone (ew 100 G4-ME2 set only)
(1) GA 3 rackmount set
(1) power supply
(2) AA batteries
(2) rod antennas
(1) RJ 10 cable
(1) quick guide
(1) safety guide
(1) manufacturer declaration sheet
(1) frequency supplement sheet
Features
Up to 42MHz bandwidth with 1680 selectable frequencies
Up to 20 compatible channels
Transmission up to 330'
Fast frequency allocation for up to 12 receivers via linking functionality
True diversity, half-rack receiver in a full-metal housing with intuitive LCD display


EM 100 G4 Receiver
Frequency range:
A: 516 to 558 MHz
Dimensions: Approx. 190 x 212 x 43mm
Compander: Sennheiser HDX
THD, total harmonic distortion: = 0.9 %
Weight: Approx. 980 g
Audio output:
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Signal-to-noise ratio: = 110 dBA
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 12 V DC
Antenna connector: 2 BNC sockets
Current consumption: 300 mA
Adjacent channel rejection: = 65 dB
Intermodulation attenuation: = 65 dB
Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity: < 2.5 µV for 52 dBA eff S/N
Squelch:
low: 5 dBµV
middle: 15 dBµV
high: 25 dBµV
Equalizer:
Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range: -10° C to +55° C
Receiver Principle: True diversity
Blocking: = 70 dB

SK 100 G4
Dimensions: Approx. 82 x 64 x 24mm
Compander: Sennheiser HDX
THD, total harmonic distortion: = 0.9 %
Weight: (incl. batteries) approx. 160 g
Signal-to-noise ratio: = 110 dBA
RF output power: Max. 30 mW
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack (sold separately)
Current consumption:
at nominal voltage: typ. 180 mA
with transmitter switched off: = 25 µA
Input impedance: 40 kOhms, unbalanced / 1 MOhm
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response:
Mic: 80 – 18,000 Hz
Line: 25 – 18,000 Hz
Temperature Range: -10° C to +55° C
Frequency stability: = ±15 ppm
ME 2-II Clip-on Mic
Polar Pickup Pattern: Omnidirectional
Connector: 3.5 mm jack
Frequency response: 50 to 18,000 Hz (ME 2-II)
Max. sound pressure level: 130 dB
Cable length: approx. 1.60m
Transducer principle: pre-polarized condenser microphone
Sensitivity in free field, no load (1kHz): 20 mV/Pa
Equivalent noise level: 36 dB
