Sennheiser EW 100 ENG G4

Sennheiser's ew 100 ENG G4 is a member of their evolution wireless G4 family. It's a great portable multi-purpose wireless set that's designed especially for mobile journalism and documentary content gathering. Its powerful SKP 100 plug-on transmitter can turn every wired dynamic mic into a wireless mic while the easy-to-use ME 2-II clip-on omnidirectional microphone provides superb speech intelligibility during interviews.

G4 captures the magic with such ease, almost as if you'd planned it for years. As the most simple mobile solution and a reliable partner on every set, evolution wireless has become the leading choice amongst film-makers and journalists alike for its ease of use, versatility, and reliability.

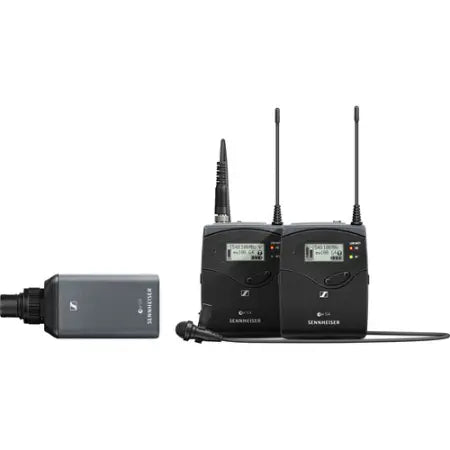

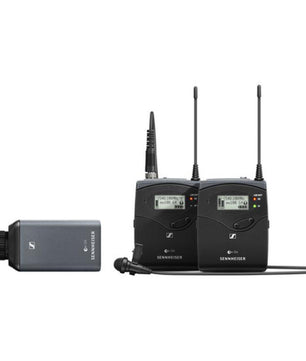

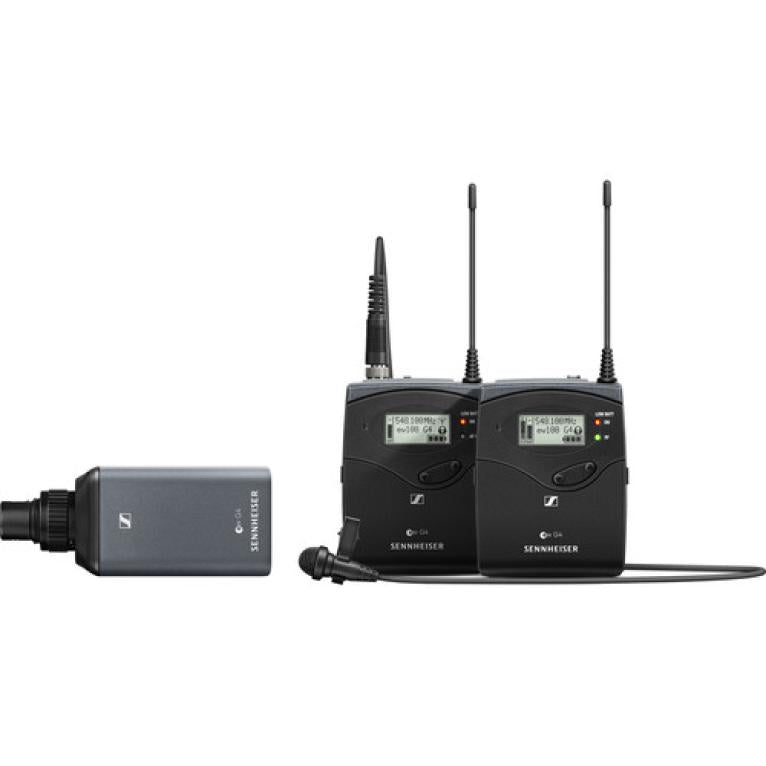

Sennheiser ew 100 ENG G4 Includes:
(1) SK 100 G4 bodypack transmitter
(1) ME 2-II lavalier microphone (omnidirectional, condenser)
(1) SKP 100 G4 plug-on transmitter for dynamic microphones
(1) EK 100 G4 portable camera receiver
6) AA batteries
(1) CA 2 camera adapter
(1) CL 1 3.5 mm jack cable
(1) CL 100 XLR to 3.5 mm jack adapter cable
(1) Quick guide
(1) Safety guide
(1) Manufacturer declaration sheet

Features:
"Evolving" with you, offering Flexibility, Safety, Power
Fully compatible with all previous G-Series systems
Rugged all-in-one wireless system with high flexibility for broadcast quality sound
Excellent sound and construction quality
Easy to use and fast setup time
Powerful and reliable wireless transmission
Range: up to 330ft (100m)
Up to 8 hours of operation time

Specifications:

EK 100 G4 Receiver
Dimensions: Approx. 82 x 64 x 24 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: = 0.9 %
Weight: (including batteries) approx. 160 g
Audio output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
Signal-to-noise ratio: = 110 dBA
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: (2) AA batteries, 1.5 V or BA 2015 accupack
Current consumption:
at nominal voltage: typ. 180 mA
with receiver switched off: = 25 µA
Adjacent channel rejection: = 65 dB
Intermodulation attenuation: = 65 dB
Powering: 3 V battery / 2.4 V rechargeable battery
Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
RF sensitivity: < 1.6 µV for 52 dBA eff S/N
Squelch:
low: 5 dBµV
middle: 15 dBµV
high: 25 dBµV
Temperature Range: -10° C to +55° C
Receiver Principle: Adaptive diversity
Blocking: = 70 dB

SK 100 G4
Dimensions: Approx. 82 x 64 x 24mm
Compander: Sennheiser HDX
THD, total harmonic distortion: = 0.9 %
Weight: (incl. batteries) approx. 160 g
Signal-to-noise ratio: = 110 dBA
RF output power: Max. 30 mW
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack (sold separately)
Current consumption:
at nominal voltage: typ. 180 mA
with transmitter switched off: = 25 µA
Input impedance: 40 kOhms, unbalanced / 1 MOhm
Max. Input voltage: 3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response:
Mic: 80 – 18,000 Hz
Line: 25 – 18,000 Hz
Temperature Range: -10° C to +55° C
Frequency stability: = ±15 ppm

SKP 100 G4
Dimensions: Approx. 105 x 43 x 43mm
Compander: Sennheiser HDX
THD, total harmonic distortion: = 0.9 %
Weight: (including batteries) approx. 195 g
Signal-to-noise ratio: = 110 dBA
RF output power: Max. 30 mW
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption:
at nominal voltage: typ. 180 mA
with transmitter switched off: = 25 µA
Input impedance: 68 kOhms, unbalanced
Max. Input voltage: 3.3 Veff
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response: 80 – 18,000 Hz
Temperature Range: -10° C to +55° C
Frequency stability: = ±15 ppm

ME 2
Connector: 3.5 mm jack
Frequency response: 50 to 18,000 Hz (ME 2-II)
Max. sound pressure level: 130 dB
Cable length: approx. 1.60 m
Transducer principle: pre-polarized condensor microphone
Pick-up pattern: omni-directional
Sensitivity in free field, no load (1 kHz): 20 mV/Pa
Equivalent noise level: 36 dB
