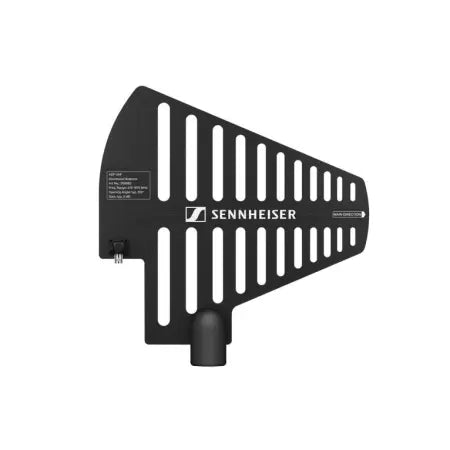

Sennheiser ADP UHF | Passive Directional Antenna for EW-D Wireless (470–1075 MHz)

$365.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Directional Antenna for Wireless Microphone Systems

Boost the performance of your wireless microphone setup with the Sennheiser ADP UHF passive directional antenna. Designed to optimize RF signal coverage and minimize dropouts, this antenna is ideal for both live and installed sound applications. Whether you're on stage, in a house of worship, or in a corporate setting, the ADP UHF helps maintain a clean, stable wireless connection.

Sennheiser ADP UHF Competitive Differences

Wideband frequency range: 470 to 1075 MHz for broad compatibility
Optimized for Sennheiser EW-D and compatible with G2/G3/G4 Evolution systems
5 dBi gain and 100° opening angle for enhanced RF reception
Passive design – no external power required
Mounts directly to mic stands using 3/8"-16 and 5/8"-27 threads
Indoor and outdoor ready for flexible placement options

Sennheiser ADP UHF Description

The Sennheiser ADP UHF is a passive, wideband directional antenna designed specifically for use with Evolution Wireless Digital (EW-D) systems, while also supporting legacy Evolution Wireless G2, G3, and G4 systems. With a broad frequency range from 470 to 1075 MHz, this antenna ensures strong RF signal reception and reduces the risk of interference and signal dropouts. Engineered for professional applications, the ADP UHF features a robust passive design that doesn’t require external power. Its directional build helps focus reception toward the location of your wireless transmitters, improving signal quality and range. It connects via a standard 50-ohm BNC connector to receivers, boosters, or splitters (all sold separately). With its included thread mounts, the antenna can be easily secured to standard microphone stands, and it’s suitable for both indoor and outdoor environments, making it a flexible addition to any wireless audio system setup.

ADP UHF Features

Passive directional antenna – no power required
Wideband frequency coverage from 470–1075 MHz
Optimized for Sennheiser EW-D EM receiver
Compatible with Evolution Wireless G2, G3, and G4 systems
5 dBi antenna gain for improved reception
100° beamwidth for directional coverage
Standard 50-ohm BNC female connector
Threaded mounts: 3/8"-16 and 5/8"-27
Indoor and outdoor rated

ADP UHF Specifications

Type: Passive directional antenna
Frequency Range: 470–1075 MHz
Antenna Gain: 5 dBi
Opening Angle: 100°
Connector: BNC female, 50 ohms
Mounting Threads: 3/8"-16 and 5/8"-27
Compatibility: Sennheiser EW-D, G2, G3, G4 Evolution Wireless Systems
UPC: 615104343412
