RTS BP325 BLACK | 2-Channel Portable Beltpack Station for RTS Two-Wire Intercom Systems

Compact 2-Channel Beltpack for RTS Two-Wire Intercoms

The RTS BP325 BLACK is a rugged 2-channel portable beltpack designed for use with RTS two-wire intercom systems. Featuring dual-channel operation, latching or momentary talk functions, call signaling, and sidetone adjustment, this beltpack ensures reliable communication for broadcast, theater, and live production professionals.

RTS BP325 BLACK Competitive Differences

• 2-channel operation with momentary or latching talk modes
• Call function with LED indicator for paging and alerts
• Sidetone adjustment control for headset monitoring
• Supports mono and stereo dynamic headsets via 4-pin or 5-pin XLR connectors
• Dedicated 1/4" connector for carbon-mic headsets
• Microprocessor-controlled microphone kill detect
• Externally powered via intercom system supply on channel one
• Durable housing made from polystyrene/polycarbonate blend

RTS BP325 BLACK Description

The RTS BP325 BLACK provides reliable and flexible communication in professional intercom environments. Designed to integrate seamlessly with RTS two-wire systems, the BP-325 gives operators independent access to two channels, making it ideal for multi-team coordination in theaters, broadcast studios, and live event productions. Users can choose between momentary talk (press-and-hold) or latching talk modes for convenience during long cues. The built-in call function allows users to send or receive call signals, with a red LED alerting to incoming calls. A sidetone adjustment ensures natural monitoring of your own voice, while headset support includes 4-pin mono, 5-pin stereo, and even legacy 1/4" carbon-mic connections. Durable and compact, the BP-325 is powered externally via the RTS intercom line, drawing only 65–85 mA. Its microprocessor-based mic kill detect feature ensures system-wide control over unattended stations. With its lightweight design and rugged construction, the BP-325 is built for demanding professional use.

BP325 BLACK Features

• 2-channel portable beltpack for RTS two-wire systems
• Talk button with latching or momentary modes
• Call signaling with LED indicator
• Sidetone adjustment for personal monitoring
• Supports mono and stereo headsets (4-pin and 5-pin XLR)
• Carbon-mic headset support (1/4" connector)
• Microphone kill detect function
• Externally powered via intercom line
• Durable polystyrene/polycarbonate housing

BP325 BLACK Specifications

• Material: Polystyrene and polycarbonate mix
• Channels: 2
• Program Input: -10 to +8 dBu nominal, +20 dBu max
• Frequency Response: 100 Hz–12 kHz (±3 dB)

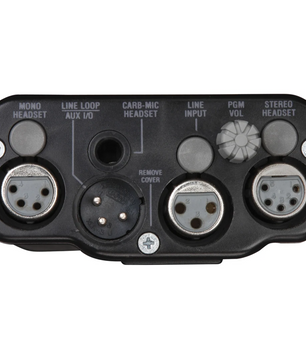

• Headset Connectors:
  • XLR-4-31 (mono dynamic mic headsets)
  • XLR-5-31 (stereo dynamic mic headsets)
  • 1/4" TRS (carbon-mic headsets)
• Line Input/Loop-Through: 3-pin XLR
• Power Requirements: 30 VDC nominal (RTS line), 65–85 mA
• Impedance: 10 kΩ typical across intercom line
• Noise: -75 dBu contribution to 200 Ω line
• Operating Temperature: 32°–122° F (0°–50° C)
• Storage Temperature: -4°–176° F (-20°–80° C)
• Humidity: 0–95%, non-condensing
• Dimensions: 5.0 x 3.8 x 2.1 in. (127 x 96.3 x 52.1 mm)
• Weight: 12 oz (340 g)
• Package Weight: 1.085 lbs
• Box Dimensions: 8.9 x 4.9 x 4.35 in.
