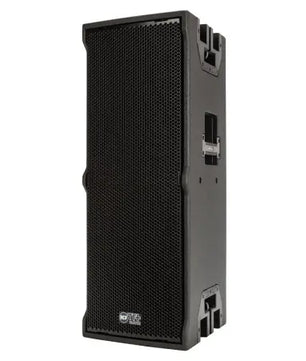

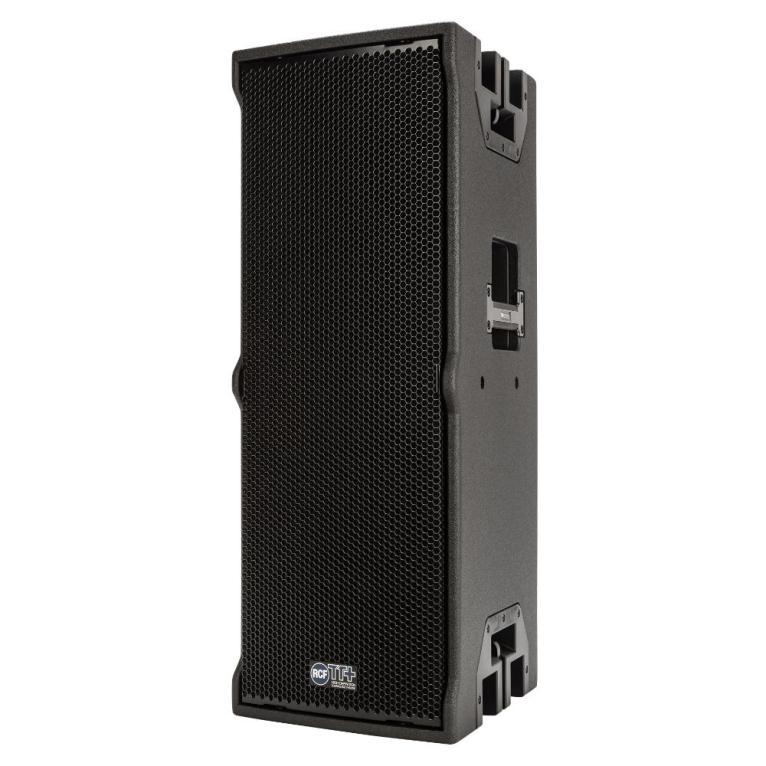

RCF TTW 4A | Dual 10in - 134dB | Wide 100° x 50° Touring Speaker with RDNet

Wide-Dispersion Active Touring Speaker

The RCF TTW 4A is a high-performance two-way active speaker designed for professional sound reinforcement in medium-sized venues, both indoors and out. With wide 100° x 50° coverage, dual 10” woofers, a 4” voice coil compression driver, and onboard RDNet control, it’s built for clarity, power, and precision in demanding live environments.

RCF TTW 4A Competitive Differences

• 100° x 50° controlled dispersion for wide, even coverage
• Dual 10” neodymium woofers with 134 dB SPL peak output

RCF TTW 4A Description

The RCF TTW 4A delivers transparent, high-impact sound in a compact touring-grade format. It features dual 10” neodymium woofers paired with a 1.5” compression driver on a custom 100° x 50° waveguide, enabling precise horizontal and vertical coverage with consistent intelligibility across the listening field. Ideal for front-fill, stacked arrays, flown systems, or standalone PA setups, it offers extreme versatility in professional applications. Powered by two Class-D amplifiers with a combined 1600W RMS output (3200W peak), the TTW 4A handles complex signals with ease, reproducing everything from tight transients to extended low end with minimal distortion. RDNet-ready, the built-in DSP allows system engineers to adjust EQ, delay, polarity, and presets remotely—saving time and improving setup accuracy. With a rugged Baltic birch cabinet and steel grille, the TTW 4A is ready for touring and rental use. M10 and M8 mounting points allow for flexible rigging, while its lightweight build and side/rear handles make transport and installation simple.

Model Features

• 1600W RMS (3200W Peak) bi-amplified Class-D power
• 134 dB max SPL
• Dual 10” neodymium woofers with 3” voice coils
• 1.5” neodymium compression driver with 4” voice coil
• 100° x 50° dispersion via custom waveguide
• FiRPHASE linear phase filtering for high-definition sound
• Onboard 32-bit DSP with RDNet remote management
• Baltic birch enclosure with multiple rigging options

Model Specifications

• Frequency Response: 45 Hz – 20,000 Hz
• Max SPL: 134 dB
• Coverage: 100° horizontal, 50° vertical
• LF Drivers: 2 x 10” neodymium, 3.0” voice coils
• HF Driver: 1.5” neodymium, 4.0” voice coil
• Amplifier Power: 3200W Peak / 1600W RMS
• DSP: Onboard with RDNet control
• Input/Output: XLR + RDNet Ethercon (IN/OUT)
• Controls: Preset selector, volume, delay
• Cabinet: Baltic birch plywood with steel grille
• Mounting: Array fittings, 2 x M10 (top), 2 x M8 (each side)
• Dimensions: 32.48 x 12.44 x 14.53 in (825 x 316 x 369 mm)
• Weight: 67.0 lb (30.4 kg)
• UPC: Not confirmed

What's In The Box

• RCF TTW 4A unit
• PowerCON cable
• Quick start guide
