RCF TTL 6A | Dual 12in - 2,200 Watts - 139dB | High-Output 3-Way Active Line Source Module

RCF TTL 6A | Dual 12in - 2,200 Watts - 139dB | High-Output 3-Way Active Line Source Module

$9,999.00

Order within [hour] to get by [date_end]

Quantity

Call For More Details

Call us at 123-456-7890

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

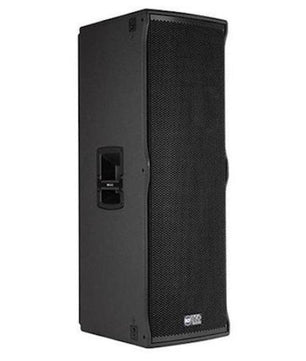

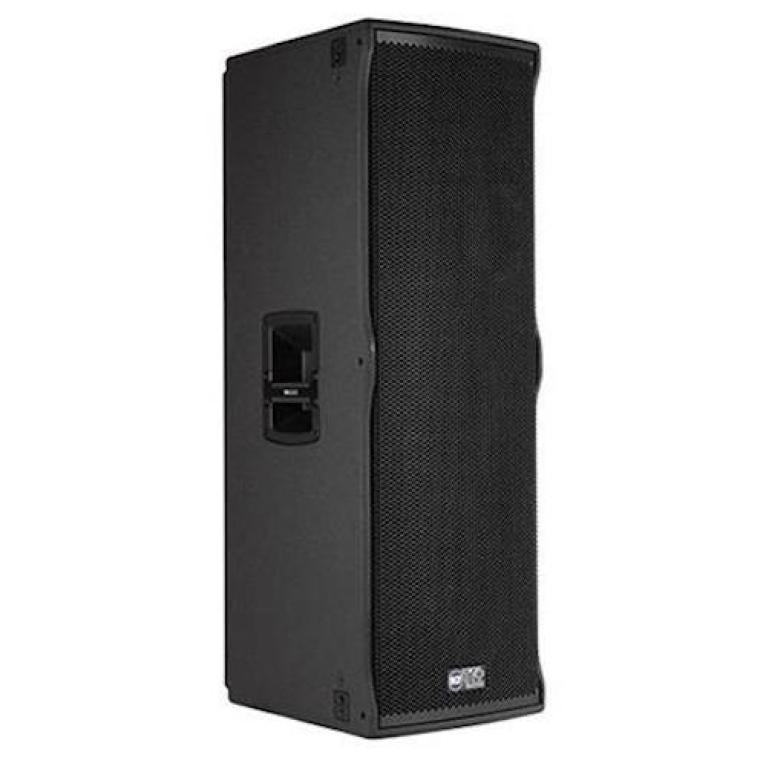

The RCF TTL6-A is a high power, three way, active line source engineered to deliver high fidelity output for use indoors and outdoors, for medium to large spaces.
RCF 3 way active speakers provide all the advantages of line array technology, such as high direct sound, increased range and a uniform level distribution, with additional ease of use. It is the preferred sound set-up for stacked systems and when a wider dispersion is required.

The RCF 3-way active line source is equipped with 2 x 12” low frequencies woofers, 4 x 6.5” midranges and a 3.0” voice coil compression driver with wave-guide for distinctive homogenous directivity. The integration of four channels of digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.

RCF TTL6-A Features:

RDNet remote control
4 x Class D amplifier, 2200 Watt total power
Premium-quality DSP with optimized phase response
1.4" neo compression driver, 3.0" voice coil with a waveguide
4 x 6.0" neo midranges
2 x 12" neo woofers
139 dB max SPL
90°x 30° directivity (+5°, -25°)
Maximum output, perfect audio fidelity
Tour grade cabinet and mechanics

RCF TTL6-A Specifications:

ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:45 Hz ÷ 20 Hz
Max SPL:139 dB
Horizontal coverage angle:90°
Vertical coverage angle:30°
Compression Driver:1.4", 3.0" v.c.
Midrange:4 x 6.0" neo, 2.0" v.c.
Woofer:2 x 12" neo, 3.0" v.c.

INPUT/OUTPUT SECTION
Input connectors:xlr, RDNet Ethercon
Output connectors:xlr, RDNet Ethercon
Input sensitivity:+ 4 dBu

PROCESSOR SECTION
Crossover frequencies:200, 800 Hz
Protections:thermal, rms
Limiter:soft limiter
Controls:Close, Linear, Far, 2x Presets

RCF TTL6-A AMPLIFIER SPECIFICATIONS
Total power:2200 W RMS
   High frequencies:400 W RMS
   Mid frequencies:700 W RMS
   Low frequencies:1100 W RMS
Cooling:convection
Connections:Powercon IN/OUT
CABINET
Cabinet Material:baltic birch plywood
Hardware:Pole mount, integrated
Handles:2 side, 2 back
Pole Mount/Cap:yes
Grille:steel
Color:black

RCF TTL6-A PHYSICAL SPECIFICATIONS
Height:1100/43.31 mm/inch
Width:378/14.88 mm/inch
Depth:468/18.42 mm/inch
Net Weight:53/116.84 kg/lbs
