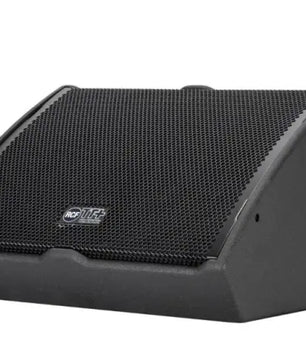

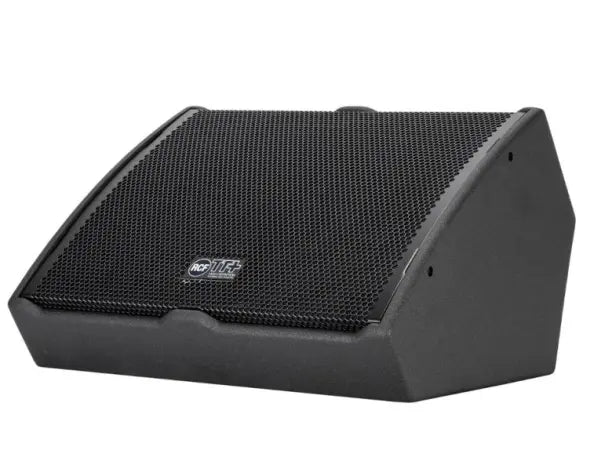

RCF TT 25 CXA | 15in - 133 dB | Coaxial Stage Monitor with RDNet Control

RCF TT 25 CXA | 15in - 133 dB | Coaxial Stage Monitor with RDNet Control

$3,999.00

Order within [hour] to get by [date_end]

Quantity

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

High-Output Coaxial Stage Monitor with DSP and Network Control

The RCF TT 25-CXA is a powerful, low-profile active stage monitor designed for touring professionals who demand transparent sound and maximum control. With a 15" coaxial neodymium driver, 1100W RMS Class D amplifier, and onboard RDNet integration, this wedge delivers studio-quality clarity and unmatched monitoring precision on stage.

RCF TT 25-CXA Competitive Differences

True coaxial 15" neodymium driver with 3.5" voice coil for precise point-source monitoring
Maximum SPL of 133 dB for high-output stage performance
Built-in RDNet control for advanced DSP tuning and remote system management
Flat phase and amplitude response with proprietary FiRPHASE technology
Multifunctional cabinet suitable for monitor or FOH applications
Compact, low-profile Baltic birch enclosure for discreet stage appearance

RCF TT 25-CXA Description

The RCF TT 25-CXA redefines the standard for stage monitoring with its advanced coaxial design, delivering coherent sound with consistent phase alignment and high SPL. Its 15" neodymium woofer and 1.5" neodymium compression driver are mounted coaxially, offering precise point-source performance and improved spatial imaging for performers. Engineered for demanding stage environments, the TT 25-CXA delivers a peak power of 2200W (1100W RMS) and features advanced DSP with selectable presets to optimize performance for different use cases. Onboard RDNet control allows technicians to monitor and adjust multiple parameters in real-time over a network, ensuring perfect integration in complex systems. RCF’s proprietary FiRPHASE technology ensures transparent, phase-accurate audio reproduction, with a natural frequency response that extends from 50 Hz to 20 kHz. Housed in a durable Baltic birch cabinet with steel grille and Powercon I/O, this monitor is road-ready for touring, theater, or rental applications.

TT 25-CXA Features

1100W RMS Class D amplifier (2200W peak)
Max SPL: 133 dB @ 1 meter
15" coaxial neodymium woofer with 3.5" voice coil
1.5" neodymium coaxial compression driver with 2.5" voice coil
60° x 60° constant directivity coverage angle
Onboard RDNet control for DSP, presets, and monitoring
8 user-selectable processing presets
Soft limiter and thermal/HF protection circuitry
Advanced FiRPHASE filtering for flat amplitude and phase response
Multifunctional cabinet design (monitor or FOH use)
Durable Baltic birch plywood cabinet with steel grille
Powercon in/out connectors

TT 25-CXA Specifications

Frequency Response: 50 Hz – 20,000 Hz
Max SPL: 133 dB
Coverage Angle: 60° x 60°
Amplifier Power: 2200W Peak / 1100W RMS
HF Power: 600W Peak / 300W RMS
LF Power: 1600W Peak / 800W RMS
Transducers: 15" coaxial woofer (3.5" v.c.), 1.5" coaxial driver (2.5" v.c.)
Crossover Freq
