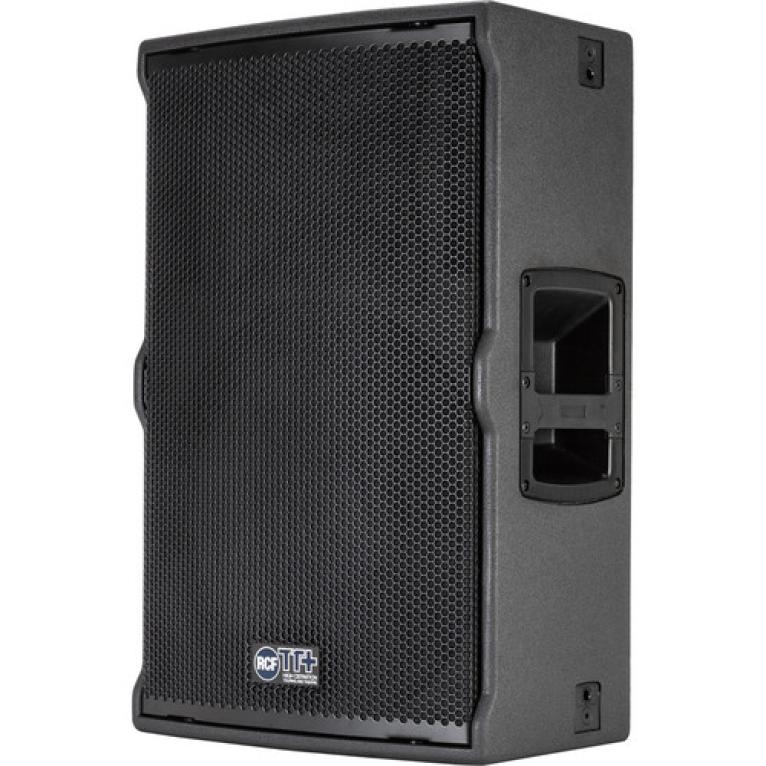

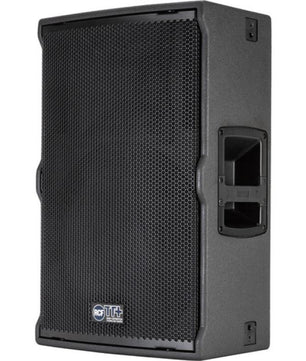

RCF TT25A MKII | 15in - 134 dB | Touring-Grade Powered Speaker with RDNet & FiRPHASE

High-Output 15" Touring-Class Active Speaker for Live Sound

The RCF TT25-A MKII is a premium 2-way active loudspeaker engineered for demanding professional applications, delivering exceptional output, clarity, and networked control. With a powerful 15” neodymium woofer, 2200W peak Class-D amplification, and onboard RDNet integration, it’s ideal for touring, front-of-house, and high-performance installs requiring compact size with uncompromising power.

RCF TT25-A MKII Competitive Differences

• Delivers up to 134 dB SPL from a compact, tour-ready enclosure
• 15” neodymium woofer with 3.5” voice coil for powerful low-end response
• 1.5” exit compression driver with massive 4.0” voice coil for HF precision
• 90° x 60° constant directivity horn, rotatable for horizontal or vertical mounting
• Onboard RDNet control for real-time DSP tuning, monitoring, and configuration
• FiRPHASE processing ensures phase-correct output and superior imaging
• Multifunctional cabinet with flying hardware and pole mount for versatile deployment
• Fanless convection cooling system for silent operation in critical environments

RCF TT25-A MKII Description

The RCF TT25-A MKII is part of RCF’s TT+ Series—trusted by professionals worldwide for touring and high-end installations. This 2-way active speaker houses a 15” neodymium woofer and a 1.5” exit compression driver, both optimized to deliver a frequency response from 50 Hz to 20 kHz with outstanding linearity and punch. It is capable of producing 134 dB SPL, making it ideal for live performances, main PA systems, and stage monitoring in mid- to large-size venues. Its onboard 1100W RMS (2200W peak) Class-D amplifier is tuned specifically for the transducers, offering low distortion, fast transient response, and high efficiency. The system includes RCF’s proprietary RDNet control protocol, enabling remote DSP tuning, monitoring of individual components, and quick system adjustments via Ethernet. Eight user-selectable presets provide fast configuration options for different use cases. RCF's advanced FiRPHASE technology further enhances clarity by delivering true phase-aligned sound across the speaker's coverage area. Constructed from Baltic birch plywood with integrated rigging hardware, pole mount, and ergonomic handles, the TT25-A MKII is built for the road. It’s compact, rugged, and ready for demanding pro-audio environments.

TT25-A MKII Features

• 2200W peak, 1100W RMS Class-D bi-amplification
• 15” neodymium woofer with 3.5” voice coil
• 1.5” exit neodymium compression driver with 4” voice coil
• Max SPL: 134 dB
• 90° x 60° constant directivity horn, rotatable
• FiRPHASE technology for improved phase alignment and imaging
• Onboard RDNet for full DSP control and remote system management
• Fast limiter and thermal/HF protections
• Multifunctional enclosure with 6x fly track points, pole mount, and quick-lock rigging
• Fanless convection cooling
• PowerCON in/out connectors

TT25-A MKII Specifications

• Frequency Response: 50 Hz – 20,000 Hz
• Max SPL @ 1m: 134 dB
• Horizontal Coverage: 90°
• Vertical Coverage: 60°
• Compression Driver: 1.5” exit, 4.0” voice coil, neodymium
• Woofer: 15” neodymium, 3.5” voice coil
• Input Connectors: XLR, RDNet Ethercon
• Output Connectors: XLR, RDNet Ethercon
• Input Sensitivity: -2 dBu / +4 dBu
• Crossover Frequency: 750 Hz
• Protections: Thermal, HF
• Limiter: Fast Limiter
• DSP Controls: 8 selectable presets, RDNet processing
• Total Power: 2200W Peak / 1100W RMS
• HF Power: 600W Peak / 300W RMS
• LF Power: 1600W Peak / 800W RMS
• Cooling: Convection (fanless)
• Cabinet Material: Baltic birch plywood
• Mounting Hardware: 6x fly track, quick lock, pole mount
• Handles: 2 ergonomic side handles
• Grille: Steel
• Color: Black
• Product Dimensions (H x W x D): 26.38 x 16.73 x 16.73 in (670 x 425 x 425 mm)
• Product Weight: 57.32 lbs (26 kg)
• Shipping Dimensions (H x W x D): 28.15 x 18.5 x 18.5 in (715 x 470 x 470 mm)
• Shipping Weight: 72.09 lbs (32.7 kg)
