RCF TT 22A II | 12in - 131 dB | Touring-Grade Speaker with RDNet & FiRPHASE

High-Output 12" Active Touring Speaker with Networked DSP Control

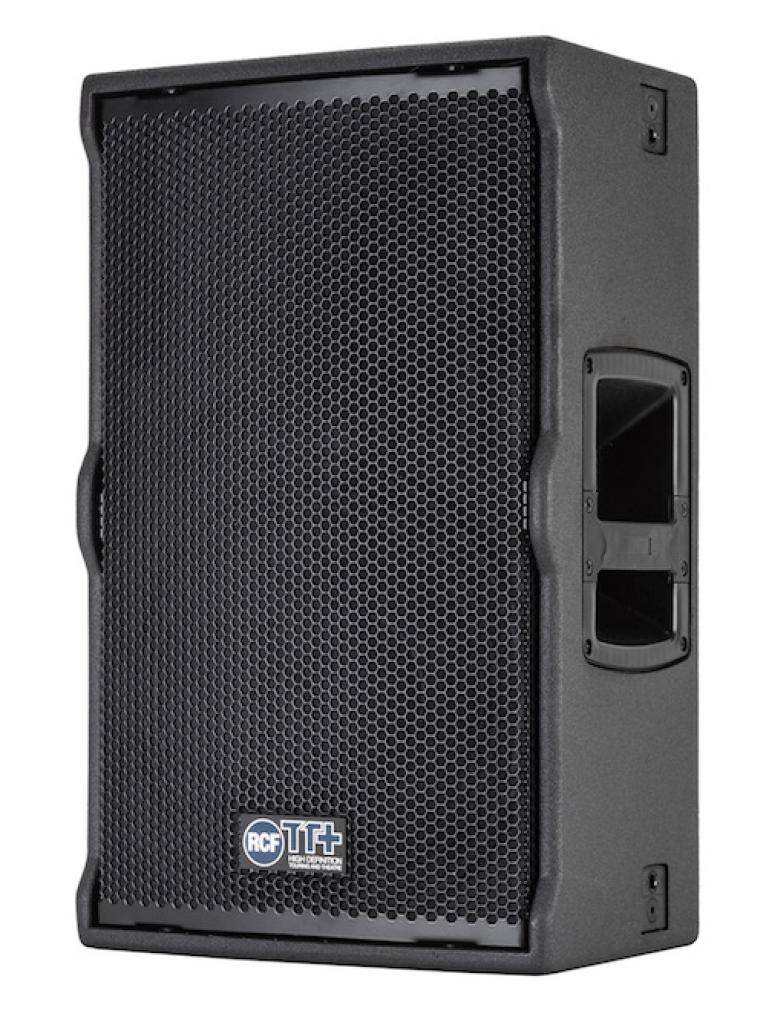

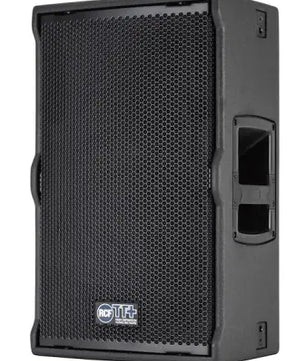

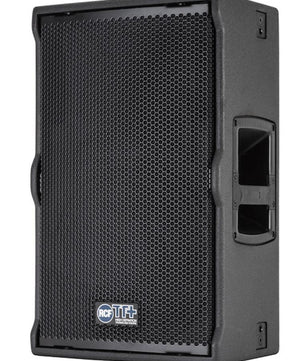

The RCF TT 22-A II is a high-performance 2-way active speaker system designed for professional touring, playback, and monitoring. Equipped with a 12” neodymium woofer, a 1.5” compression driver, 1100W RMS Class-D amplification, and advanced DSP including RDNet and FiRPHASE, it delivers crystal-clear audio and consistent 90° x 60° coverage with a max SPL of 131 dB.

RCF TT 22-A II Competitive Differences

• High-output 12" neodymium woofer with 3.5" voice coil
• 3" voice coil compression driver for extended HF clarity
• Onboard RDNet for advanced DSP control, monitoring, and preset management
• FiRPHASE DSP processing ensures linear phase and low latency
• 90° x 60° constant directivity horn for even dispersion
• Tour-grade Baltic birch plywood cabinet with weather-resistant Polyurea coating
• Quick-lock fly track rigging and pole mount options for flexible deployment

RCF TT 22-A II Description

The RCF TT 22-A II is purpose-built for professional live sound, delivering clarity, efficiency, and control in a compact format. Its 12" neodymium woofer and 1.5" compression driver are powered by a 2200W peak (1100W RMS) Class-D amplifier, offering up to 131 dB SPL and a wide frequency range from 50 Hz to 20 kHz. RCF’s advanced DSP platform includes FiRPHASE filtering for precise time alignment and phase coherence across the entire frequency spectrum. Integrated RDNet connectivity provides full system management, including EQ, delay, limiter, and preset recall—all remotely accessible for quick tuning in complex systems. Constructed with a rugged Baltic birch plywood cabinet and finished with high-resistance Polyurea paint, the TT 22-A II is ideal for mobile rigs and fixed installations. With built-in handles, pole mount capability, and six fly-track points with quick lock pin receptacles, it's engineered for fast setup and reliable operation in any environment.

TT 22-A II Features

• 12" neodymium woofer with 3.5" voice coil
• 1.5" neodymium compression driver with 3" voice coil
• Max SPL: 131 dB
• Frequency response: 50 Hz – 20,000 Hz
• 90° x 60° constant directivity coverage
• FiRPHASE technology for linear phase response and time alignment
• RDNet networked DSP control and monitoring
• Fast limiter and thermal/HF protection
• 8 user-selectable processing presets
• Tour-grade birch cabinet with Polyurea coating
• PowerCON IN/OUT connectors
• Quick lock fly tracks, pole mount socket, and ergonomic side handles

TT 22-A II Specifications

• Frequency Response: 50 Hz – 20,000 Hz
• Max SPL: 131 dB
• Coverage Pattern: 90° H × 60° V
• Compression Driver: 1 × 1.5" neodymium, 3.0" voice coil
• Woofer: 1 × 12" neodymium, 3.5" voice coil
• Amplifier Power: 2200W Peak / 1100W RMS
• HF Power: 600W Peak / 300W RMS
• LF Power: 1600W Peak / 800W RMS
• Crossover Frequency: 800 Hz
• Input Sensitivity: -2 dBu / +4 dBu
• Input/Output Connectors: XLR, RDNet Ethercon
• Protections: Thermal, HF
• Limiter: Fast Limiter
• Controls: 8 user presets, processing options
• Cooling: Convection
• Power Connections: PowerCON IN/OUT
• Cabinet Material: Baltic birch plywood with Polyurea finish
• Hardware: 6 × fly tracks, quick lock pin receptacles, pole mount socket
• Handles: 2 side-mounted
• Grille: Steel
• Color: Black
• Dimensions (H × W × D): 23.62 × 14.37 × 14.92 in (600 × 365 × 379 mm)
• Weight: 49.82 lbs (22.6 kg)
• Shipping Dimensions (H × W × D): 25.79 × 16.14 × 16.54 in (655 × 410 × 420 mm)
• Shipping Weight: 56.22 lbs (25.5 kg)
