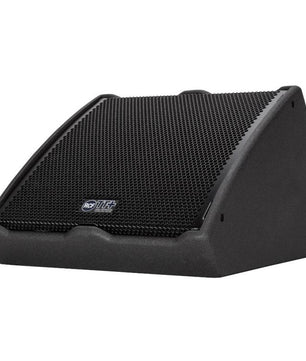

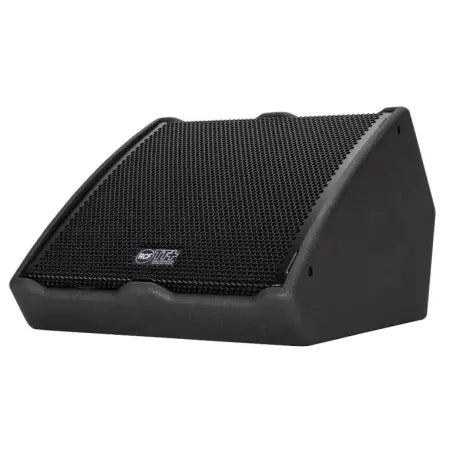

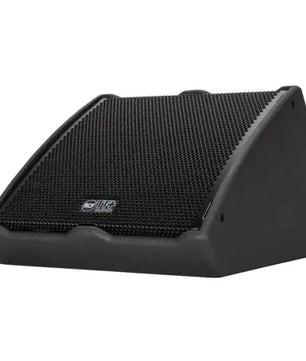

RCF TT20 CXA | Dual 8in - 131dB

This active high output stage monitor is a full range, low-profile enclosure with symmetrical transducers arrangement. The optimized frequency and phase response, consistent coverage of 90° x 70°, and potent acoustic output make the TT20-CXA the professional choice for any stage as a monitor or, thanks to the pole socket, as full range front of house system. With an exceptional transient response and the powerful FiRPHASE processing, the TT CXA series far exceeds the capabilities of conventional stage monitors.

FEATURES:

131 dB SPL Max
1000W RMS, two-way Class-D amplifier
90° x 70° constant directivity coverage
Multifuncional cabinet with symmetrical transducers’ design
FiRPHASE
2 x 8’’ neodymium Woofers, 2.5’’ voice coil
Horn loaded 1.4” neo comp. driver, 3’’ voice coil
RDNet Networked Management

SPECIFICATIONS:

ACOUSTICAL SPECIFICATIONS
Frequency Response:
60 Hz ÷ 20000 Hz
Max SPL @ 1m:
131 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
70°
TRANSDUCERS
Compression Driver:
1 x 1.5'' neo, 3.0'' v.c
Woofer:
2 x 8'' neo, 2.5'' v.c
INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
XLR, RDNet Ethercon
Output connectors:
XLR, RDNet Ethercon
Input sensitivity:
-2 dBu/+4 dBu
PROCESSOR SECTION
Crossover Frequencies:
900 Hz
Protections:
Thermal, HF
Limiter:
Fast Limiter
Controls:
Bypass, Linear/High Pass, Volume, RDnet on boar
RDNet:
Yes
POWER SECTION
Total Power:
2000 W Peak, 1000 W RMS
High frequencies:
600 W Peak, 300 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
PHYSICAL SPECIFICATIONS
Handles:
1 TOP
Color:
Black
SIZE
Height:
318 mm / 12.52 inches
Width:
445 mm / 17.52 inches
Depth:
450 mm / 17.72 inches
Weight:
14 kg / 30.86 lbs
SHIPPING INFORMATION
Package Height:
500 mm / 19.69 inches
Package Width:
490 mm / 19.29 inches
Package Depth:
375 mm / 14.76 inches
Package Weight:
16.4 kg / 36.16 lbs
