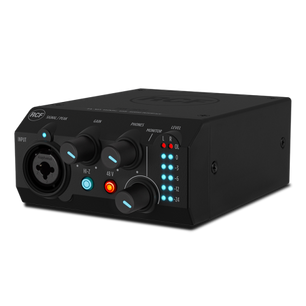

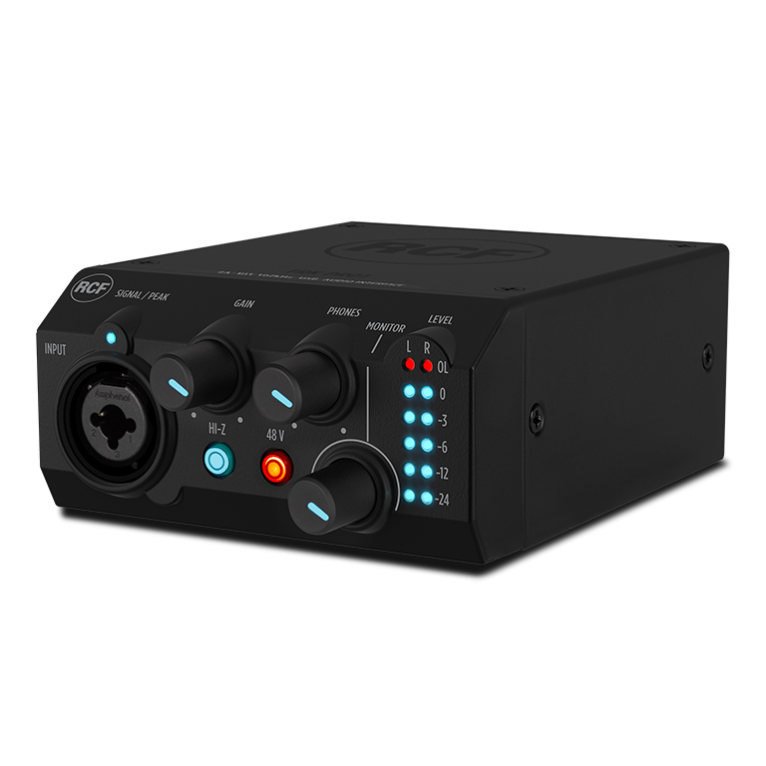

RCF TRK PRO1 | 1X1 USB Audio Interface

RCF TRK PRO1 hardware interface packs a robust and well-thought USB 2.0 studio-in-a-box with all the connectivity required for microphones, musical instruments, or line-level signals to a computer running macOS or Windows. The internal linear preamp circuit allows the connection of 48V phantom-powered microphones and Hi-Z level instruments. The input signal can be routed to DAW (Digital Audio Workstation) at up to 24-bit, 192 kHz resolution. The interface can be connected to an amplifier and speakers, powered monitors, headphones, an analog mixer, or any other analog audio device.

FEATURES:

1 In 2 Out USB 2.0 Bus-Powered Audio Interface
Up to 24-Bit/192kHz
1 Mic and Instrument/line Combo input
High-quality preamp
Balanced Output
Independent headphone volume control
Robust Metal Case
Perfect for RDNet Measures
48V Phantom Power Supply
Independent Gain Control with Signal-Peak LED

SPECIFICATIONS:

Form Factor Tabletop (Rack-Mountable with Included Hardware)
Display 1 x Color Multi-Segment LED Meter (Backlit)
Channels of I/O Digital / USB:
1 Input / 2 Outputs at 44.1/48/88.2/96/176.4/192 kHz
Maximum Sampling Rate 192 kHz / 24-Bit
Number of Microphone Preamps 1 Preamp
Built-In Microphone None
Input Level Adjustment 1 x Knob
Expansion Slots None
Signal Processing
Pad None
High-Pass Filter None
Solo/Mute None
Connectivity

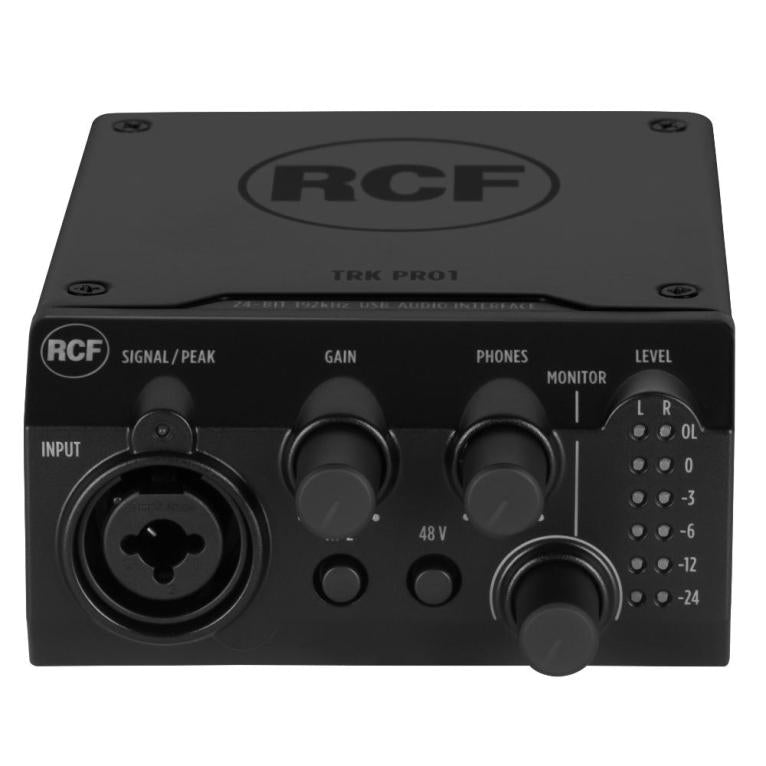

Analog Audio I/O 1 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)
1 x 1/4" TRS Unbalanced Headphone Output (Front Panel)

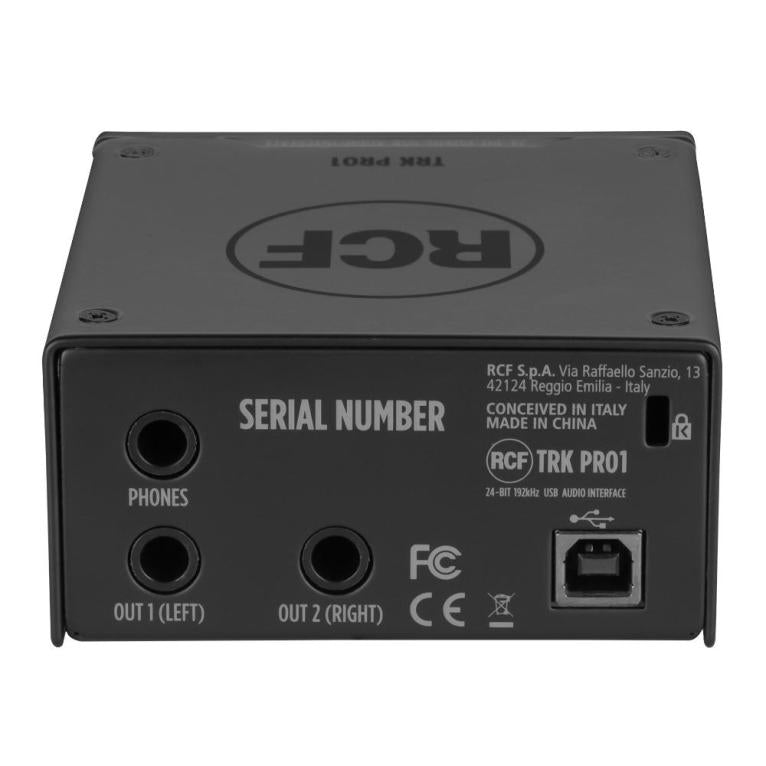

2 x 1/4" TRS Balanced Monitor Output
Phantom Power 48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O None
Host Connection / USB 1 x USB Type-B (Class-Compliant USB 2.0)
USB (Non-Host) None
Sync I/O None
Network I/O None
MIDI I/O None
Wireless Connectivity None
Performance
Frequency Response Combo XLR-1/4" Mic, Line, Hi-Z Inputs:
20 Hz to 20 kHz
Maximum Input Level Combo XLR-1/4" Mic Inputs:
+9 dBu (Balanced)
Combo XLR-1/4" Line Inputs:
+20 dBu (Balanced)
Combo XLR-1/4" Hi-Z Inputs:
+10 dBu (Unbalanced)
Headphone Output Power 1/4": 114 mW into 500 Ohms (Unbalanced)
Impedance Combo XLR-1/4" Mic Inputs:
3.5 Kilohms (Balanced, Mic Level)
Combo XLR-1/4" Line Inputs:
15 Kilohms (Balanced, Line Level)
Combo XLR-1/4" Hi-Z Inputs:
1 Megohm (Unbalanced)
Combo XLR-1/4" Headphone Outputs:
< 10 Ohms (Unbalanced)
Dynamic Range Combo XLR-1/4" Analog/Mic/Line/Hi-Z Inputs:
107 dBu (A-Weighted)
1/4" Analog/Monitor Outputs:
107 dB (A-Weighted)
THD+N Combo XLR-1/4" Mic/Line Inputs:
< 0.0011% (20 Hz to 20 kHz, at -1 dBFS)
Combo XLR-1/4" Hi-Z Inputs:
107 dB (A-Weighted)
1/4" Monitor Outputs:
< 0.0012% (20 Hz to 20 kHz, at -1 dBFS)
EIN Combo XLR-1/4" Mic Inputs:
< -120 dB
Digital Audio
Sample Rates USB Output:
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (AD/DA Conversion, Input/Output, Mac and PC, Playback, Record)
Sample Rate Conversion None
Bit Depths 16 / 24-Bit (AD/DA Conversion, Recording, Playback)
Latency Zero-Latency Direct Monitoring
Sync Sources None
Audio Storage & Playback
Memory Card Slot None
Compatibility
OS Compatibility Windows 10 or Later
macOS
iOS
Android
OS Compatibility Windows
*As of December, 2021: check with manufacturer for the most up-to-date compatibility
Included Software Cubase LE
Compatible Software (Not Included) Any Core Audio (Mac) Compliant Software
Included Plug-Ins Reverb & Room:
REmatrix FIRST
Overloud BReverb 2 Essential
Guitar & Bass:
Overloud TH-U Essential
Supported Drivers/API & Plug-Ins macOS Class-Compliant (No Driver Needed)
Windows Driver Downloadable from Manufacturer
Mobile Device Compatibility Android Smartphone
Android Tablet
iPad
iPhone
Required Hardware USB Port
Power
Power Requirements USB Bus Power
Physical
Anti-Theft Features Kensington Security Slot
Certifications CE, as per Manufacturer
Dimensions 4.95 x 3.6 x 1.81" / 12.57 x 9.1 x 4.6 cm
Weight 1.1 lb / 0.5 kg
