RCF SUB 708-AS MK3 | 18in - 133dB

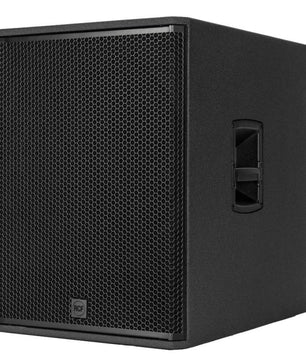

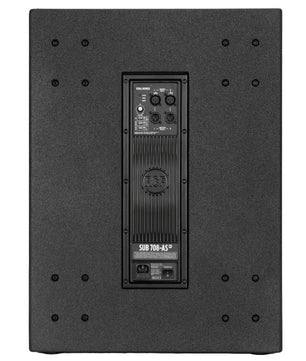

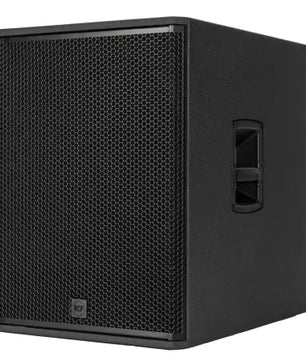

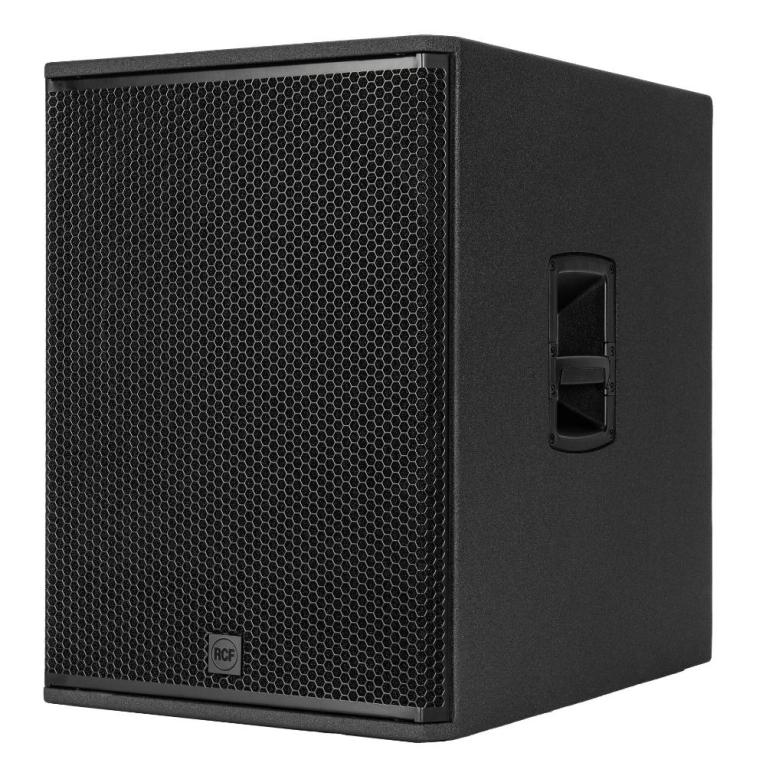

The SUB 708-AS mk3 is a portable 18" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 133 dB with exceptional headroom. Designed as the ideal complement for 8" or 10" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 708-AS MK3 is perfect for small to mid-sized venues and portable applications.

FEATURES:

1400 Watt Class-D Amplifier
18” Woofer, bass reflex housing
Stereo Crossover
Switchable Crossover Frequencies
Polarity-reverse switch
Electronic equalization, soft limiter and protection
Stereo XLR input, Stereo XLR signal output
Bass Motion Control excursion management

SPECIFICATIONS:

ACOUSTICAL SPECIFICATIONS
Frequency Response
35 Hz ÷ 120 Hz
Max SPL @ 1m
133 dB
TRANSDUCERS
Woofer
1 x 18'', 3.0'' v.c
INPUT/OUTPUT SECTION
Input signal
bal/unbal
Input connectors
XLR
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
PROCESSOR SECTION
Hi-Pass Frequencies
110 Hz
Low-Pass Frequencies
80 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, EQ, Phase, Xover
POWER SECTION
Total Power
1400 W Peak, 700 W RMS
Low frequencies
1400 W Peak, 700 W RMS
Cooling
Convection
Connections
VDE
STANDARD COMPLIANCE
Safety agency
CE compliant
PHYSICAL SPECIFICATIONS
Handles
One each side
Pole mount/Cap
Yes
Color
Black
SIZE
Height
693 mm / 27.28 inches
Width
505 mm / 19.88 inches
Depth
685 mm / 26.97 inches
Weight
38.8 kg / 85.54 lbs
SHIPPING INFORMATION
Package Height
735 mm / 28.94 inches
Package Width
565 mm / 22.24 inches
Package Depth
745 mm / 29.33 inches
Package Weight
43.8 kg / 96.56 lbs
